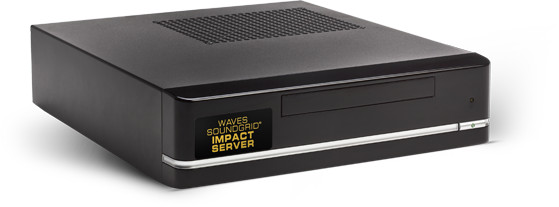

Waves WSGSI
SoundGrid Impact Server

OUR PART #  WSGSI

Our Price: $683.20
List Price: $700.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Ideal for any live sound engineers on-the-go, Waves Impact Server for SoundGrid® systems is small enough to fit into your carry-on luggage and packs increased processing power.

Note: Waves MultiRack software must be purchased separately.

Waves WSGSI Specifications:

  • System Requirements
    • RAM: 2GB
    • Motherboard: Gigabyte GA-H61N-USB3
    • LAN Card: Realtek RTL8111E
    • 6 month warranty
  • Server Benchmarks (The benchmarks below are for general reference, and illustrate how many plugin Racks and plugins can be run on this particular server. The following plugins were used for these tests: C4, SSL E-Channel, H-Delay, and TrueVerb. Each Rack was fully loaded with a specific plugin until maximum load was reached. WSG-Y16 cards were used as audio interfaces in these tests.):
    • Sample Rate
      • Test 1: 48kHz
      • Test 2: 96kHz
    • Latency (roundtrip total):
      • Test 1: 56* samples / 1.2ms
      • Test 2: 112* samples / 1.2ms
    • SSL Channel Mono:
      • Test 1: 321 instances
      • Test 2: 176 instances
    • H-Delay Mono:
      • Test 1: 256 instances
      • Test 2: 104 instances
    • TrueVerb Mono:
      • Test 1: 96 instances
      • Test 2: 48 instances
    • C4 Mono:
      • Test 1: 232 instances
      • Test 2: 120 instances
    • Dimensions:
      • Length: 10.6" (26.9cm)
      • Height: 3" (7.62 cm)
      • Depth: 13" (33 cm)
      • Device Weight: 7.1 lbs (3.2 kg)
      • Package Weight: 12 lbs (5.4 kg)

Waves WSGSI
SoundGrid Impact Server

OUR PART #  WSGSI

Product Information:

Ideal for any live sound engineers on-the-go, Waves Impact Server for SoundGrid® systems is small enough to fit into your carry-on luggage and packs increased processing power.

Note: Waves MultiRack software must be purchased separately.

Waves WSGSI Specifications:

  • System Requirements
    • RAM: 2GB
    • Motherboard: Gigabyte GA-H61N-USB3
    • LAN Card: Realtek RTL8111E
    • 6 month warranty
  • Server Benchmarks (The benchmarks below are for general reference, and illustrate how many plugin Racks and plugins can be run on this particular server. The following plugins were used for these tests: C4, SSL E-Channel, H-Delay, and TrueVerb. Each Rack was fully loaded with a specific plugin until maximum load was reached. WSG-Y16 cards were used as audio interfaces in these tests.):
    • Sample Rate
      • Test 1: 48kHz
      • Test 2: 96kHz
    • Latency (roundtrip total):
      • Test 1: 56* samples / 1.2ms
      • Test 2: 112* samples / 1.2ms
    • SSL Channel Mono:
      • Test 1: 321 instances
      • Test 2: 176 instances
    • H-Delay Mono:
      • Test 1: 256 instances
      • Test 2: 104 instances
    • TrueVerb Mono:
      • Test 1: 96 instances
      • Test 2: 48 instances
    • C4 Mono:
      • Test 1: 232 instances
      • Test 2: 120 instances
    • Dimensions:
      • Length: 10.6" (26.9cm)
      • Height: 3" (7.62 cm)
      • Depth: 13" (33 cm)
      • Device Weight: 7.1 lbs (3.2 kg)
      • Package Weight: 12 lbs (5.4 kg)
