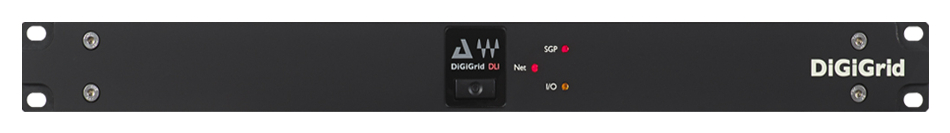

DiGiGrid DLI iGrid Networking Hub for Pro Tools Systems and SoundGrid

The DiGiGrid DLI is a networking hub that bridges Pro Tools systems and SoundGrid. With two DigiLink ports delivering up to 64 inputs and outputs, the DLI lets you get more from your existing setup. DLI works in one of two modes – I/O and SGP – which offer different capabilities to meet the needs of your application.

In I/O Mode, the DLI bridges Pro Tools systems with SoundGrid I/Os and DSP servers. In this mode, the HD/HDX or HD Native system remains your playback engine, while the DLI appears as individual I/O units from which you can expand your studio by connecting additoinal SoundGrid I/Os and by offloading your plugin processing to additional SoundGrid servers.

In SGP Mode, the DLI enables you to control a variety of DigiLink-enabled I/Os, bridge your favorite DAW (Logic, Cubase, Nuendo, Ableton, Pro Tools Native etc.) with SoundGrid applications and ASIO/Core AUdio drivers, and offload your plugin processing to a SoundGrid Server.

DiGiGrid DLI comes with the complete SoundGrid Studio System software, which includes the SoundGrid Studio application, StudioRack, and the eMotion ST mixer. With full plugin integration inside your DAW, you can run up to hundreds of SoundGrid-compatible Waves and third-party plugins at an incredibly low latency of only 0.8 milliseconds.

DiGiGrid DLI Includes:

• DiGiGrid DLI unit
  • Power Cord: 1 US, 1 EU, 1 UK
  • Ethernet Cable: CAT5e (2 meters)
  • Registration Card
• SoundGrid Studio System software:
  • SoundGrid Studio Application
  • StudioRack
  • eMotion ST mixer

DiGiGrid DLI Impact Combo Features:

• Get Pro Tools HD features with the Avid I/O you already own
• Run up to hundreds of plugins in low latency
• Connect multiple I/Os, servers, and host computerswith Ethernet cables
• Dual DigiLink ports providing up to 64 digital inputs/outputs
• Bridges Pro Tools HD/HDX and HD Native systems with SoundGrid
• Enables convenient and seamless use of a variety of DigiLink-compliant I/O devices with any native DAW
• Compliant with the SoundGrid Studio ASIO/Core Audio driver
• Compatible with MultiRack
• Connects via a single Ethernet cable (CAT5e/CAT6)

DiGiGrid DLI Specifications:

• 2 DigiLink ports; 64 channels in either SGP or I/O mode (32 channels per port). Compatible with the following DigiLink-enabled I/Os: Digi192, Digi96, HD Omni, HD I/O, Apogee Symphony I/O, Lynx Aurora 8, Lynx Aurora 16
  • I/O Mode: DLI acts as an interface connected to HD Core, HD Accel, HDX, or HD Native cards; supports Pro Tools TDM 10.x and 11.x
  • SGP Mode: DLI acts as a controller for DigiLink-enabled I/Os
• 2 Operation Mode Switches
• 2 SoundGrid RJ45 Ethernet ports
• 1 AC Input
• 1 Word Clock/Loop Sync I/O
• 1 USB Port
• 1U Rackmount
• Supported Sample Rates: 44.1, 48, 88.2, and 96 kHz (176.4 and 192 kHz will be supported in the future)
• Recovery Switch
• Clocking Options: Word Clock/Loop Sync, SoundGrid (Sync over Ethernet), or DigiLink
