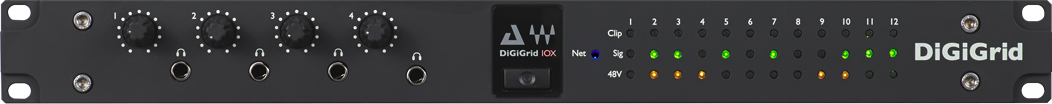

DiGiGrid IOX
12x6 I/O Interface with 4 Headphone Outputs

OUR PART #:  IOX

DiGiGrid IOX is a high-count I/O interface featuring 12 mic/line inputs with broadcast/studio-quality preamps, 6 line outputs.
Learn More
Our Price: $1,529.00
List Price: $1,799.00
You save 15%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DiGiGrid IOX
Qty:
In Stock

Similar Products

DiGiGrid IOX is a high-count I/O interface featuring 12 mic/line inputs with broadcast/studio-quality preamps, 6 line outputs. and 4 headphone outputs to allow independent mixes for each musician. With IOX and a dedicated SoundGrid DSP server, you can run up to hundreds of SoundGrid-compatible Waves and third-party plugins, all fully integrated within your DAW of choice.

DiGiGrid IOX Features:

  • 12 mic/line inputs with broadcast/studio-quality preamps
  • ASIO- and Core Audio-compliant audio I/O
  • 6 line outputs, 4 headphone outputs
  • Connects via a single Ethernet cable (Cat 5e/Cat 6)
  • Quick-view front panel metering
  • High-definition 192 kHz ADC conversion

DiGiGrid IOX Specifications:

  • General
    • 1U rack-mounted (standard 19” rack-mount wide, 4U high, 380-mm deep excluding connectors)
    • Supported sample rates: 44.1, 48, 88.2 and 96 kHz (176.4 and 192 kHz will be supported in the future)
    • 12 channel mic/line inputs (on XLR/TRS combo)
    • 6 channel line outputs
    • Word Clock I/O
    • 2 SoundGrid ports (RJ45s)
    • Reset switch
    • 4 headphone outputs with analog level knobs; range: Off to +15 dB
    • Clock: Word Clock input, SoundGrid (SoE), Internal
    • 1 AC input
    • Multiple broadcast level format settings (jumpers on all analog I/Os)
  • Inputs
    • Input Impedance:
      • Mic: 2K5
      • Line: 8K0 Ohms
    • Gain Range:
      • Mic: 0 dB to +52.5 dB in 7.5-dB steps
      • Line: -10 dB to +42.5 dB in 7.5-dB steps
    • Fine control provides an additional 0dB to 7dB in 0.5-dB steps
    • Maximum Input Level:
    • Mic: +26 dBu / Line: +36 dBu
    • Mic Equivalent Input Noise: > -126 dB (150 Ohm source, gain +59.5 dB)
    • Harmonic Distortion: Typically < 0.01% @ unity gain, -10dB input @ 1 kHz
    • Frequency Response: +/-0.5 dB (20 Hz to 20 kHz)
    • Channel Separation: Better than 90 dB (40 Hz to 15 kHz)
  • Outputs
    • Maximum Output Level: +22 dBu
    • Residual Output Noise: <90 dB (20 Hz to 20 kHz)
    • Frequency Response: +/-0.5 dB (20 Hz to 20 kHz)
    • Output Impedance: 50 Ohms
    • Channel Separation: Better than 90 dB (40 Hz to 15 kHz)
    • Harmonic Distortion: Typically < 0.01% @ unity gain, -10dB input @ 1 kHz
