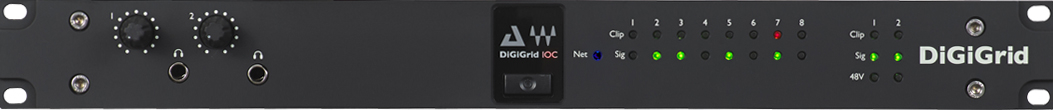

DiGiGrid IOC
Control Room I/O for SoundGrid Network

OUR PART #:  IOC

The DiGiGrid IOC audio interface offers a variety of connectivity options, including 2 mic/line inputs with broadcast-grade preamps, 8 line inputs/outputs...
Learn More
Our Price: $1,699.00
List Price: $1,999.00
You save 15%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DiGiGrid IOC
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DiGiGrid IOC audio interface offers a variety of connectivity options, including 2 mic/line inputs with broadcast-grade preamps, 8 line inputs/outputs, and 16 AES and ADAT inputs/outputs, plus two powerful headphone outputs. With the IOC and a dedicated SoundGrid DSP server on your network you will be able to run up to hundreds of SoundGrid-compatible Waves and third-party plugins, all fully integrated within your DAW of choice. Plus the IOC into your SoundGrid network with a single Ethernet cable and take advantage of the real-time tracking, mixing and monitoring, and extremely low latency of 0.8 milliseconds.

DiGiGrid IOC Includes:

  • eMotion ST Mixer
  • SoundGrid Studio Application
  • StudioRack

DiGiGrid IOC Features:

  • ASIO- and Core Audio-compliant audio I/O for Native DAWs
  • 2 mic/line inputs with broadcast-grade preamps and 8 line inputs
  • 8 line outputs and 2 headphone outputs
  • 16 AES ins/outs, ADAT ins/outs
  • Connects via a single Ethernet cable (Cat 5e/Cat 6)
  • Quick-view front panel metering
  • High-definition 192 kHz ADC conversion

DiGiGrid IOC Specifications:

  • General
    • 8x line inputs (25-pin DB25)
    • 8x line outputs (25-pin DB25)
    • 16x AES/EBU I/O (25-pin DB25)
    • 1x ADAT I/O (8 channels @ 48kHz). (4 channels @ 96kHz and 2 channels @ 192 kHz will be supported in the future)
    • 2x Mic inputs (XLR/TRS combo)
    • 2x SoundGrid RJ45 Ethernet ports
    • 1x Word clock I/O
    • 1x AC input
    • 2x headphone outputs with analog level knobs
    • 1U rack-mounted
    • Supported sample rates: 44.1, 48, 88.2 and 96 kHz (176.4 and 192 kHz will be supported in the future)
    • Clock Synchronization via Word Clock input, AES/EBU, SoundGrid (SoE), Internal
    • Reset switch
    • Multiple broadcast level format settings (jumpers on all analog I/Os)
  • Inputs
    • Mic input impedance: 2K5 Ohms
    • Phantom power: 48V
    • Line input impedance: 8K0 Ohms
    • Mic gain range:0 dB to +52.5 dB in 7.5-dB steps. Fine control provides an additional 0dB to 7dB in 0.5-dB steps
    • Mic maximum input level: +26dB
    • Line maximum input level: +36dB
    • Mic equivalent input noise: >-126dB (150 Ohm source, Gain +59.5dB)
    • Frequency response: +/-0.5dB 20Hz to 20kHz
    • Channel separation: Better than 90dB (40Hz to 15kHz)
  • Outputs
    • Maximum line output level: +22dBu
    • Residual line output noise:<90dB (20Hz to 20kHz)
    • Frequency Response: +/-0.5dB (20Hz to 20kHz)
    • Line output impedance: 50 Ohms
    • Channel separation: Better than 90dB (40Hz to 15kHz)
    • Harmonic Distortion: Typically <0.01% @ unity gain, -10dB input @ 1kHz
