DiGiGrid IOS
8x8 Audio Interface with SoundGrid DSP Server

OUR PART #:  IOS

The DiGiGrid IOS is the most comprehensive all-in-one solution for Native DAW users, ideal for both professional and personal production studios.
Learn More
Our Price: $2,294.00
List Price: $2,699.00
You save 15%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DiGiGrid IOS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

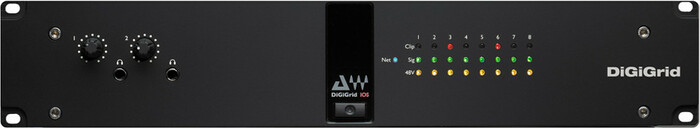

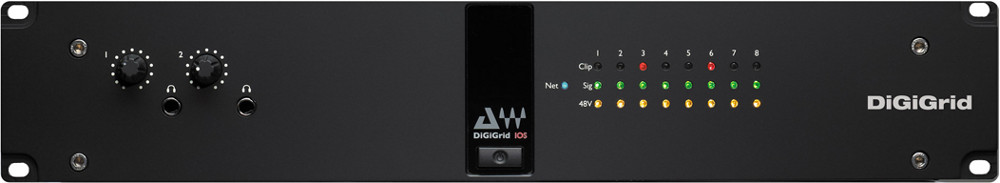

The DiGiGrid IOS is the most comprehensive all-in-one solution for Native DAW users, ideal for both professional and personal production studios. With a built-in SoundGrid DSP server for plugin processing and a network switch, IOS features 8 mic/line inputs with broadcast-grade preamps, 8 line outputs, 2 headphone outputs, MIDI I/O, and S/PDIF and AES outputs.

Need more I/Os? A single Cat 5e/Cat 6 Ethernet cable is all you need to connect additional SoundGrid components to your Network. By integrating with the SoundGrid studio system, the IOS lets you mix and monitor in real time using hundreds of your favorite SoundGrid-compatible Waves and third-party plugins, with super-low latency of only 0.8 milliseconds.

Waves IOS Features:

  • ASIO- and Core Audio-compliant audio interface
  • Built-in SoundGrid DSP server
  • 8 mic/line inputs, 8 line outputs, 2 headphone outputs
  • MIDI, S/PDIF and AES/EBU connectors
  • Connects via a single Ethernet cable (Cat 5e/Cat 6)
  • Quick-view front panel metering
  • High-definition 192 kHz ADC conversion

Waves IOS Specifications:

  • Internal SoundGrid DSP Server (Intel┬« i3)
  • 8x channel mic/line inputs (XLR/TRS combo)
  • 8x channel line outputs (TRS or 25-pin D-con)
  • 4x SoundGrid RJ45 Ethernet ports
  • 2x channel AES/EBU or S/PDIF (switchable)
  • Sample rate conversion on AES input
  • 2x headphone outputs with analog level knobs
  • 1x AC input
  • 1x USB port
  • 2U rack-mounted
  • Supported sample rates: 44.1, 48, 88.2, 96, 176.4*, 192* kHz
  • Word clock I/O
  • Clock synchronization via Word Clock input, AES/EBU, SPDIF, SoundGrid (SoE), Internal
  • MIDI I/O
  • Reset switch
  • Multiple broadcast level format settings (jumpers on all analog I/Os)

Inputs

  • Mic input impedance: 2K5 Ohms
  • Phantom power: 48V
  • Line input impedance: 8K0 Ohms
  • Mic gain range: -20 to +60dB in 0.5dB steps
  • Line gain range: -30 to +50dB in 0.5dB steps
  • Mic maximum input level: +26dB
  • Line maximum input level: +36dB
  • Mic equivalent input noise: >-126dB (150 Ohm source, Gain +60dB)
  • Harmonic distortion:
  • Channel separation: Better than 90dB (40Hz to 15kHz)

Outputs

  • Maximum line output level: +22dBu
  • Residual line output noise: Frequency Response: +/-0.5dB 20Hz to 20kHz
  • Line output impedance: 50 Ohms
  • Channel separation: Better than 90dB (40Hz to 15kHz)
