Ensemble Designs BEM-4
BrightEye Mitto 2 Pro Scan Converter

OUR PART #:  BEM-4

Introducing BrightEye Mitto Pro 2 (model BEM-4)- the newest member of the award winning scan converter family. Top quality, best user interface, great price.
Learn More
Our Price: $1,306.25
List Price: $1,375.00
You save 5%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Ensemble Designs BEM-4
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Introducing BrightEye Mitto Pro 2 (model BEM-4)- the newest member of the award winning scan converter family. Top quality, best user interface, great price.

The BrightEye Mitto™ family of high performance scan converters provide a new way to take just about any source to 3G, HD or SD SDI video. Computer video can now be used for the most demanding applications including broadcast, high-end military, medical, classroom, church and corporate. All Mitto units accept VGA, DVI and HDMI input signals from PC and Mac computers.

Five different BrightEye Mitto units, each with varying types of outputs and capabilities, allow you to choose the best one for your particular video application. All BrightEye Mitto units convert YouTube, Skype video, weather radar, emails and maps to video. Just a small part of the screen, such as a Skype window, can be selected with a mouse and converted to full screen HD. Ensemble uses the latest technology in its proprietary upconversion and filtering and that means you have the best looking video. Compare Mitto to any other scan converter and see the difference!

Adjusting video levels, output timing, audio delay, and mixing audio channels is so easy with BrightEye control software. From your desktop you have complete and intuitive control of timing, video format, and video level adjustments. You can easily time BrightEye Mitto into a video production switcher or router.

A superior quality scan converter, BrightEye Mitto has the advantage of proprietary scaling technology and exclusive multi-tap filtering. Even a small part of the computer screen, such as a YouTube video, will be upconverted to full screen HD. The region selected for output determines if Mitto acts as an upconverter or downconverter. The filters automatically adjust in accordance with the conversion being performed. The result is that the output looks as good, or better, than the original and passes the most stringent testing.

BrightEye PC/Mac software runs overtop of any video, website or software. The Selection Tool shows up as a colored box around your selection and shows the portion of the video that will be output from BrightEye Mitto.

BrightEye PC and BrightEye Mac software let you simply use your mouse to click and drag over the specific portion of computer video that you want to output. The perspective of seeing the whole screen gives you the ability to choose exactly which portion of the video you want to output. It’s easy to output the entire screen or just a selected portion.

Resize the selection window by clicking and dragging with your mouse. Mitto’s video output automatically goes to pillarbox or letterbox as needed. Mitto automatically maintains perfect aspect ratio.

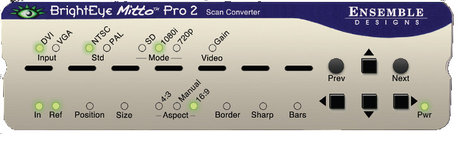

The intuitive front panel interface makes it easy to choose the desired video output format. The genlock reference input allows the video outputs to be timed to house.

The audio input accepts analog audio. AES is optional. Audio is embedded into the SDI outputs which is required for many high end applications. Audio delay controls let you adjust the audio with respect to video for perfect lip sync, which is crucial when using Skype video in a production environment.

Ensemble Designs BEM-4 Features:

  • High Performance Scan Converter for PC and Mac
  • Best way to bring YouTube™, Skype™, Weather Radar, Maps and Emails to Video for Production Use
  • Superior Quality– Proprietary Scaling and Filtering System Provides Maximum Detail, Flicker-Free Video Output
  • Use with all Types of Macs and PCs including Laptops, iPhone® and iPad™
  • Intuitive Front Panel Controls
  • Output Choices: 1.5 and 3 Gb/s HD, SD SDI, Composite Video, Fiber Optic
  • DVI I/O, VGA and HDMI Support with an Adapter
  • Auto senses DVI or VGA
  • Choose a Mitto with Adjustable Audio Delay for Skype and Broadcast Applications
  • Use a Mouse to Select the Part of the Video You Wantto Output
  • Easily Adjust Video Parameters and Select Video Output Format
  • Genlock and Time to House Reference, Fully Timeable
  • Rackmountable
  • Memory Presets for Your Favorite Settings
  • 5-Year Warranty and Free Software Upgrades

Ensemble Designs BEM-4 Specifications:

  • Computer Input:
    • Number One
    • Type: DVI (Supports HDMI or VGA with adapter)
    • Connector: DVI-I
    • Resolution: Up to 1920 × 1200
  • Reference Input:
    • Number One, BNC
    • Type: 1 V P-P Composite Video PAL, NTSC, Tri-Level Sync
    • Impedance: 75 O
    • Return Loss: >40 dB
      • Note: When no reference is provided, Mitto runs from an internal "sync gen grade" precision frequency reference.
  • Analog Audio Inputs:
    • Number One stereo pair
    • Connector: 1/8” mini jack
    • Impedance: >15K O
    • Max Input Level: 24 dBu
    • Quantization: 24 bits, 128 x oversampled
    • Sample Rate: 48 KHz
    • Reference Level: -10 dBu or +4 dBu
    • Frequency Response: ±0.1 dB, 20 Hz to 20 KHz
    • Crosstalk: <106 dB
    • Dynamic Range: >106 dB
  • AES/EBU Digital Inputs (BEM-1, 1F, 2, 2F):
    • Number Two (four channels)
    • Type: AES3id, S/PDIF
    • Connector: 1/8” mini jack
    • Bit Depth: 20 and 24 Bit
    • Sample Rate: 30 KHz to 192 KHz (Sample Rate Converted Internally to 48 kHz)
  • Serial Digital Output:
    • Number Two, BNC. One for BEM-1F and 2F
    • Signal Type: 270 Mb/s SD SDI, SMPTE 259M 1.485 Gb/s HD SDI, SMPTE 274M, 292M, 296M 2.97 Gb/s HD SDI (BEM-1 and BEM-1F only) SMPTE 424M, 425M
    • Processing: 16 bit processing, 12 and 14 bit upconversion
    • Delay: Adjustable from 16 msec to 40 msec
      • Note: Output is fully timeable with respect to the reference input.
  • Audio Embedded:
    • Impedance: 75 O
    • Return Loss: >15 dB to 1.485 GHz, >10 dB to 2.97 GHz
    • Output DC :None (AC coupled)
  • Standards Supported:
    • 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz
    • 720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz
    • 525i, 625i (SMPTE 259M)
    • 1080p (SMPTE 424M, 425M), 50, 59.94, 60, Level A (BEM-1 and BEM-1F only)
  • Optical Output (BEM-1F, 2F):
    • Number One, LC/UPC
    • Type Follows SDI configuration
    • Wavelength: 1310 nm (non-CWDM) Wavelengths 170 nm –1610 nm at 20 nm CWDM spacing available.
    • Power: -7 dBm
    • Max Cable Length: 20 km
    • Fiber Type: Single Mode Multi-mode compatible with attenuation at transmit end
  • Analog Video Output:
    • Number One, BNC
    • Type: Composite PAL or NTSC (when SD is selected on the SDI output)
    • Return Loss: >40 dB
    • Output DC: <100 mV
  • Computer Monitor Output:
    • Number One, looping
    • Type: DVI (Supports HDMI or VGA with adapter)
    • Connector: DVI-I
    • Format: Follows input
  • Control (BEM-1, 1F, 2, 2F):
    • Number One
    • Connector: 9 pin D
    • Type: RS-232, GPI
  • General Specifications:
    • Size: 5.63” W x 0.8” H x 5.98” D (143 mm x 21 mm x 152 mm) including connectors and flange connectors
    • Weight: 1 lb 6 oz
    • Power: 12 volts, 12 watts (100-230 VAC modular power supply)
    • Temperature Range: 0 to 40° C ambient (all specs met)
    • Relative Humidity: 0 to 95° non-condensing
    • Altitude: 0 to 10,000 ft.
