Enttec 70037
RDS4 RDM DMX Isolated Splitters

OUR PART #:  70037

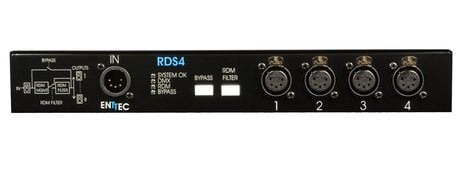

The 70037 from ENNTEC is their RDS4 DMX/RDM compatible 4 port fully isolated splitter.
Learn More
Our Price: $418.00
List Price: $440.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Enttec 70037
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The 70037 from ENNTEC is their RDS4 DMX/RDM compatible 4 port fully isolated splitter. The RDS4 is a splitter and isolator of DMX signals that incorporates features needed when Remote Device Management (RDM) signals are traveling through the network. It allows users to build an RDM (E1.20-2006) compliant network DMX. Current DMX splitters will not allow RDM enabled devices to function properly, the RDS4 now solves this problem while allowing your RDM devices to talk back to a controller.

Applications:

  • Theatres
  • Touring
  • Architectural
  • Theme Park
  • Trade Show

ENNTEC 70037 Features:

  • 1 DMX input and 4 DMX outputs. Normal mode: splitteractively repeats RDM traffic bidirectionally while level information goes fromcontroller to DMX devices as usual
  • Filter Mode: Single button-press allows all RDMtraffic to be filtered out, for legacy devices which might flicker if they sawthe messages on the line
  • Backup Mode: Another button bypasses intelligent RDMfunctionality completely to work as a traditional DMX splitter would
  • Fully compliant with ESTA and USITT standards forDMX512A with RDM and RDM Standard ANSI E1.20 - 2006*
  • Internal autoranging power supply

NOTE: Not all controllers or fixtures which purport to have “Remote Device Management” are compliant to the Standard. Be sure the ones you want to use are, before engaging RDM mode on this splitter.

ENNTEC 70037 Specifications:

  • RSD4 support one universe of 512 output addresses
  • All ports are isolated up to 1500V
  • Input port is 5-pin XLR Male
  • Output ports are 5-pin XLR Female
  • Break length time: replicates input signal to within50ms
  • Refresh cycle : replicates input signal
  • CE, FCC certified
  • Power Requirements: 90-260vac, 50-60Hz, 20w
  • Weight: 1.65 lbs (0.75 kg)
  • Shipped Weight: 3.19 lbs (1.45 kg)
  • Width: 11.82” (300mm)
  • Height: 1.75” (44.45mm)
  • Depth: 4.53” (115mm)
  • Rack: 1RU high (but too narrow to be easily mountable)
  • Operating Environment: 0°-50°C in non-condensing environment
