Interactive Technologies SS-305-ALM SceneStation 3 Stand-alone Architectural DMX Controller, Light Almond

OUR PART #: SS-305-ALM MFR #: SS-305-ALM

Copied to clipboard

Introducing a whole new way to think about Architectural Preset Stations - The SS-305-ALM, a wireless SceneStation 3 that comes in a light almond finish.. ...Read more

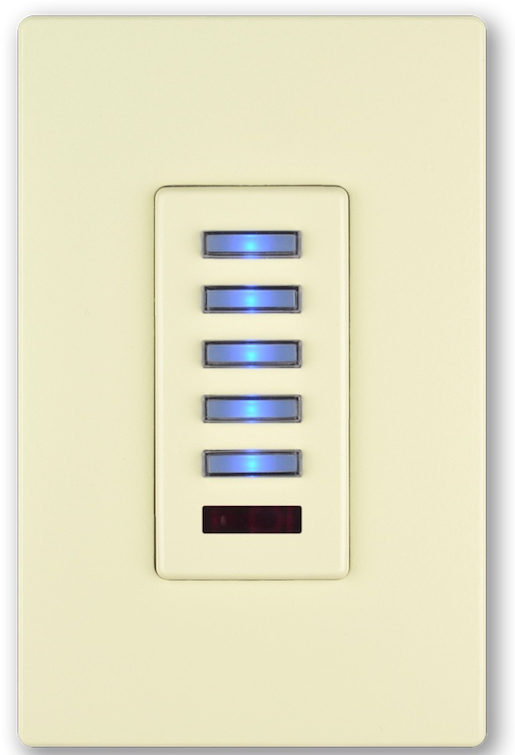

Interactive Technologies SS-305-ALM SceneStation 3 Stand-alone Architectural DMX Controller, Light Almond Image 1
Interactive Technologies SS-305-ALM SceneStation 3 Stand-alone Architectural DMX Controller, Light Almond Image 2
Interactive Technologies SS-305-ALM SceneStation 3 Stand-alone Architectural DMX Controller, Light Almond
Our Price: $696.36
List Price: $829.00
You save 16%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Introducing a whole new way to think about Architectural Preset Stations - The SS-305-ALM, a wireless SceneStation 3 that comes in a light almond finish..

SceneStation is a complete self-contained lighting playback solution in a wall-mounted button station. SceneStation sets a new standard for full-featured, easy to use, cost-effective DMX playback. Perfect for restaurants, churches, high-end residential, trade show booths and more, SceneStation can control nearly any DMX device (RGB fixtures, moving lights, dimmers, effects, etc.), while also remaining simple for the end-user.

Interactive Technologies SS-305-ALM Includes:

  • Wireless Scene Station Unit (Light Almond finish)
  • Single-Gang Flush plate Cover
  • Mounting Screws
  • Removable Terminal Block for DMX Port
  • Getting Started Documentation
  • NOTE: Order power supply separately.

Interactive Technologies SS-305-ALM Features:

  • Completely Self-Contained
  • 64 Scene Capacity
  • Static, Sequential, Toggle, Chase, Momentary & Pile-On Modes for Each Button
  • Built-in Effects Engine for creating dynamic scenes
  • Programmable RGB Backlit Buttons
  • Includes 2.4GHz Wireless SceneStation Module
  • DMX-512 Output (44Hz)
  • DMX Input Snapshot and/or Manual Channel Editing
  • IR Remote Setup and Operation
  • Optional "Power-On" Scene Selection
  • AC or DC Operation
  • Decora® Wall Station Compatable
  • Available in White, Black, Ivory or Light Almond

Interactive Technologies SS-305-ALM Specifications:

  • Connections
    • Power: 2-Position Spring Clip Terminal
    • DMX Port: 3-Position Removable Terminal Block
  • Power Requirements
    • Input:
    • 14-28V AC (5VA minimum)
    • 11-28VDC (5W minimum), 420mA @ 12VDC
  • Physical
    • Width: 1.8" (46 mm)
    • Height: 4.1" (104 mm)
    • Depth:
      • 2.1" (54 mm) overall product depth
      • 1.8"(46 mm) depth behind mounting bracket
    • Weight: 2.9 oz (83g)
  • Environmental
    • Operating Temp: -40° to 158° F (-40° to 70° C)
    • Storage Temp: -40° to 176° F (-40° to 80°C)
    • Relative Humidity: 5% to 95% noncondensing
    • Altitude: 10,000 feet maximum
  • Warranty Two years from the date of purchase by the original owner (limited to defects in material or workmanship under normal use and service)
  • IMPORTANT When ordering a SceneStation, make sure you have a way to program it. SceneStation requires a USB programmer to use with the SceneStation Studio software, or you can program a SceneStation with a Programmer’s IR Remote, or you can capture simple snapshots from another DMX source using only the front panel of the station.
