Interactive Technologies SS-305-BLK
SceneStation 3 in Black

OUR PART #:  SS-305-BLK

Introducing a whole new way to think about Architectural Preset Stations - The SS-305-BLK, a wireless SceneStation 3 that comes in a black finish.
Learn More
Selected Model Price: $587.16
List Price: $699.00
Save up to 16%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Interactive Technologies SS-305-BLK
Select model: (shipping times are approximate)
Qty:

Similar Products

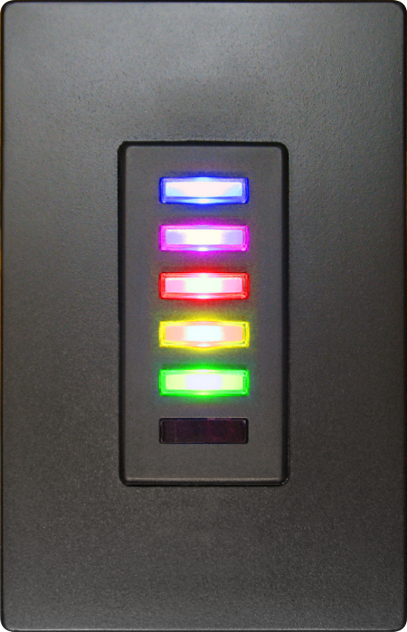

Introducing a whole new way to think about Architectural Preset Stations - The SS-305-BLK, a wireless SceneStation 3 that comes in a black finish. SceneStation is a complete self-contained lighting playback solution in a wall-mounted button station. SceneStation sets a new standard for full-featured, easy to use, cost-effective DMX playback. Perfect for restaurants, churches, high-end residential, trade show booths and more, SceneStation can control nearly any DMX device (RGB fixtures, moving lights, dimmers, effects, etc.), while also remaining simple for the end-user.

Interactive Technologies SS-305-BLK Includes:

  • Wireless SceneStation Unit (Black finish)
  • Single-Gang Flushplate Cover
  • Mounting Screws
  • Removable Terminal Block for DMX Port
  • Getting Started Documentation

NOTE: Order power supply separately.

Interactive Technologies SS-305-BLK Features:

  • Completely Self-Contained
  • 64 Scene Capacity
  • Static, Sequential, Toggle, Chase, Momentary & Pile-On Modes for Each Button
  • Built-in Effects Engine for creating dynamic scenes
  • Programmable RGB Backlit Buttons
  • Includes 2.4GHz Wireless SceneStation Module
  • DMX-512 Output (44Hz)
  • DMX Input Snapshot and/or Manual Channel Editing
  • IR Remote Setup and Operation
  • Optional "Power-On" Scene Selection
  • AC or DC Operation
  • Decora® Wall Station Compatable
  • Available in White, Black, Ivory or Light Almond

Interactive Technologies SS-305-BLK Specifications:

Connections

  • Power: 2-Position Spring Clip Terminal
  • DMX Port: 3-Position Removable Terminal Block

Power Requirements

  • Input:
      -  14-28V AC (5VA minimum)
      -  11-28VDC (5W minimum), 420mA @ 12VDC

Physical

  • Width: 1.8" (46 mm)
  • Height: 4.1" (104 mm)
  • Depth:
    • 2.1" (54 mm) overall product depth
    • 1.8"(46 mm) depth behind mounting bracket
  • Weight: 2.9 oz (83g)

Environmental

  • Operating Temp: -40° to 158° F (-40° to 70° C)
  • Storage Temp: -40° to 176° F (-40° to 80°C)
  • Relative Humidity: 5% to 95% noncondensing
  • Altitude: 10,000 feet maximum

Warranty: Two years from the date of purchase by the original owner (limited to defects in material or workmanship under normal use and service)

IMPORTANT: When ordering a SceneStation, make sure you have a way to program it. SceneStation requires a USB programmer to use with the SceneStation Studio software, or you can program a SceneStation with a Programmer’s IR Remote, or you can capture simple snapshots from another DMX source using only the front panel of the station.
