Interactive Technologies CT-400
CueTouch LCD Touchscreen

OUR PART #:  CT-400

Our Price: $1,763.16
List Price: $2,099.00
You save 16%!
Write the first review.
Interactive Technologies CT-400
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

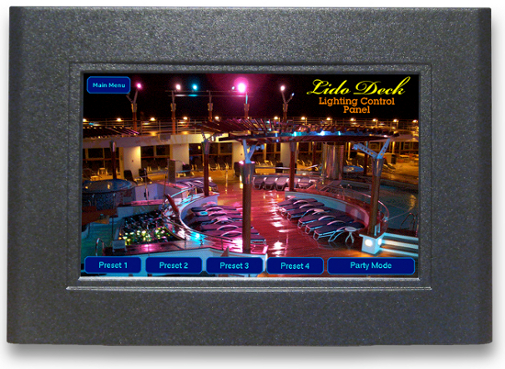

The CueTouch CT-400 is a programmable LCD Touchscreen for use with CueServer-based lighting installations making it a fully customizable lighting control access point for CueServer. Use CueTouch to add colorful, easy-to-use on screen controls to virtually any lighting or multimedia control project that uses one or more CueServer lighting control processors.

CueTouch offers a wide range of flexibility with both its beautiful color graphics and its high-degree of programmability. Use CueTouch in projects where simple touchscreen input is required or more sophisticated user-interface programs, complete with interactive graphics and complex logic, is needed.

The CueTouch CT-400 includes a bright active-matrix TFT LCD panel, an attractive but ruggedized vandal-resistant front panel, full Ethernet connectivity and a powerful processor capable of handling interactive graphics and complex logic operations. This version includes a 800x480 High-Quality TFT Graphic LCD panel, flush mount housing with mounting bracket.

CT-400 Applications:

  • Restaurant Lighting
  • Studio Control
  • Architectural
  • Themed Entertainment
  • Retail Lighting

What's in the CT-400 Box:

  • CueTouch LCD module
  • Freely downloadable CueTouch LCD Toolkit package

NOTE: Requires 12VDC power supply (not included).

Interactive Technologies CT-400 Features:

  • Fully customizable user interface
  • Design and manage entire CueTouch installations withQlarity®
  • Communicates with one or more CueServer DMXprocessors
  • When used via CueServer, control lighting, effectsand other DMX controlled equipment
  • Use multiple LCD panels and/or multiple CueServerprocessors for complex systems
  • Wide variety of programming functions availablethrough Qlarity
  • Vandal-resistant, hardened front panel and display glass

Interactive Technologies CT-400 Specifications:

Display

  • Type: TFT-LCD (256 Colors via Qlarity)
  • Pixels: 800 x 480 WVGA
  • Size: 7" (177mm) Diagonal
  • Backlight: LED

Connections

  • Network: RJ-45, 10/100 Base-T Ethernet
  • Serial Port: DB-9 Female, USB 2.0 (for USB memory stick)

Power Requirements

  • Input: 10 to 32 VDC, 8 Watts @ 24 VDC

Physical

  • Width: 8.8" (224mm)
  • Height: 6.1" (154m)
  • Depth: 2.5" (65mm)
  • Depth Behind Panel: 2.24" (57mm)
  • Cutout Width: 7.83" (199mm)
  • Cutout Height: 5.71" (145mm)
  • Weight: 2.2 lbs. (1 Kg)

Environmental

  • Operating Temp: -4° to 158° F (-20° to 70° C)
  • Storage Temp: -22° to 185° F (-30° to 85° C)
  • Relative Humidity: 5 to 95% noncondensing
  • Vibration: 10 to 1500 Hz, 4g RMS
  • Shock: 20g, 3ms, any axis

Warranty: Two years from the date of purchase by the original owner (limited to defects in material or workmanship under normal use and service).
