Interactive Technologies ST-HUB-EN
CueStation Universal Hub via Ethernet

OUR PART #:  ST-HUB-EN

Our Price: $545.16
List Price: $649.00
You save 16%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Interactive Technologies ST-HUB-EN
Qty:
In Stock

Similar Products

The ST-HUB-EN is a CueStation Universal Network Hub from Interactive Technologies that is a multi-purpose interface for controlling button stations that use either 2-Wire or 5-Wire network technologies. The Hub acts as both a power supply for the stations as well as a gateway for allowing host systems to receive button events and instruct the button indicators to illuminate in various ways. The Network Hub is not used with Passive stations.  The Network Hub (with Ethernet) communicates with the host system by RS-232 and/or Ethernet messages.

Perfect for adding networkable CueStations to a CueServer system, or for custom projects.

Interactive Technologies ST-HUB-EN Includes:

  • CueStation Universal Network Hub
  • Power Supply
  • Mounting Flanges
  • Instructions

Interactive Technologies ST-HUB-EN Features:

  • Controls both 2-Wire and 5-Wire CueStations
  • Communicates with the host system via RS-232 and/or Ethernet
  • Powered by 12-24V AC or DC
  • Removable terminal blocks
  • Small size

Interactive Technologies ST-HUB-EN Specifications:

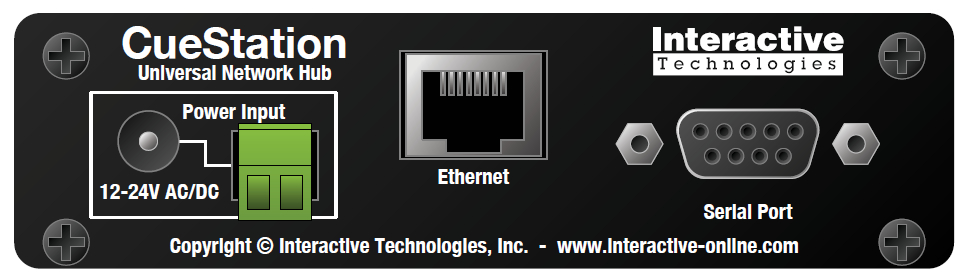

Connections

  • Power Input: 2.1 mm DC Power Input Jack or 2-Position Pluggable Terminal Block
  • Ethernet Port: RJ-45, 10/100 Base-T Ethernet
  • Serial Port: Female DB-9 or 3-Position Pluggable Terminal Block
  • 2-Wire Network Port: 2-Position Pluggable Terminal Block
  • 5-Wire Network Port: 5-Position Pluggable Terminal Block
  • Auxiliary Port: 3-Position Pluggable Terminal Block (not currently used)

Power Requirements

  • Input Voltage:  12-24V AC orDC
  • Input Current:
      -  4 Watts + 0.6 Watts per Station
      -  333mA + 50mA per Station (using 12V)
     -  167mA + 25mA per Station (using 24V)

Physical

  • Width:
      -  4.29" (109 mm) without mounting flanges
      - 5.51" (140 mm) with mounting flanges
  • Length:  3.43" (87 mm)
  • Height:  1.18" (30 mm)
  • Weight:  0.7 lbs. (0.3 Kg)

Environmental

  • Operating Temp:  -40° to 158° F (-40° to 70°C)
  • Storage Temp:  -40° to 176° F (-40° to80°C)
  • Relative Humidity:  5% to 95% noncondensing
  • Altitude:  10,000 feet maximum
