Interactive Technologies CS-816-FULL CueServer 1 Express Lighting Playback Controller, Fully Loaded

OUR PART #: CS-816-FULL MFR #: CS-816-FULL

Copied to clipboard

The CS-81Full is Interactive Technologies smallest, entry-level CueServer designed specifically for portable applications and cost effective lighting control and playback. ...Read more

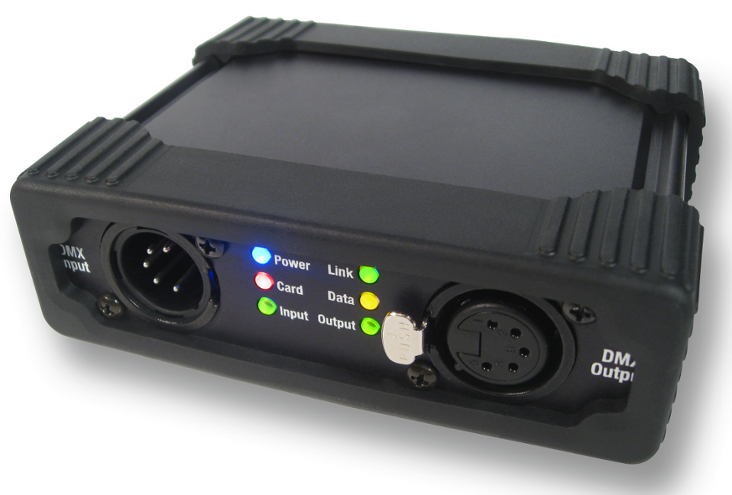

Interactive Technologies CS-816-FULL CueServer 1 Express Lighting Playback Controller, Fully Loaded Image 1
Interactive Technologies CS-816-FULL CueServer 1 Express Lighting Playback Controller, Fully Loaded Image 2
Interactive Technologies CS-816-FULL CueServer 1 Express Lighting Playback Controller, Fully Loaded
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The CS-81Full is Interactive Technologies smallest, entry-level CueServer designed specifically for portable applications and cost effective lighting control and playback. Great for use with the Figment DMX app for iPhone and iPad devices. This version includes CueServer Express and switching power supply and is pre-loaded with ALL software options.

CueServer is a complete lighting playback and integration processor, featuring advanced DMX lighting control, sophisticated event scripting and robust I/O capabilities combined in a tiny web-based device. Great for both architectural and entertainment lighting control projects, CueServer provides an unprecedented level of control and customization in an easy-to-use package.

CueServer includes a built-in web server that provides access to a full complement of lighting controls, show programming and playback features without the need for special software or an Internet connection.Apps for iPhone and iPad are available for direct control and/or programming of CueServer, or use with other 3rd party software that have been written to use CueServer as its DMX interface.

After CueServer is programmed, it can function as a stand-alone show controller, leveraging its optional real-time clock/calendar, astronomical time functions, and other event triggers to interact with the outside world. Integrate CueServer with other external devices via Ethernet connectivity for fully custom lighting and show control solutions.

CS-816-FULL Applications:

  • Architectural: Commercial settings, specialized building lighting, energy management
  • Entertainment: Themed attractions, concerts, nightclubs, stage performances, special effects
  • Residential: Home theaters, color changing cove lighting, accent features, pool & spa
  • Retail: Window displays, merchandising, the medlighting, digital signage
  • Studio: Traditional studio lighting control, LCD touchscreen integration, master lighting control

Interactive Technologies CS-816-FULL Includes:

  • CS-816 DMX Processor
  • Low-Profile Universal Input Switching Power Supply
  • Getting Started Documentation

Interactive Technologies CS-816-FULL Features:

  • Completely self-contained lighting playback controller
  • Seamlessly handles static scenes, crossfading and optional real-time "streaming" DMX playback
  • Web-based "live" operation and programming
  • Powerful CueScript programming language
  • Optionally handles up to 4 independent timelines
  • Locally program lighting scenes or snapshot from external DMX source
  • Network multiple CueServer units together to control a large number of channels or devices
  • Optional real-time clock with astronomical functions and 365-day calendar events
  • System integration via Ethernet
  • Easily interfaces with Crestron®, Vantage®, AMX® and other automation systems
  • Huge onboard memory and removable memory card slot
  • Rugged anodized extruded aluminum housing
  • Optional rubberized bumper cases for portable applications
  • Optional "slide-in" flanges for surface mounting

Interactive Technologies CS-816-FULL Specifications:

  • Connections
    • Power: 2.1 mm DC Power Input Jack
    • Network: RJ-45, 10/100 Base-T Ethernet
    • Memory Card: xD Card Slot
    • DMX Input: 5-Pin Male XLR
    • DMX Output: 5-Pin Female XLR
  • Power Requirements
    • Input: 6-30 VDC (12VDC Nominal), 500mA @ 12VDC
  • Physical
    • Width:
      • 4.29" (109 mm) without mounting flanges
      • 5.51" (140 mm) with optional mounting flanges
    • Length: 3.43" (87 mm)
    • Height: 1.18" (30 mm)
    • Weight: 0.7 lbs. (0.3 Kg)
  • Environmental
    • Operating Temp: -40° to 158° F (-40° to 70° C) without optional xD Flash card installed. 32° to 158° F (0° to 70° C) with optional xDFlash card installed.
    • Storage Temp: -40° to 176° F (-40° to80°C)
    • Relative Humidity: 5% to 95% noncondensing
    • Altitude: 10,000 feet maximum
  • Warranty: Two years from the date of purchase by the original owner (limited to defects in material or workmanship under normal use and service).
