Interactive Technologies CS-810
CueServer Mini Controller

OUR PART #:  CS-810

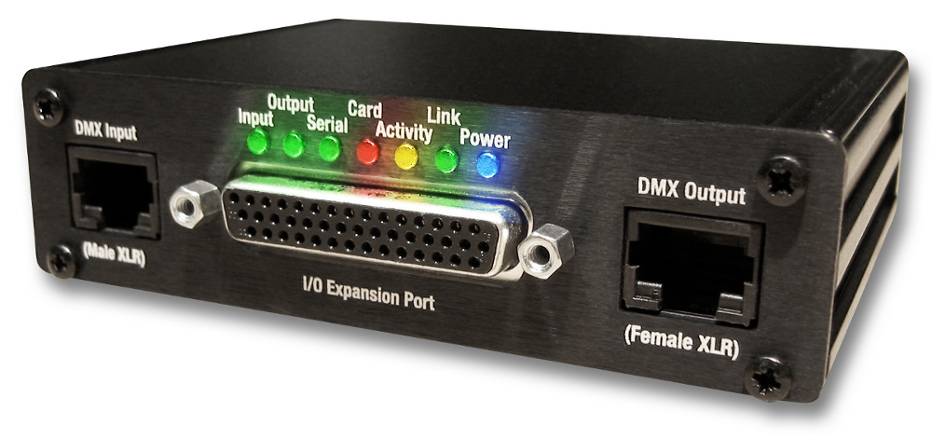

Front View of Interactive Technologies CS-810
Elevated Front View of CS-810
Back Panel View of Interactive Technologies CS-810

Click a thumbnail to see more images. (5 total)

Our Price: $1,343.16
List Price: $1,599.00
You save 16%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Interactive Technologies CS-810
Qty:
In Stock

Similar Products

The CS-810 from Intereactive Technologies is a CueServer Mini controller that is a complete lighting playback and integration processor in a small desktop or surface mounted extruded aluminum package. Featuring advanced DMX lighting control, sophisticated event scripting and robust I/O capabilities combined in a tiny web-based device. Great for both architectural and entertainment lighting control projects, CueServer provides an unprecedented level of control and customization in an easy-to-use package. Great for both architectural and entertainment lighting control projects, CueServer provides an unprecedented level of control and customization in an easy-to-use package.

CueServer includes a built-in web server that provides access to a full complement of lighting controls, show programming and playback features without the need for special software or an Internet connection. Apps for iPhone and iPad are available for direct control and/or programming of CueServer, or use with other 3rd party software that have been written to use CueServer as its DMX interface.

NOTE: Product shown in image is for illustrative purposes only. Actual product is the CueServer Mini unit. iPhones not included with purchase.

After CueServer is programmed, it can function as a stand-alone show controller, leveraging its built-in real-time clock/calendar, astronomical time functions, button and contact closure inputs, and wide variety of event triggers to interact with the outside world. Integrate CueServer with other external devices via RS-232 serial, Ethernet connectivity and more for fully custom lighting and show control solutions.

CS-810 Applications:

  • Architectural: Commercial settings, specializedbuilding lighting, energy management
  • Entertainment: Themed attractions, concerts, nightclubs, stage performances, special effects
  • Residential: Home theaters, color changing covelighting, accent features, pool & spa
  • Retail: Window displays, merchandising, themedlighting, digital signage
  • Studio: Traditional studio lighting control, LCD touchscreen integration,master lighting control

Interactive Technologies CS-810 Includes:

  • CS-810 Control Unit
  • Low-Profile Universal Input Switching Power Supply
  • RJ-45 to Male 5-Pin XLR Adaptor for DMX Input
  • RJ-45 to Female 5-Pin XLR Adaptor for DMX Output
  • Removable Mounting Flanges
  • Self-Adhesive Rubber Feet
  • Getting Started Documentation

Interactive Technologies CS-810 Features:

  • Completely self-contained lighting playbackcontroller
  • Seamlessly handles static scenes, crossfading andreal-time "streaming" DMX playback
  • Web-based "live" operation and programming
  • Powerful CueScript programming language
  • Handles up to 4 independent timelines
  • Locally program lighting scenes or snapshot fromexternal DMX source
  • Network multiple CueServer units together to controla large number of channels or devices
  • On-board real-time clock with astronomical functionsand 365-day calendar events
  • System integration via Ethernet, RS-232 and DigitalI/O
  • Easily interfaces with Crestron®, Vantage®, AMX® andother automation systems
  • Huge onboard memory and removable memory card slot
  • Rugged anodized extruded aluminum housing
  • Removable "slide-in" flanges for surface mounting

Interactive Technologies CS-810 Specifications:

Connections

  • Power: 2.1 mm DC Power Input Jack (may optionallyprovide power via I/O Expansion Port)
  • Network: RJ-45, 10/100 Base-T Ethernet
  • Memory Card: xD Card Slot
  • DMX Input: RJ-45, ESTA Standard DMX over CAT5 Pinout(RJ-45 to Male XLR Adaptor Included)
  • DMX Output: RJ-45, ESTA Standard DMX over CAT5 Pinout(RJ-45 to Female XLR Adaptor Included)
  • I/O Expansion Port: HD-44 Female. Includes signals for Power, Ground, DMXInput, DMX Output, RS-232, 8 Contact Closures, 8 Low-Voltage Outputs,Regulated 5VDC Output (use CS-IOB I/O Expansion Board to adapt port toterminal blocks)

Power Requirements

  • Input: 6-30 VDC (12VDC Nominal), 800mA @ 12VDC

Physical

  • Width:
      -  4.29" (109 mm) without mounting flanges
      - 5.51" (140 mm) with mounting flanges
  • Length: 3.43" (87 mm)
  • Height: 1.18" (30 mm)
  • Weight: 0.7 lbs. (0.3 Kg)

Environmental

  • Operating Temp: -40° to 158° F (-40° to 70° C)without optional xD Flash card installed. 32° to 158° F (0° to 70° C) withoptional xD Flash card installed.
  • Storage Temp: -40° to 176° F (-40° to 80°C)
  • Relative Humidity: 5% to 95% noncondensing
  • Altitude: 10,000 feet maximum

Warranty: Two years from the date of purchase by the original owner (limited to defects in material or workmanship under normal use and service).
