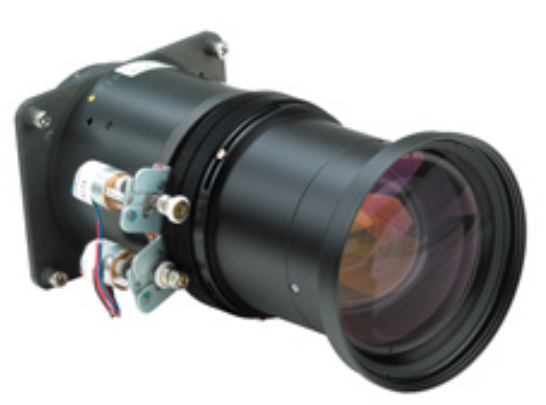

Christie Digital 38-809047-51
1.3-1.8:1 Zoom Lens for LX650-LX700 Projectors

OUR PART #:  38-809047-51

The 38-809047-51 is an accessory option from Christie that is a 1.3-1.8:1 Zoom Lens for LX650-LX700 Projectors.
Learn More
Our Price: $2,995.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Christie Digital 38-809047-51
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The 38-809047-51 is an accessory option from Christie that is a 1.3-1.8:1 Zoom Lens for LX650-LX700 Projectors. This lens provides a 1.3-1.8:1 throw ratio for any of the Christie LCD projectors listed below including the LX650 and LX700 units. This means that the distance between the projector and the screen (throw distance) can be between 1.3-1.8 x the width of the projected image (screen).

This lens applies to the following Chrisite projector models: LW300, LX26, LX33, LX35, LX55, LX650 and LX700.

Christie 38-809047-51 Specifications:

  • Lens Type: 1.3-1.8:1 Zoom
  • Throw Distance: 1.3-1.8:1
  • Focal Length: 34-48mm
  • Lens Shift: 10:0 - 1:3
  • F Value: 2.5 - 3.1
  • Image Circle: 47.6mm
  • Max. Diameter: 99mm
  • Length: 194mm / 7.64"
  • Carton Size: 366W x 236H x 262D mm / 13.22"W x 9.29"H x 10.32"D

Throw Distance Formula

  • Standard (Inches): TDmin = 1.29 x W - 6.06 / TDmax = 1.80 x W - 1.6
  • Metric (cm):  TDmin = 1.29 x W - 15 / TDmax = 1.80 x W - 4
  • Vertical Offset: + 100% V
  • Horizontal Offset: +/- 23% H

Diagonal Screen Size

  • Standard (inches): 30 to 400
  • Metric (cm): 76.2 to 1016

NOTE: Throw Distance is measured from the front bezel of the projector. Specifications and features are subject to change without notice.
