Product Overview
Interactive Technologies CS-800 is the flaship of the CueServer family. This is the most fully-loaded CueServer in a rack-mounted package. It's a complete lighting playback and integration processor, featuring advanced DMX lighting control, sophisticated event scripting and robust I/O capabilities combined in a tiny web-based device. Great for both architectural and entertainment lighting control projects, CueServer provides an unprecedented level of control and customization in an easy-to-use package.
CueServer includes a built-in web server that provides access to a full complement of lighting controls, show programming and playback features without the need for special software or an Internet connection. Apps for iPhone and iPad are available for direct control and/or programming of CueServer, or use with other 3rd party software that have been written to use CueServer as its DMX interface.
After CueServer is programmed, it can function as a stand-alone show controller, leveraging its built-in real-time clock/calendar, astronomical time functions, button and contact closure inputs, and wide variety of event triggers to interact with the outside world. Integrate CueServer with other external devices via RS-232 serial, Ethernet connectivity and more for fully custom lighting and show control solutions.
Applications:
- Architectural: Commercial settings, specialized building lighting, energy management
- Entertainment: Themed attractions, concerts, nightclubs, stage performances, special effects
- Residential: Home theaters, color changing cove lighting, accent features, pool & spa
- Retail: Window displays, merchandising, themed lighting, digital signage
- Studio: Traditional studio lighting control, LCD touchscreen integration, master lighting control
Interactive Technologies CS-800 Includes:
- CS-800 Control Unit
- Low-Profile Universal Input Switching Power Supply
- Rack-mounting ears
- Pluggable terminal blocks
- Self-Adhesive Rubber Feet
- Getting Started Documentation
Interactive Technologies CS-800 Features:
- Completely self-contained lighting playback controller
- Seamlessly handles static scenes, crossfading and real-time "streaming" DMX playback
- Web-based "live" operation and programming
- Powerful CueScript programming language
- Handles up to 4 independent timelines
- Locally program lighting scenes or snapshot from external DMX source
- Network multiple CueServer units together to control a large number of channels or devices
- On-board real-time clock with astronomical functions and 365-day calendar events
- System integration via Ethernet, RS-232 and Digital I/O
- Easily interfaces with Crestron®, Vantage®, AMX® and other automation systems
- Huge onboard memory and removable memory card slot
- Rack-mounted enclosure for professional installations
- Fully customizable LCD Display for user feedback
- Front-panel menu buttons for changing date, time, network settings and more without needing a computer
- Front-panel programmable function buttons with LED indicators for direct access to custom actions
Interactive Technologies CS-800 Specifications:
- Connections:
- Power: 2.1 mm DC Power Input Jack
- Network: RJ-45, 10/100 Base-T Ethernet
- Memory Card: xD Card Slot
- DMX Input: 5-Pin Male XLR
- DMX Output: 5-Pin Female XLR
- Serial Port: DB-9 Female
- I/O Expansion: 2 10-position Pluggable Terminal Blocks providing signals for 8 contact closure inputs, 8 low voltage outputs, regulated 5V DC and ground
- Power Requirements:
- Input: 6-30 VDC (12VDC Nominal), 800mA @ 12VDC
- Physical:
- Width: 16.7" (424 mm) 19" rack width
- Height: 1.76" (45 mm) 1U rack space
- Depth: 6.0" (152 mm)
- Weight: 3.4 lbs. (1.5 Kg)
- Environmental:
- Operating Temp: -40° to 158°F (-40° to 70°C) without optional flash card, LCD display may freeze -4° to 158°F (-20° to 70°C) without optional xD flash card installed 32° to 158°F (0° to 70°C) with optional xD flash card installed
- Storage Temp: -40° to 176°F (-40° to 80°C)
- Relative Humidity: 5% to 95% noncondensing
- Altitude: 10,000 feet maximum
- Warranty - Two years from the date of purchase by the original owner (limited to defects in material or workmanship under normal use and service).
NOTE:

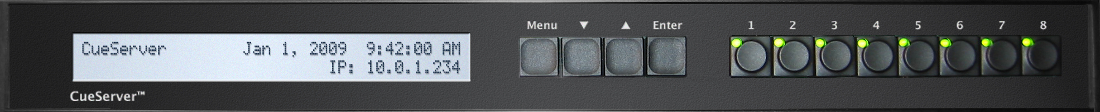

Product shown in image is for illustrative purposes only. Actual product is the CS-800 Control Unit ONLY . iPhones NOT included with purchase .
