AJA Video Systems Inc CORVID 3G-LP
Low Profile Version CORVID3G PCIe 4x Card

OUR PART #:  CORVID-3G-LP

This is the Low Profile version of AJA's Corvid 3G PCIe 4x card expands on the capabilities of the original Corvid with support for 3G signals...
Learn More
Our Price: $795.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc CORVID 3G-LP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

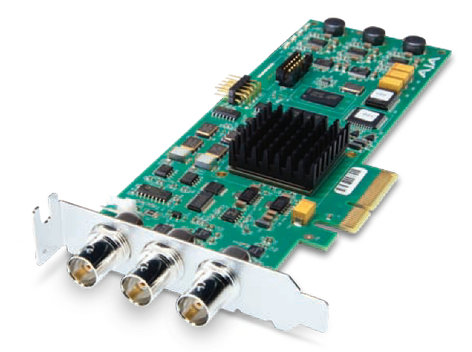

This is the Low Profile version of AJA's Corvid 3G PCIe 4x card expands on the capabilities of the original Corvid with support for 3G signals, opening up the possibility for handling higher quality signals while still providing all the benefits of the Corvid card. This "Low Profile" version is handy for when space is of the essence, Corvid 3G has the extra horsepower for more demanding applications.

Corevid 3G Features:

  • PCI Express 4 lane
  • 1 Channel 3G, HD-SDI or SD-SDI Input, 1 Channel 3G,HD-SDI or SD-SDI Output
  • 8/10 Bit YCbCr and RGB framebuffer formats
  • 1 Mixer/Keyer
  • Available in PCIe form factor (Corvid 3G) or PCIe LowProfile form factor (Corvid 3G LP)
  • 16-ch SDI Embedded Audio I/O, 24-bit 48khz
  • HD/SD Genlock, Reference Video or LTC Input(selectable)
  • 3-year warranty

Corevid 3G Specifications:

1 Video Input

  • Digital: 3G/HD/SD-SDI, SMPTE-259/292/296/424

1 Video output

  • Digital: 3G/HD/SD-SDI, SMPTE-259/292/296/424

Audio Input

  • Digital: 16-channel 24-bit SDI embedded, 48kHz synchronous

Audio Output

  • Digital: 16-channel 24-bit SDI embedded, 48kHz synchronous

Video Formats

SD:

  • 525i 29.97
  • 625i 25

3G/HD:

  • 720p 50
  • 720p 59.94
  • 720p 60
  • 1080i 25
  • 1080i 29.97
  • 1080i 30
  • 1080PsF 23.98
  • 1080PsF 24
  • 1080PsF 25
  • 1080PsF 29.97
  • 1080PsF 30
  • 1080P 23.98
  • 1080P 24
  • 1080P 25
  • 1080P 29.97
  • 1080P 30
  • 1080P 50
  • 1080P 59.94
  • 1080P 60

2K:

  • 2048 x 1080P 23.98
  • 2048 x 1080PsF 23.98
  • 2048 x 1080P 24
  • 2048 x 1080PsF 24
  • 2048 x 1080P 25
  • 2048 x 1080PsF 25
  • Reference: Analog Color Black or HD Tri-level sync
  • Physical Dimensions: 16.8 cm L x 1.4 cm W x 5.5 cm H / 6.6" L x 0.6" W x2.2" H
