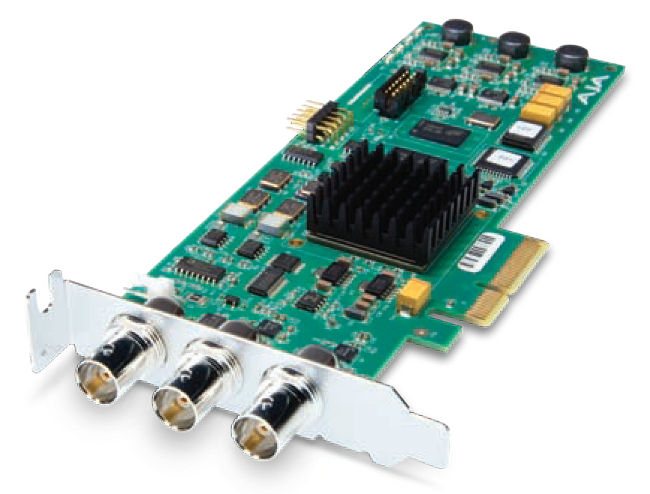

AJA Video Systems Inc CORVID-LP
Low Profile PCIe 4x Card for 8/10-bit Uncompressed Digital SD - HD I/O

OUR PART #:  CORVID-LP

This is the "Low Profile" version of AJA's Corvid card which helps to ensure you are getting the highest quality signal in and out of your application.
Learn More
Our Price: $595.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc CORVID-LP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This is the "Low Profile" version of AJA's Corvid card which helps to ensure you are getting the highest quality signal in and out of your application. Corvid is the proven platform for digital uncompressed video and audio I/O, with support for SD and HD as well as 16 channels of embedded 24-bit audio. Corvid Low Profile is useful when space is of the essence, Corvid uses AJA's common API which is supported across multiple operating systems.

AJA Corvid-LP Features:

  • 8/10-bit Uncompressed SD/HD PCIe I/O Card
  • PCI Express 4 lane
  • Available in PCIe form factor (Corvid) or PCIe LowProfile form factor (Corvid LP)
  • SDI or HD-SDI Input, SDI/HD-SDI Output
  • 16-ch SDI Embedded Audio I/O, 24-bit 48kHz
  • HD/SD Genlock, Reference Video or LTC Input(selectable)
  • 3-year warranty

AJA Corvid-LP Specifications:

Video Input

  • Digital: HD-SDI/SDI, SMPTE-259/292/296

Video output

  • Digital: HD-SDI/SDI, SMPTE-259/292/296

Audio Input

  • Digital: 16-channel 24-bit SDI embedded, 48kHz synchronous

Audio Output

  • Digital: 16-channel 24-bit SDI embedded, 48kHz synchronous

Video Formats

SD:

  • 525i 29.97
  • 625i 25

HD:

  • 720p 50
  • 720p 59.94
  • 720p 60
  • 1080i 25
  • 1080i 29.97
  • 1080i 30
  • 1080p 23.98
  • 1080psf 23.98
  • 1080p 24
  • 1080psf 24
  • 1080p 25
  • 1080psf 25
  • 1080p 29.97
  • 1080psf 29.97
  • 1080p 30
  • Reference: Analog Color Black or HD Tri-Level sync
  • Physical Dimensions: 16.8 cm L x 1.4 cm W x 5.5 cm H / 6.6" L x 0.6" W x2.2" H

Other Information:

  • 1 Independent LTC In/Out
  • 1 Independent RS-422
