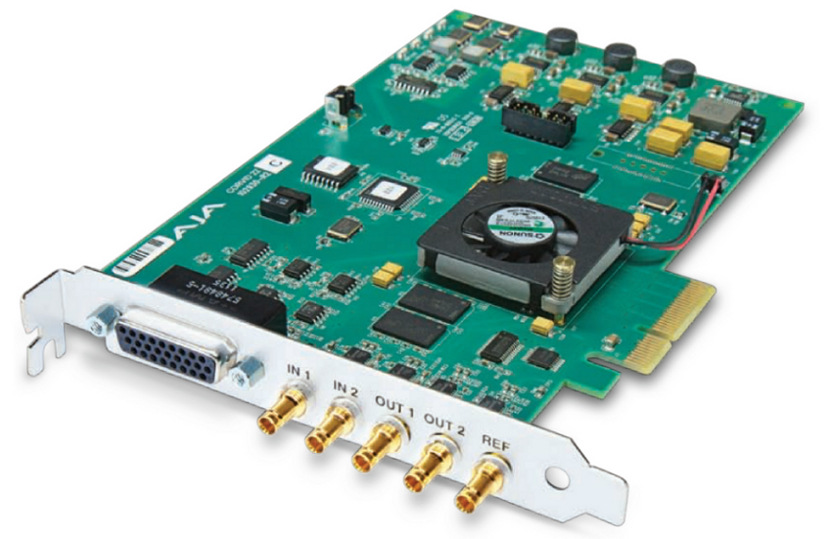

AJA Video Systems Inc CORVID 22
PCIe Gen 2.0 4x Card for 8/10-bit Uncompressed

OUR PART #:  CORVID-22

The Corevid 22 from AJA allows you to get multiple I/O channels without taking up a lot of space.
Learn More
Our Price: $1,395.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc CORVID 22
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Corevid 22 from AJA allows you to get multiple I/O channels without taking up a lot of space. Corvid 22 provides high-performance, dual-channel video and embedded 24-bit audio I/O in a single PCIe card. Two completely independent channels handle resolutions up to 2K and high-framerate 3G as well. With separate LTC and RS-422 machine control per channel and support for multiple operating systems, Corvid 22 gives you all the performance and capabilities you need.

AJA Corevid 22 Features:

  • PCI Express 4 lane
  • 2 Channels 3G, HD-SDI or SD-SDI Input, 2 Channels 3G, HD-SDI or SD-SDI Output
  • All SD/HD/2Kx1080 Video Formats
  • 3G Input/Output for 1080p50/60 and Video/Key (dual-link not supported)
  • 8/10 Bit YCbCr and RGB frame buffer formats
  • 2 Mixer/Keyer widgets. This allows output of two simultaneous video/key pairs over 3G. It also allows for up to two simultaneous downstream keyers
  • 2 Independent 16-ch 48kHz SDI Embedded Audio I/O engines
  • Analog Color Black or HD Tri-Level Sync
  • 3-year warranty

AJA Corevid 22 Specifications:

Video Inputs

  • Digital: 3G/HD/SD-SDI, SMPTE-259/292/296/424

Video output

  • Digital: 3G/HD/SD-SDI, SMPTE-259/292/296/424

Audio Inputs

  • Digital: 16-channel 24-bit SDI embedded, 48kHz synchronous

Audio Outputs

  • Digital: 16-channel 24-bit SDI embedded, 48kHz synchronous

Video Formats

SD:

  • 525i 29.97
  • 625i 25

HD:

  • 720p 50
  • 720p 59.94
  • 720p 60
  • 1080i 25
  • 1080i 29.97
  • 1080i 30
  • 1080psF 23.98
  • 1080psF 24
  • 1080psF 25
  • 1080psF 29.97
  • 1080psF 30
  • 1080p 23.98
  • 1080p 24
  • 1080p 25
  • 1080p 29.97
  • 1080p 30
  • 1080p 50
  • 1080p 59.94
  • 1080p 60

2K:

  • 2048 x 1080P 23.98
  • 2048 x 1080PsF 23.98
  • 2048 x 1080P 24
  • 2048 x 1080PsF 24
  • 2048 x 1080P 25
  • 2048 x 1080PsF 25
  • Reference: Analog Color Black or HD Tri-level sync

Output Sitter (timing / alignment)

  • SD: .2 UI/.2 UI
  • HD: .21 UI/.08 UI
  • 3G: .45 UI/.17UI
  • Power Dissipation: 12w typical, 15w maximum
  • Physical Dimensions: 16.7 cm L x 1.8 cm W x 9.8 cm H / 6.6" L x 0.7" W x3.9" H

Breakout Cable

  • LTC 1 In
  • LTC 2 In
  • LTC 1 Out
  • LTC 2 Out
  • RS422 Channel 1
  • RS422 Channel 2

Other Information

  • 2 Independent LTC In/Out
  • 2 Independent RS-422
