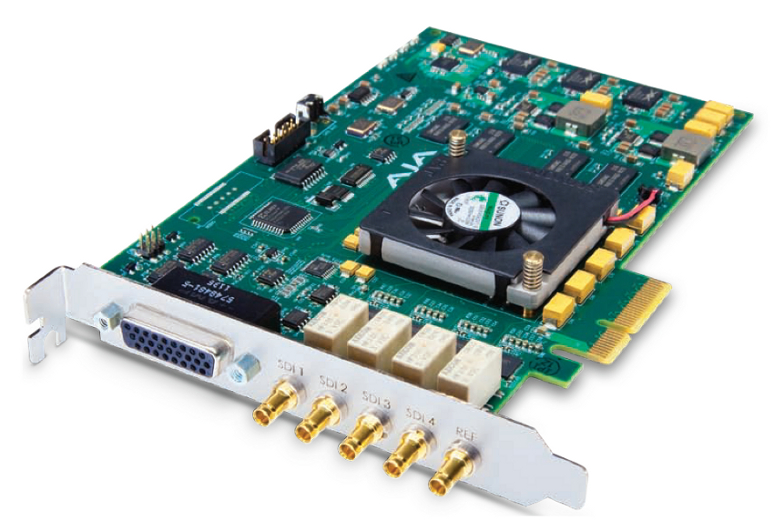

AJA Video Systems Inc Corvid 24
PCIe Gen 2.0 4x Card for 8/10-bit Uncompressed

OUR PART #:  CORVID-24

AJA takes the next step in multi-channel video and audio I/O with Corvid 24.
Learn More
Our Price: $1,895.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc Corvid 24
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

AJA takes the next step in multi-channel video and audio I/O with Corvid 24. Supporting 4 channels of capture or output with separate LTC, embedded 24-bit audio and metadata for each channel all on a single PCIe card, Corvid 24 is the solution for high-density I/O. All four connections can also be used to support full 4K I/O. The choice is yours. And with multiple operating system support, Corvid 24 will work in almost any environment.

AJA Video Systems Inc Corvid 24 Features:

  • PCIe Gen 2.0 4 Lane
  • Failover bypass relays on each channel
  • 4 Independet Channels 3G, HD-SDI or SD-SDI I/0
  • All SD/HD/2Kx1080/4K Video Formats
  • 3G Input/Output for 1080p50/60 and Video/Key (dual-link not supported)
  • 8/10 Bit YCbCr and RGB frame buffer formats
  • 2 Mixers/Keyer widgets. This allows output of two simultaneous video/key pairs over 3G. It also allows for up to two simultaneous downstream keyers
  • 4 Independent 16-ch 48kHz SDI Embedded Audio I/O engines
  • Analog Color Black or HD Tri-LEvel Sync
  • 3 year warranty

AJA Video Systems Inc Corvid 24 Specifications:

Video Inputs

  • Digital:
    • 3G/HD/SD-SDI
    • SMPTE-259/292/296/424

Video Outputs

  • Digital:
    • 3G/HD/SD-SDI
    • SMPTE-259/292/296/424

Audio Inputs

  • Digital:
    • 16-Channel 24-bit SDI Embedded
    • 48KHZ synchronous

Audio Outputs

  • Digital:
    • 16 Channel 24-bit SDI embedded
    • 48KHZ synchronous

Video Formats

SD:

  • 525i 29.97
  • 625i 25

HD:

  • 720p 50
  • 720p 50.94
  • 720p 60
  • 1080i 25
  • 1080i 29.97
  • 1080i 30
  • 1080PsF 23.98
  • 1080PsF 24
  • 1080PsF 25
  • 1080PsF 29.97
  • 1080PsF 30
  • 1080P 23.98
  • 1080P 24
  • 1080P 25
  • 1080P 29.97
  • 1080P 30
  • 1080P 50
  • 1080P 59.94
  • 1080P 60

2K:

  • 2048 x 1080P 23.98
  • 2048 x 1080PsF 23.98
  • 2048 x 1080P 24
  • 2048 x 1080PsF 24
  • 2048 X 1080PSF 24
  • 2048 x 1080P 25
  • 2048 x 1080PsF 25

4K:

  • 3840 x 2160P 23.98, 24, 25
  • 3820 x 2160PsF 23.98, 24, 25
  • 4096 x 2160P 23.98, 24, 25
  • Reference: Analog Color Black or HD Tri-level sync

Breakout Cable

  • LTC 1 In
  • LTC 2 In
  • LTC 1 Out
  • LTC 2 Out
  • RS422 Channel 1
  • RS422 Channel 2
  • Physical Dimensions (LxWxH): 6.6" x 0.7" x 3.9" (16.7 x 1.8 x 9.8 cm)
