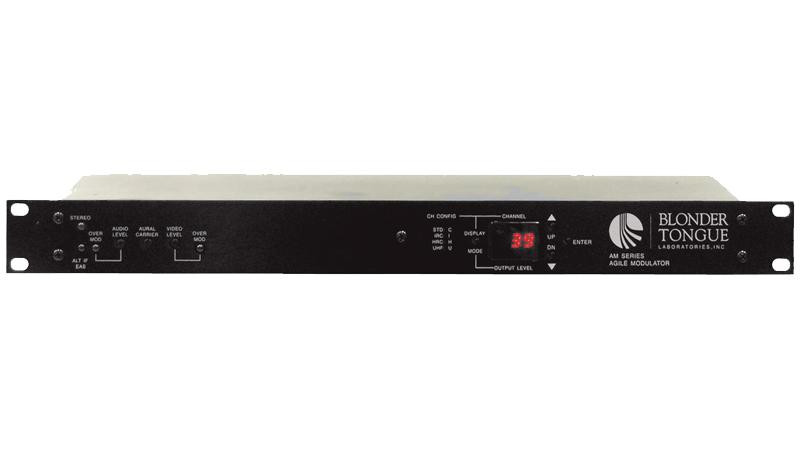

Blonder-Tongue AM60-550-OPT-4
Frequency-Agile Modulator

OUR PART #:  AM60-550-OPT-4

AM series is a family of frequency-agile analog audio/video modulators.
Learn More
Our Price: $990.64
List Price: $1,015.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blonder-Tongue AM60-550-OPT-4
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

AM series is a family of frequency-agile analog audio/video modulators. AM-60-860, the flag-ship model, is available in NTSC channels 2-135 (54-860 MHz), and the PAL B, G, and I channels in the same frequency range. More economical models are available in NTSC for the frequency ranges 54-550 MHz, or 54-806 MHz. EAS (Emergency Alert System) is standard on all models. Stereo Audio, SAP (Secondary Audio Programming), and several other optional features are also available.

Blonder Tongue AM-60-550-OPT-4 Features:

  • AM-60-550 W/OPT 4 - Sub Channel capability for Remote Origination applications
  • Suitable for School security camera applications

Blonder Tongue AM-60-550-OPT-4 Specifications:

Input

  • Connector:
    • Standard: “F” Female
    • Option 2: BNC Female
  • Impedance: 75O
  • Return Loss: 18 dB
  • Video Input Level Standard: 0.7 volt Peak-to-Peak (87.5% depth of modulation)
  • Option 7 (Video AGC): 0.4 to 2.5 volts Peak-to-Peak (87.5% ±2.5% depth of modulation)
  • Video-to-RMS Hum Ratio: 65 dB Peak-to-Peak
  • Signal-to-Noise Ratio: 58 dB (Weighted; at 4MHz bandwidth)
  • Differential Gain: 2.0 %
  • Differential Phase: 1.0 degree
  • Over-modulation Indicator: 87 to 92%
  • Chrominance/Luminance Delay: Per FCC Requirements
  • Mono Audio (Standard) Connector:
    • AM-60-860 Model: Terminal Strip
    • All other Models: RCA
    • Option 9 (Balanced Audio Input): Terminal Strip
  • Input Impedance:
    • AM-60-860 Model: 600 O, balanced
    • All other Models: Greater than 10 k O, unbalanced
    • Option 9 (Balanced Audio Input): 600 O, balanced
  • Input Level:
    • Standard: 0.5 to 4.0 volt Peak-to-Peak
    • Option 8 (Audio AGC): 0.5 to 4.0 volt Peak-to-Peak (constant 25 kHz deviation)
  • Frequency Range: 50 Hz to 15 kHz
  • Frequency Response: ± 0.5 dB
  • Total Harmonic Distortion: 1% @ 25 kHz deviation
  • Signal-to-Noise Ratio: 59 dB
  • Over-modulation Threshold: 25 ± 2 kHz peak deviation
  • Stereo Audio (Option 5):
    • Connector:
      • AM-60-860 Model: Terminal Strip
      • All other Models: RCA
  • Input Impedance:
    • AM-60-860 Model: 600 O, balanced
    • All other Models: Greater than 10 kO, unbalanced
  • Input Sensitivity:
    • Standard: 1.0 volt Peak-to-Peak (55 kHz peak deviation with pilot tone)
    • Option 8 (Audio AGC): 0.5 to 4.0 volt Peak-to-Peak (constant 55 kHz deviation with pilot tone)
  • Frequency Response: ±0.75 dB (50 Hz to 14 kHz)
  • Separation: 20 dB (50 Hz to 10 kHz)
  • Harmonic Distortion: Less than 1% (@ 1kHz)
  • SAP Audio (Option 6): Includes Stereo Audio (Option 5)
    • Connector: RCA
  • Input Impedance: Greater than 10 k O, unbalanced
  • Input Level: 0.5 to 4.0 volt Peak-to-Peak
  • Frequency Range: 50 Hz to 10 KHz
  • Frequency Response: ±2 dB
  • Total Harmonic Distortion: 0.01
  • Signal-to-Noise Ratio: 80 dB
  • Over-modulation Threshold: 25 ±1 kHz peak deviation

Output

  • Connector: “F” Female
  • Impedance: 75 O
  • Return Loss: 12 dB
  • Frequency Range:
    • AM-60-860 Model: 54 to 860 MHz (NTSC CATV Ch. 2 -135)
    • AM-60-806 Model: 54 to 806 MHz (NTSC CATV Ch. 2 -125)
    • AM-60-550 & AM-45-550 Models: 54 to 550 MHz (NTSC CATV Ch. 2 -78 & 95-99)
    • Option 4 (Sub-band): 7 to 550 MHz (NTSC CATV Ch. T7 -78 & 95-99)
  • NTSC Channel Modes: UHF, VHF, CATV (Standard, HRC, IRC)
  • Power Level
    • AM-45-550 Model: +45 dBmV
    • All other Models: +60 dBmV
  • Power Level Range
    • AM-45-550 Model: +35 to +45 dBmV (in 0.2 dB increments)
    • All other Models: +50 to +60 dBmV (in 0.2 dB increments)
  • Video Flatness: fv-0.5 to fv+4.2 MHz (1.0 dB Peak-to-Valley)
  • Carrier-to-Noise: (In Channel) 63 dB
  • Broadband Noise: (4 MHz bandwidth) -77 dBc (@ +45/60 dBmV output level)
  • Spurious Outputs: -63 dBc
  • Aural/Visual Carrier Ratio: -15 ±5 dB
  • 4.5 MHz Aural Inter-carrier Freq. Tolerance: ±150 Hz; 32 to 122 °F (0 to 50 °C)
  • Channel Selectivity
    • Adjacent Aural & Below: -40 dB
    • Adjacent Picture & Above: -40 ±5 dB
  • Visual Carrier Frequency Tolerance:
    • Standard Channels: ±5.0 kHz; 32 to 122 °F (0 to 50 °C)
    • FCC Aeronautical Channels: ±2.5 kHz; 32 to 122 °F (0 to 50 °C)
  • IF (Intermediate Frequency):
    • Input/Output Connector: “F” Female / “F” Female
    • Aural Frequency: 41.25 MHz
    • Visual Frequency: 45.75 MHz
  • Composite IF Output:
    • Aural Carrier Level: +20 dBmV
    • Visual Carrier Level: +35 dBmV
    • Input/Output Impedance: 75 O
    • Input/Output Return Loss: 16/15 dB
  • EAS/Alternative IF: “F” Female
  • Connector:
  • Input Level: +38 dBmV @ 45.75 MHz
  • Switch Isolation: Greater than 60 dB

General

  • Dimensions (W x D x H): 19.0 x 14.25 x 1.75 in. (483 x 362 x 44 mm)
  • Power: 117 VAC ±10%; 60Hz (Fuse: 0.40 Amp) Also available in 220 VAC; 50Hz
  • Power Dissipation: 28 W (max)
  • Weight: 7 lbs (3.18 kg)
  • Operating Temperature: 32 to 122 °F (0 to 50 °C)
  • Storage Temperature: -13 to 158 °F (-25 to 70 °C)
  • Operating Humidity: 0 to 95% RH @ 35 °C max, non-condensing
  • Storage Humidity:0 to 95% RH @ 35 °C max, non-condensing

Alarms/Monitoring/Control:

  • Front-Panel Indicators
    • Channel / Mode / RF Output: 3-Digit LED Display
    • Video Over-modulation: Red LED
    • Audio Over-modulation: Red LED
    • SAP Audio Over-modulation: Red LED
    • EAS/Alternative IF: Red LED
    • Stereo: Green LED
  • Front-Panel Controls:
    • Channel / Mode /RF Output: Navigation Key-pad
    • Video Level: Potentiometer
    • Audio Level: Potentiometer
    • Aural Carrier Level: Potentiometer
    • SAP Audio Level: Potentiometer
