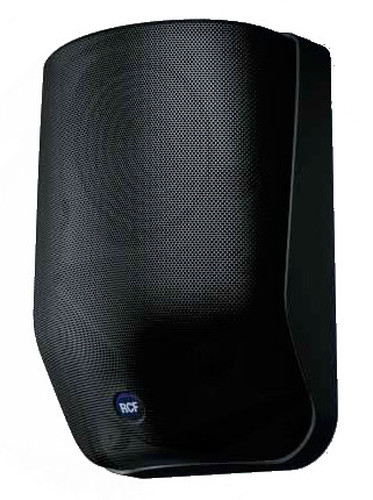

RCF MQ 60H
2-Way Wall Mount Speaker

OUR PART #  MQ60H

Selected Model Price: $189.00
List Price: $224.00

Save up to 16%! (Low Price Guarantee)
Select model: (shipping times are approximate)

Recommended Accessories

RCF's MQ 60H (available in black, white, and silver) is a wall mount monitor speaker designed to guarantee uniform coverage of a large area in order to limit the number of speakers and therefore the installation points.

It is a two-way speaker with three transducers: the 5" woofer and the two horn-loaded dome tweeters with constant directivity are positioned in such a way as to ensure the maximum listening comfort within the area covered. Installation is carried out in two phases: first, you mount the support on the wall and make the electrical connections; when all the works are completed, you insert the speaker and make a quick connection.

Applications:

  • Music applications
  • Audio visual applications
  • Restaurants
  • Places of worship
  • Recreational facilities
  • Shopping malls
  • Pubs

RCF MQ 60H Features:

  • Two way Bass reflex speaker for music reproduction
  • Speaker composed by 5" woofer 5" and 2 x 1" dometweeter
  • Max output power 120 W
  • Bypass configuration input 16 Ohms, output power 60 WRMS
  • 30W - 20W - 10W - 5W output power for 100 V line
  • 15W - 10W - 5W - 2.5W output power for 70 V line
  • 2600 Hz crossover frequencies with attenuation 12/12dB/oct
  • Dynamic Protection on woofer and tweeter

RCF MQ 60H Specifications:

  • Acoustical:
    • Type of speaker: 2 way bass reflex speaker
    • Frequency Response: 100 Hz ÷ 19 kHz
    • Max SPL @ 1m: 109 dB
    • Horizontal coverage angle: 180°
    • Vertical coverage angle: 120°
    • Power Handling: 60 W RMS
    • Peak Power Handling: 120 W PEAK
    • System Sensitivity: 88 dB
    • Impedance: 16 Ohms
    • Crossover frequencies: 2000 Hz
  • Transducers:
    • Speaker: 5"
    • Tweeter: 2 x 1"
  • Input Section:
    • Input connector: 2 euroblock
    • Constant voltage: 100 V, 70 V
    • Power Selection: 30 - 20 - 10 - 5 W (100 V)
  • Cabinet:
    • Hardware: Body in self-extinguishing plastic
    • Grille: Steel
  • Dimensions: 11.69" H x 7.79" W  x 4.8" D
  • Net weight: 6.28 lbs
Link bracket for (2) MQ 60H Speakers to Hang Pendant Style
RCF MQ 60H Link-B Link bracket for (2) MQ 60H Speakers to Hang Pendant Style
RCF's MQ 60H Link-B can be used to support two MQ 60H speakers to form an Omni directional high quality speaker array (360°) dispersion over a horizontal surface which is controlled over a vertical surface.Combining the four ...
Usually ships in 7-14 business days.
Need it sooner? Call us!
30.00 40.00 25
Usually ships in 7-14 business days.
Need it sooner? Call us!

RCF MQ 60H
2-Way Wall Mount Speaker

OUR PART #  MQ60H

Product Information:

RCF's MQ 60H (available in black, white, and silver) is a wall mount monitor speaker designed to guarantee uniform coverage of a large area in order to limit the number of speakers and therefore the installation points.

It is a two-way speaker with three transducers: the 5" woofer and the two horn-loaded dome tweeters with constant directivity are positioned in such a way as to ensure the maximum listening comfort within the area covered. Installation is carried out in two phases: first, you mount the support on the wall and make the electrical connections; when all the works are completed, you insert the speaker and make a quick connection.

Applications:

  • Music applications
  • Audio visual applications
  • Restaurants
  • Places of worship
  • Recreational facilities
  • Shopping malls
  • Pubs

RCF MQ 60H Features:

  • Two way Bass reflex speaker for music reproduction
  • Speaker composed by 5" woofer 5" and 2 x 1" dometweeter
  • Max output power 120 W
  • Bypass configuration input 16 Ohms, output power 60 WRMS
  • 30W - 20W - 10W - 5W output power for 100 V line
  • 15W - 10W - 5W - 2.5W output power for 70 V line
  • 2600 Hz crossover frequencies with attenuation 12/12dB/oct
  • Dynamic Protection on woofer and tweeter

RCF MQ 60H Specifications:

  • Acoustical:
    • Type of speaker: 2 way bass reflex speaker
    • Frequency Response: 100 Hz ÷ 19 kHz
    • Max SPL @ 1m: 109 dB
    • Horizontal coverage angle: 180°
    • Vertical coverage angle: 120°
    • Power Handling: 60 W RMS
    • Peak Power Handling: 120 W PEAK
    • System Sensitivity: 88 dB
    • Impedance: 16 Ohms
    • Crossover frequencies: 2000 Hz
  • Transducers:
    • Speaker: 5"
    • Tweeter: 2 x 1"
  • Input Section:
    • Input connector: 2 euroblock
    • Constant voltage: 100 V, 70 V
    • Power Selection: 30 - 20 - 10 - 5 W (100 V)
  • Cabinet:
    • Hardware: Body in self-extinguishing plastic
    • Grille: Steel
  • Dimensions: 11.69" H x 7.79" W  x 4.8" D
  • Net weight: 6.28 lbs
Link bracket for (2) MQ 60H Speakers to Hang Pendant Style
RCF MQ 60H Link-B Link bracket for (2) MQ 60H Speakers to Hang Pendant Style
RCF's MQ 60H Link-B can be used to support two MQ 60H speakers to form an Omni directional high quality speaker array (360°) dispersion over a horizontal surface which is controlled over a vertical surface.Combining the four ...
Usually ships in 7-14 business days.
Need it sooner? Call us!
30.00 40.00 25
Usually ships in 7-14 business days.
Need it sooner? Call us!
