RCF MQ 100L
3-Way Column Loudspeaker

OUR PART #:  MQ100L

A 3 way column loudspeaker providing natural hi-fidelity speech and music reproduction...
Learn More
Selected Model Price: $251.00
List Price: $355.00
Save up to 29%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

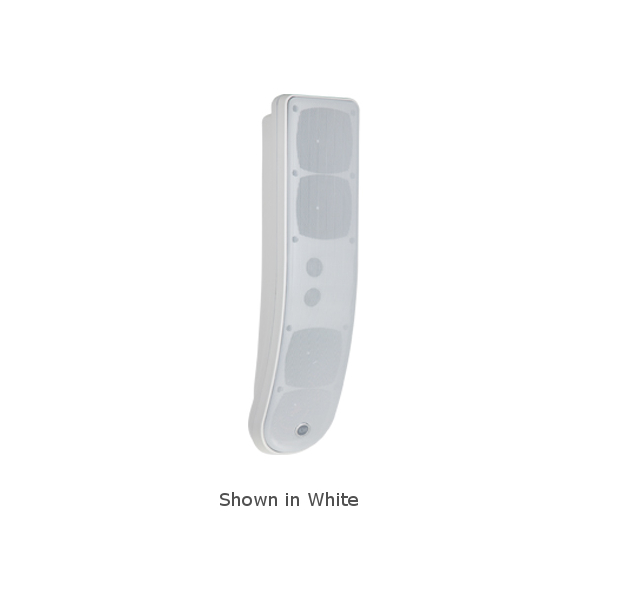

RCF MQ 100L
Select a Model: (shipping times are approximate)
Qty:

Similar Products

A 3 way column loudspeaker providing natural hi-fidelity speech and music reproduction, RCF's MQ 100L is suitable for sound systems having fixed loudspeakers in acoustically critical or architectural constrained environments. It features a wide horizontal coverage angle (180°) and vertical dispersion (60°), delivering accurate sound reproduction in a wide space, helping limit feedback and improve sound directivity. This is important, for instance, in hallways that may have a long reverberation time. Mounting accessories are included. These products have been designed to keep the column in as close proximity as possible to the wall, and to simplify the installation. The tilt angle can be selected among 0° – 5° – 10°. Its 60° vertical dispersion is asymmetric: being the difference between 20° upwards and 40° downwards. The vertical dispersion axis is, in fact, already angled 10° downwards. This makes it unnecessary to tilt the sound column excessively.

Applications include:

  • Foreground / Background Music
  • Distributed Speech Reinforcement
  • AV Production / Playback
  • Pubs and Restaurants
  • Shopping malls

RCF MQ 100L Features:

  • 2 rubber surround 3.5" woofers
  • 2 fabric surround 3.5" mid-woofers
  • 2 cloth coated 0.75" dome tweeters
  • 40 / 80 Watt (RMS/Music Power)
  • Frequency range 130 Hz ÷ 20 kHz
  • 118 dB (80 W/1 m) max. SPL
  • Incl. 100V transformer multitap
  • Power rotary switch
  • Direct connection to Low-Z speaker lines
  • Easy to install
  • Simple power settings

RCF MQ 100L Specifications:

Audio/Acoustical:

  • Frequency Response -10 dB: 130 Hz ÷ 20 Hz
  • Max SPL @ 1m: 118 dB
  • Horizontal coverage angle: 180°
  • Vertical coverage angle: 60 (+ 20, - 40)°
  • System Sensitivity: 93 dB
  • Nominal Impedance: 16 O
  • Power Handling: 80 W
  • Peak Power Handling: 320 W
  • Protections: PTC on tweeter
  • Crossover frequencies: 2000 Hz

Transducers:

  • Tweeter: 2 x 0.75" cloth coated dome tweeters
  • Midrange: 2 x 3.5" fabric surround mid-woofers
  • Woofer: 2 x 3.5" rubber surround woofers

Input Section:

  • Input connector: euroblock

Cabinet:

  • Cabinet Material: Self-extinguishing (HB level) high density polystyrene
  • Grille: Steel
  • Color: Choice of Black or White; please specify when ordering

Physical:

  • Dimensions (HxWxD):
    • Product: 20.8" x 4.7" x 6.5" (510 x 120 x 166.8mm)
    • Shipping: 21.65" x 7.08" x 7.08" (550 x 180 x 180mm)
  • Net Weight:
    • Product: 6.6 lbs (3 kg)
    • Shipping: 7.7 lbs (3.48 kg)

Note: All information is subject to change at any time and without notice.
