The Light Source MTP16
16" Mega-Truss Pick 1 Ton Truss in Silver

OUR PART #  MTP16

Our Price: $141.75
List Price: $225.00
You save 37%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

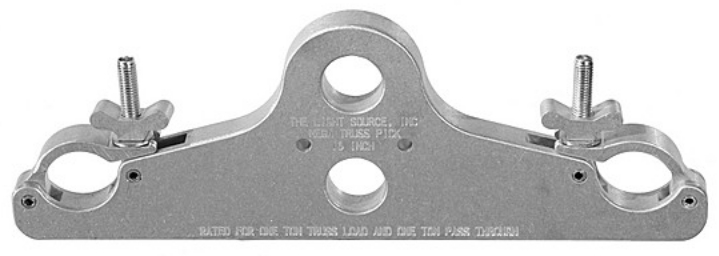

The Light Source produces the MTP16, a 16" Mega-Truss Pick 1 Ton Truss that comes in Silver.

This unit is machined with pockets to support one piece of 16" truss. Truss is secured by two aluminum pivoting links, half inch swivel bolts, and The Light Source's solid wing nuts. This item has two rigging holes for shackles, motor, or chain hook. The Mega-Truss Pick will suspend one ton of truss, and an additional one ton load suspended under the truss.

NOTE: These do not fit a Global Truss or Applied Truss. See Global Truss Picks for correct part # to order. For Applied Truss you will need to contact The Light Source with specifications.

The Light Source MTP16 Specifications:

  • Safe Vertical Working Load: 1 ton truss
  • Hardware: 1/2"-13 steel swivel eyebolts with solid aluminum wing nuts
  • Diminsions:
    • 1"×6"×17-3/8"
    • Actual single center holeis 1.5" wide
  • Weight: 5 pounds

The Light Source MTP16
16" Mega-Truss Pick 1 Ton Truss in Silver

OUR PART #  MTP16

Product Information:

The Light Source produces the MTP16, a 16" Mega-Truss Pick 1 Ton Truss that comes in Silver.

This unit is machined with pockets to support one piece of 16" truss. Truss is secured by two aluminum pivoting links, half inch swivel bolts, and The Light Source's solid wing nuts. This item has two rigging holes for shackles, motor, or chain hook. The Mega-Truss Pick will suspend one ton of truss, and an additional one ton load suspended under the truss.

NOTE: These do not fit a Global Truss or Applied Truss. See Global Truss Picks for correct part # to order. For Applied Truss you will need to contact The Light Source with specifications.

The Light Source MTP16 Specifications:

  • Safe Vertical Working Load: 1 ton truss
  • Hardware: 1/2"-13 steel swivel eyebolts with solid aluminum wing nuts
  • Diminsions:
    • 1"×6"×17-3/8"
    • Actual single center holeis 1.5" wide
  • Weight: 5 pounds
