EAW-Eastern Acoustic Wrks KF740P
700W 3-Way Line Array Installation Speaker

OUR PART #:  KF740P

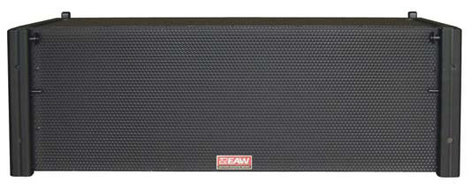

EAW's KF740P is a tri-amplified, installation-only, three-way, full range system in a trapezoidal line array module.
Learn More

Call for price! Not available online.
List Price: $7,195.00

Select model: (shipping times are approximate)
Similar Products

EAW's KF740P is a tri-amplified, installation-only, three-way, full range system in a trapezoidal line array module. Four 10-in LF cones, sealed, phase-aligned; dual 8-in MF cones, horn-loaded; dual 1.4-in exit HF compression drivers, horn-loaded. 90 degree (h) by 12 degree (v) nominal coverage pattern per module. Actual vertical beamwidth varies with array configuration.

NOTE: Available in white and black (shown above).

EAW KF740P Specifications:

  • Operating Range (-10 dB, Hz): 50 - 20k
  • Axial Sensitivity (dB SPL):
    • LF: 93
    • MF: 107
    • HF: 110
  • Power Handling / Impedance (Watts @ Ohms):
    • LF: 700 @ 8 (2x)
    • MF: 625 @ 8
    • HF: 200 @ 8
  • Calc. Max. Out Peak (dB SPL):
    • LF: 130
    • MF: 141
    • HF: 139
  • Calc. Max. Out Long Term (dB SPL):
    • LF: 124
    • MF: 135
    • HF: 133
  • Nominal Coverage (degrees):
    • Horizontal: 90
    • Vertical: 12
  • Subsystems:
    • LF: 4x 10-in cone, sealed, phase aligned
    • MF: 2x 8-in cone, horn-loaded
    • HF: 2x 1.4-in exit compression driver, horn-loaded
  • Dimensions (inches/millimeters)
    • Height (front): 13.00/330.2
    • Height (rear): 9.58/243.4
    • Width: 40.10/1018.5
    • Depth: 17.56/446.0
    • Trap. Angle (degrees, top and bottom): 6
  • Weights (pounds/kilogram)
    • Net (approx.): 107/48.6
    • Shipping (approx.): 120/54.4
