Product Overview

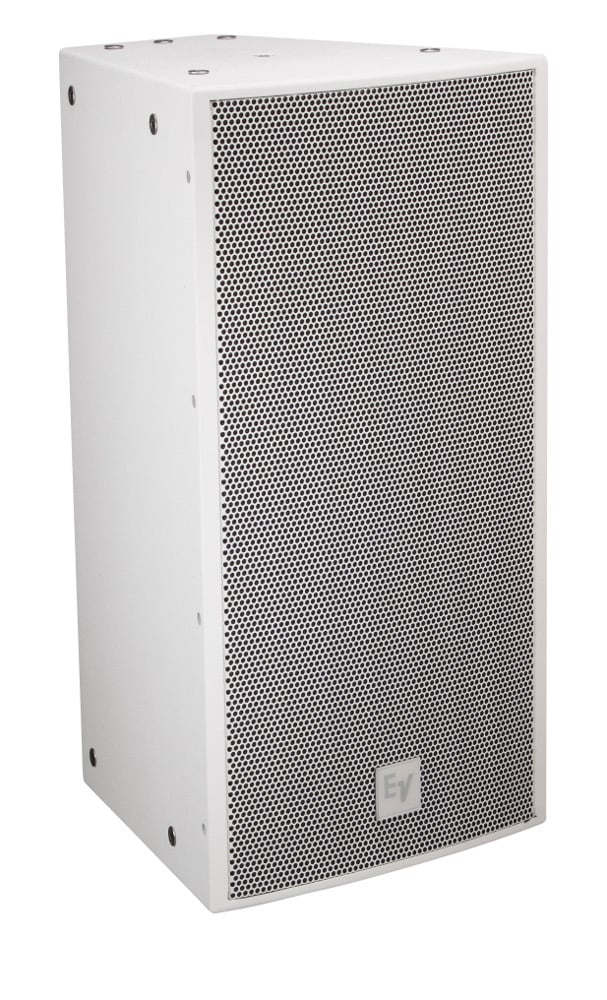

Electro-Voice's EVF-1122S/126 is a single 12" two-way 120° x 60° full-range loudspeaker system.

Every EVF trapezoidal enclosure is constructed out of weather-resistant birch, and coated with EVCoat for maximum protection from the elements. EVF's unique acoustic and rigging designs allow for vertical and horizontal clusters to be built using any combination of loudspeakers from both the entire EVF & EVH Series. With an assortment of full-range, low-frequency, and subwoofer loudspeakers, the EVF Series provides the tools to maximize the flexibility of system design, no matter what the application and budget. EVF's innovative input panels provide the choice of Phoenix-type connectors (included in all standard models), or allow the easy addition of a dual NL4-type connector cover plate or gland nut cover plate (for weatherizing applications - both additions sold separately). An externally accessible jumper also selects passive or active operation, and an available 70.7/100V transformer kit (sold separately ) simply mounts to the input panel for use in distributed systems. All features provide the flexibility to manage more venues with less equipment, while quickly and precisely addressing customer requirements.

Electro-Voice EVF-1122S/126 Specifications:

  • Input Connections: Phoenix/Euroblock style screw terminals
  • Frequency Response:
    • -3 dB: 58 Hz - 16 kH
    • -10 dB: 49 Hz - 19 kHz
  • Recommended High-Pass Frequency: 65 Hz
  • Sensitivity 1 W/1 m: 98 dB
  • Max. SPL/1m (calc): 131 dB
  • Coverage (Nominal -6 dB): H: 120 °, V: 60 °
  • System Power Handling (Continuous/Program/Peak): 500 Watts
  • LF Transducer: SMX2121, 12" (305mm) Driver
  • HF Transducer: ND2B, 2" (51 mm) Diaphragm Compression Driver
  • Crossover Frequency: 1450 Hz
  • Nominal Impedance (Passive): 8 Ohms
  • Minimum Impedance: 6 Ohms
  • Enclosure Material: 13-Ply Weather-Resistant Birch
  • Grill: 16 GA Galvanneal, Powdercoat, with Rotatable Logo
  • Suspension: (22) M10 Threaded Points
  • Dimensions: 30.26" H x 16" W x 16.27" D (768.6 x 406.3 x 413.3 mm)
  • Net Weight: 63.05 lbs (28.6 kg)

NOTE:

Available in white and black.
