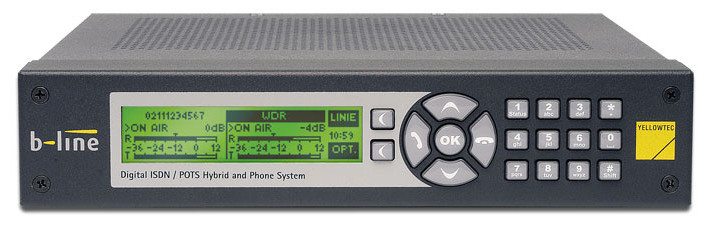

Yellowtec USA YT6030
Dualline Digital Hybrid Phone System

OUR PART #  YT6030

Call for price! Not available online.
List Price: $5,980.00

The b-line XT YT6030 is an advanced dualline digital hybrid phone system. Yellowtec has integrated all common Telco interfaces into a compact, dual channel telephone hybrid system, offering unique, versatile connectivity. ISDN, analog POTS and VoIP make b-line XT a flexible, comprehensive solution. Thanks to progressive design, we’ve built a pioneering product that caters to the future of VoIP today.

b-line XT is more than just a dual hybrid, it’s a fully-loaded Talkshow System. It handles two lines for call-in/call-out, with all the features you would expect from a smart screener system. Not only does the unit include free Talkmaster Software, it’s also optimized for use with touch screens, so convenient control of all the inclusive functions is literally at your fingertips.

The built-in sound processing delivers pristine audio for exceptionally clear calls. Our expander and AGC technology shapes the caller signal, so it sounds powerful and lucid with little distortion. Plus, the echo canceller reduces the possibility of feedback in open speaker applications, and ensures that variable run times of digital Telco lines will never be a problem.

With an assortment of appropriate ports, you have options: connect up to 2 handsets (RJ11) when you simply prefer to pre-talk in privacy. Or connect one or two analog telephones (RJ12) with full dial functionality. The b-line XT brings freedom and flexibility to a new level.

If you prefer keys over a touch screen, the b-line XT keypad offers the perfect solution. We designed it to be completely intuitive, with control over your incoming calls, the ability to pre-talk and transfer calls to air.

Yellowtec's powerful screener software is optimized for touch screens, and it’s included with no additional cost. Large, clearly displayed keyboard fields with distinct functions make operation both intuitive and reliable. It can even accommodate setups with as many as three PCs.

One look at the rear panel of b-line XT and you’ll be amazed by the incredible number of ports. Connecting two telephones or simply two handsets, connecting ISDN or POTS, connecting analog audio or AES3, serial or parallel controls – it features everything to meet your connectivity needs for a variety of applications.

In addition to a serial interface (DB9), we give you a parallel control i/O connector (DB9), allowing the b-line XT to integrate seamlessly into your studio setup. For your convenience we even kept the i/Os user-programmable.

b-line XT comes with a DTMF generator, as well as an integrated DTMF analyser. An ideal feature for call-ins, it ensure callers who dial the correct code first will be highlighted within the Talkmaster application software.

Yellowtec YT6030 Includes:

  • b-line XT
  • 19" Rack
  • Mounting Kit
  • b-line Software Talkmaster XT
  • Wall PSU
  • Manual

Yellowtec YT6030 Features:

  • Dual hybrid: Two individual digital 2nd generationhybrids with presets for international telco line adaption.
  • POTS + ISDN + VoiP (optional): POTS/ISDN connectivityComes Standard. VoIP is a software Option; a license key can be purchasedanytime.
  • Talkmaster Software Package: Screener software withcomprehensive functionality and fluid design. Optimized for touchscreen usage.Connects over Ethernet via LAN interface. One license ships for free.Additional licenses can be purchased (up to a tota of three can be used.)
  • LAN interface: Ethernet interface for Talkmaster sitesand AoIP.
  • Analog and AES3 audio interfaces: Audio interfaces areanalog (balanced studio level) and AES3 on XLR. A/D is selectable in systemsetup.
  • Digital echo canceler: Both hybrids incorporatespecial echo cancellation (up to 100 ms) for tricky VoIP and cellular calls,as well as adaptive function that reduces feedback possibility in open-speakerapplications.
  • Conferencing: Unique functionality allows combiningcaller signals for common PreTalk .
  • Database support: Talkmaster data can be stored in adatabase. Incudes functions like Blacklisting.
  • Keypad (optional): Two keypads can be connected to theRS232
  • Convenient PreTalk: Separate PreTalk interface foroff-air conversation. Specific function key available in Talkmaster softwareand on keypad.
  • AGC: Perfectly balanced AGC delivers a smooth,consinstant caller level.
  • Expander: Helps reduce caller Signal noise.
  • 16-second Internal MOH memory: Record up to 16 secondsof Music-on-Hold audio.
  • Two handset/headsets connectors: RJ11 connectors forstandard analog handset or headset.
  • Two Telephone connectors
    Forstandard analog telephones (RJ12).
  • Full frontpanel control: All b-line functions arefully accessible via the front panel keypad. Helpful, when installed remotely.
  • Backlit Display: Shows line status, level indicators,configuration and settings.
  • Serial control interface: 2x RS232 interface. Connectstwo keypads.
  • GPI/GPOs: 4xGPI/4xGPO as TTL, 2xGPO on programmablerelays.
  • Wordclock Sync: Wordclock input on XLR.
  • Compact form factor: 19 1/2 wide, 1U high. 19" rack mounting kit included.Dual mounting kit optional.
