Grundorf GT-5301-6F GT Series 15" 3-Way Bass Reflex Loudspeaker with Six 2x2 Flypoints

OUR PART #: GT-5301-6F

Copied to clipboard

The GAD GT-5301™ is a three-way, bass reflex loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. ...Read more

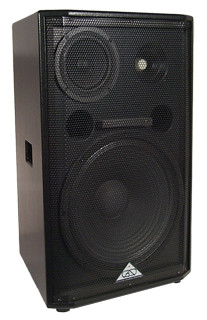

Grundorf GT-5301-6F GT Series 15" 3-Way Bass Reflex Loudspeaker With Six 2x2 Flypoints Image 1
Grundorf GT-5301-6F GT Series 15" 3-Way Bass Reflex Loudspeaker With Six 2x2 Flypoints
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The GAD GT-5301™ is a three-way, bass reflex loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT-5301™ is available with optional 3/8"-16 threaded mounting points which permits safe, load-rated suspension in permanent installations.

The GT-5301™ is designed for near field / far field applications where a smooth, dynamic range is needed. The GT-5301™ is an ideal choice for either analog or digital reproductions where clean, clear response is a must. The GT-5301™ boasts a wide-range dispersion for portable A/V events or even for side fill or delay monitoring applications.'

Grund Audio GT-5301-6F Specifications:

  • Power Handling :
    • (RMS): 350 Watts
    • (Program): 350 Watts
    • (Peak to Peak): 1400 Watts
  • Frequency Response: 40 Hz - 19.5 kHz
  • Sensitivity (1W @ 1M): 99 dB SPL
  • Nominal Impedance: 8 ohms
  • Dispersion
    • Horizontal 90°
    • Vertical 90°
  • Components:
    • Low Frequency Driver: 15" Cone
      • Cone Material: Weather-Treated paper
    • Medium Frequency Driver: 6" Cone
    • High Frequency Driver: 1" Compression Driver
  • Crossover Frequency: 400 / 2.2 kHz
  • Enclosure Type: Trapezoidal 15°
  • Grille: Powder-Coated, Perforated Steel
  • Connectors: Two NL4 Speakon®
  • Product Dimensions: 28.75"(H) x 18.50"(W) x 18.50"(D)
  • Product Weight: 60.0 Lbs
