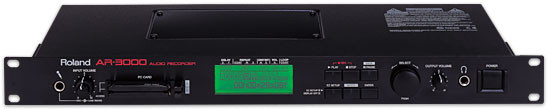

Roland System Group AR-3000SD
Digital Announcement Recorder with Network Capability

OUR PART #:  AR-3000SD

The Roland AR-3000 can store and play back up to 2,000 audio phrases with 24-bit digital sound quality.
Learn More
Our Price: $1,495.00
Write the first review.
Roland System Group AR-3000SD
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Roland AR-3000 can store and play back up to 2,000 audio phrases with 24-bit digital sound quality. Instead of moving parts, this rackmount recorder uses industry-standard PC cards to record and play back phrases—making it ideal for theme parks, museums, or other places where reliable audio playback is needed.

Roland AR-3000SD Features:

  • Rackmount digital audio recorder using PC card storage technology
  • Records and plays back up to 2,000 audio phrases with24-bit, 48kHz sound quality
  • Audio/MIDI phrases can be triggered via MIDI, RS-232Cor GPI
  • Can be used in stereo or dual mono applications
  • AR-LINK function for up to 64 tracks of sync'd playback using one AR-3000 and multiple AR-200 units
  • Optional network board (AR-NTI) allows data transfer and remote operation via a network
  • Syncs to external MTC
  • Includes ARE soundcard and editing software for PC

Roland AR-3000SD Specifications:

  • Recording Format: RDAC (Roland Digital Audio Coding)
  • Recording Media: PC card (PC Card Standard (1995) compatible)
  • Number of Phrases:
    • Maximum 1000 phrases (when 1 PC card is used),
    • Maximum 2000 phrases (when 2 PC cards are used)
  • Phrase Types: Audio phrases (stereo/mono), MIDIphrases
  • Playback Methods
    • Program playback: 100 phrases, 5 patterns
    • Direct playback: 16 phrases, 4 mode (Normal/Fisrt-in/Last-in/Sequence)
    • Binary playback: 2000 phrases
    • MIDI playback: 2000 phrases
    • RS-232C playback: 100 phrases
    • AR-LINK playback: 2000 phrases
  • Master Equalizer
    • High: -12 dB to +12 dB (3/6 kHz, shelving type)
    • Low: -12 dB to +12 dB (200/400 Hz, shelving type)
  • Inputs
    • MIC input (unbalanced):Input sensitivity: -50 dBu
    • Nominal input level: -40 dBu
    • Input impedance: 2 k
    • Line inputs (unbalanced): Input sensitivity: -16 dBu
    • Nominal input level: 0 dBu
    • Input impedance (stereo): 20 kOhms (mono) 10 kOhms
  • Outputs:
    • Audio outputs (balanced): Nominal output level: +4 dBu
  • Output impedance: 500 Ohms
  • Digital Input: Coaxial type (S/P DIF)
  • Synchronization: MTC (master/slave), MMC(master/slave), AR-LINK (master/slave), Multi Recording/ Playback (master/slave)
  • Power Supply: AC 117V, AC 230V or AC 240V
  • Power Consumption: 13W (AC 117V), 14W (AC 230V, AC240V)
  • Options
    • AR-NT1 (network board), RSC-15APL (AR-LINK Cable)
  • Size and Weight
    • Width: 19"
    • Depth: 9-1/8"
    • Height: 1-3/4"
    • Weight: 6 lbs.
