Matrox MVX-D5150F
Matrox Maevex H.264 Decoder

OUR PART #:  MVX-D5150F

The MVX-D5150F from Matrox is a Maevex™ Decoder which is needed for each output in your video network environment.
Learn More
Our Price: $549.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Matrox MVX-D5150F
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The MVX-D5150F from Matrox is a Maevex™ Decoder which is needed for each output in your video network environment. You can daisy chain the network connections for your decoder units by connecting one decoder to another.

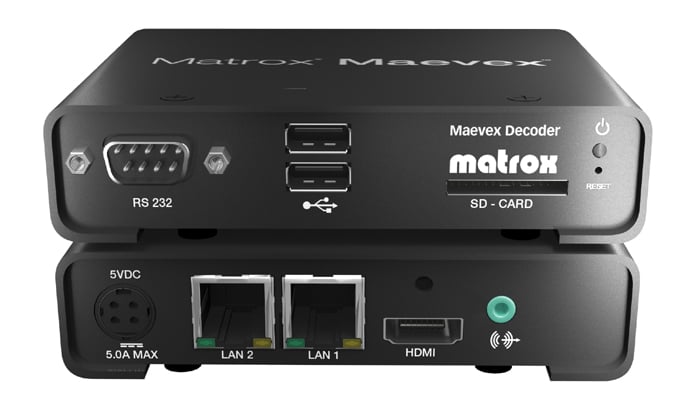

NOTE: Product shown in image is for illustrative purposes only. Actual product is just a single decoder unit.

The Matrox Maevex video distribution over IP solution consists of the Maevex 5100 Series encoder/decoder pair that extends 1080p60 video and audio over a standard IP network. The Maevex Encoder captures video and audio from a host PC or another media source and seamlessly extends the signals to one or more Maevex Decoders via standard networking equipment, such as switches, routers, and CATx cabling. The technology’s H.264 encode/decode platform delivers Full HD, excellent-quality video extension over standard LAN connectivity at user-defined low bit rates for minimal network bandwidth consumption. The robust Matrox PowerStream software application is used to remotely discover, manage, and adjust the Maevex network and lets administrators conveniently define multiple stream parameters and balance network bandwidth consumption if necessary. Maevex hardware architecture, I/O functionality, and PowerStream features combine to yield an excellent-quality video over IP solution at a cost-effective price for a wide variety of applications.

Maevex Video over IP—Any Video, Anytime, Anywhere!

MVX-D5150F Applications:

  • Maevex video over IP solutions can be applied to drive dynamic digital signage for retail and restaurant environments, transportation, banking, healthcare, and other sectors. Maevex can also distribute high-quality video in such sectors as healthcare (non-digital signage) and for academic and instructional technology and training, where zero latency is not required. The need for high-quality video distribution on non-proprietary, standardized IT equipment is common in these application areas, with Maevex serving as an excellent, cost-effective solution.
  • Additionally, Maevex can serve collaborative video wall and control room environments by making it easier to integrate data and video. In control rooms for example, Maevex serves as a seamless, standardized IT solution to deliver desktop, video, and other content to the video wall aswell as share operator display outputs, desktops, and applications.
  • Within these environments, Maevex takes full advantage of existing and standardized COTS IT networking equipment and networks, employing them to send data, as well as high-quality, Full HD video at very low bandwidth. Maevex consequently possesses tremendous value due to its low price point, but also its overall cost-effectiveness, leveraging standardized COTS networking equipment and providing excellent quality at low bandwidth.

Matrox MVX-D5150F Decoder Includes:

  • Maevex Decoder unit
  • Power supply, power cords and adapters (see “Power supply” below)
  • Quick setup guide and release notes (if applicable)

Matrox MVX-D5150F Decoder Features:

  • Cost-effective extension over a standard IP network
  • Excellent image quality with very low network bandwidth consumption
  • Extend Full HD, 1080p 60 and 1920 x 1200 video and audio
  • Support for wide-screen and standard aspect ratios anda wide variety of resolutions
  • Scale streams locally before distributing them overthe network to lower bandwidth consumption
  • Scaling and cropping features enable flexible display of source content on the Decoder output
  • Open encoding enables non-Maevex software decode through VLC player software
  • Operates on standard 10/100/1000Mb Ethernet networks
  • Decoder integrated network switch allows for Maevex daisy-chaining, network extension, and redundant network topology
  • Allows user-defined fine-tuning of encoding and decoding process and network bit rate
  • Features a solid-state, energy-efficient design for high MTBF and long product life cycles
  • Matrox PowerStream software application allows for multiple instances and remote management of the Maevex network
  • HDMI or analog audio support
  • Local real-time pass-through and confidence preview on Encoder
  • Detailed LED indicators for easy and effective troubleshooting
  • PowerStream auto-detection and discovery of Maevex units on subnet (DHCP server required)
  • Failure resilience—power, network, and device auto-recovery features
  • PowerStream-controlled user access from secured PC
  • Convenient access to device ID, IP address, streaming state, bit rate, and other vitals in PowerStream

Matrox MVX-D5150F Decoder Specifications:

  • Network Connectors: 2 x RJ45 (fully switched)

Video Output

  • HDMI with digital L-PCM audio
  • Resolutions up to 1920 x 1080p 60, 1920 x 1200(60Hz) and many more wide-screen and standard-definition resolutions
  • ProcAmp control: contrast, brightness, saturation, hue
  • Destination cropping support
  • Audio Line-Out: 3.5mm analog stereo audio

Video Encoding / Decoding

  • Single-Channel HD: Up to 1920 x 1080 p60 and 1920 x1200 (57Hz - TBC) and many more wide-screen and standard-definition resolutions
  • Compression Standard: H.264/Mpeg4 Part 10 (AVC)
  • Profiles: Baseline, Main, High
  • Levels: Up to 4.2
  • Bit Rates: 100Kbps to 25Mbps
  • Rate Control: CBR, VBR, Favor Speed, Favor Quality

Audio Encoding/Decoding

  • Compression Standard: MPEG4 AAC-LC
  • Channels: 2 channel (stereo)
  • Sample Frequency: 32, 44.1, and 48kHz
  • Bit Rates: 96, 128, 192, and 256Kbps

Networking Interface

  • 10/100/1000base-T Ethernet
  • Streaming Protocols: UDP, RTP/RTSP/RTCP
  • Command & Control Protocols:
      -  HTTP/HTTPS
     -  IPV4 Support
      -  Unicast, Multicast and MultiUnicast
      -  DHCP (Default) / Fixed IP Address Support
     -  CAT5-or-Better Network Cables

Management Software

  • Central Command and Control Application:
      -  Resides on any PC network node
      -  Maevex network configuration & control
      -  Encoding and decoding control and manipulation
      -  Frame rate and resolution control
     -  Password protection
      -  Failsafe over the network FW updates
  • OS Support*:
      -  Windows® 8 (32-bit, 64-bit)
     -  Windows Server® 2012
      -  Windows 7 (32-bit,64-bit)
      -  Windows Server 2008 R2
  • NOTE: * Microsoft .NET 4.5 is required for all

Power Supply

  • 100-240V AC In, 5VDC Out, 15W
  • DIN4 Locking Power Connector
  • Power Cords/Adapters Included: US, EU, GB/HKG, AU/NZL

Regulatory

  • CE/FCC/VCCI/ICES/C-Tick/KCC Class B
  • ROHS/WEEE

Environmental

  • Operating Temperature: 0° to 45° Celsius (32° to 113° Fahrenheit)
  • Non-Operating Temperature: -40° to 55° Celsius (-40° to 131° Fahrenheit)
  • Operating Humidity: 20% to 80% (non-condensing)
  • Non-Operating Humidity: 5% to 95% (non-condensing)

MTBF

  • Decoder: 164.81 years @ 40° Celsius (104° Fahrenheit) (excl. power supply)
  • External Power Supply: 11.45 years @ 25° Celsius (77° Fahrenheit), full load
  • Fanless (no moving parts)

Mechanical

  • Dimensions Decoder: 12.83cm x 2.59cm x 10.9cm (5.05” x1.02” x 4.29”)
  • Weight Decoder: 286g (10.09 oz). (excl. external power supply and power cords)
  • Rackmounting (optional rackmount tray)
  • Decoder: triple density - 1u (horizontal mount); or 10-unit density in 3u(vertical mount)
