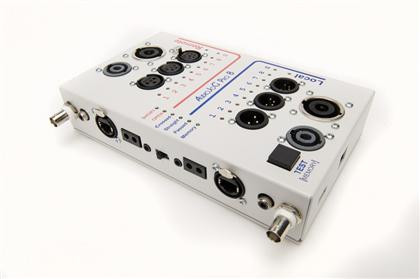

Caldwell Bennett TESTER-AJP8-LRG Audio Jog Pro 8 Audio Cable Tester

OUR PART #: TESTER-AJP8-LRG MFR #: TEST-LG

Copied to clipboard

ALL new AudioJog Pro 8 cable tester with SINGLE & DOUBLE ended testing. ...Read more

Caldwell Bennett TESTER-AJP8-LRG Audio Jog Pro 8 Audio Cable Tester Image 1
Caldwell Bennett TESTER-AJP8-LRG Audio Jog Pro 8 Audio Cable Tester Image 2
Caldwell Bennett TESTER-AJP8-LRG Audio Jog Pro 8 Audio Cable Tester Image 3
Caldwell Bennett TESTER-AJP8-LRG Audio Jog Pro 8 Audio Cable Tester Image 4
Caldwell Bennett TESTER-AJP8-LRG Audio Jog Pro 8 Audio Cable Tester
Our Price: $272.62
List Price: $359.90
You save 24%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

ALL new AudioJog Pro 8 cable tester with SINGLE & DOUBLE ended testing. This is also a LAN cable tester and an Ethernet cable tester

Caldwett Bennett Cable AudioJog Pro 8 Features:

  • There are 2 rows of 9 LED's corresponding to each of the possible connector pins of the AudioJog Pro 8 – Cat 5e Network Cable Testers and one for the screen (or ground) connection. As each pin is activated, the LED's indicate all connections associated with that pin, so that short, open and crossed circuits can be easily found. The LED's also show the possibility of high resistance or leakage connections. 2 LED's indicate a good digital network connection, either Straight through, or Crossed over.
  • Memory option:
    • There are 4 LED's indicating the state of the MEMORY option.
    • If the MEMORY LED is on, then AudioJoG Pro 8 automatically scans all the connections and compares against information held with just one press of the test button.
    • MEMORY works in both test modes.
  • Test modes for AudioJog Pro 8 Cat 5e Cable Testers:
    • Double ended - both ends of the cable under test are plugged into AudioJoG Pro 8.
    • Single ended - one end of the network cable under test is plugged into AudioJoG Pro 8 the other into another AudioJoG Pro 8.

Connectors for the AudioJog Pro 8 – Cat 5e Network Cable Testers:

  • 3, 4 & 5 Pin XLR Male & Female
  • 1/4" stereo or mono
  • Single or Twin 4.4mm Bantam, stereo or mono
  • 1/8" stereo or mono
  • 2, 4 & 8 Pole Speakon
  • DIN 3, 5 & 8 Pole
  • MINI DIN 4 Pole (S Video)
  • RCA
  • BNC
  • RJ45, Ethercon
  • USB A & B
  • Red & Black "banana"

Caldwell Bennett Cable Audio Jog Pro 8 Specifications:

  • Double {Single} Ended
    • Continuity and Short Circuits, less than 255K {75K} ohms
    • Open Circuits (end to end and between connected pins), greater than 255K {75K} ohms.
    • Less than 2 {5} second test time
    • L 203mm W 150mm D 50mm
    • Uses 9v PP3 battery (not supplied) Continuity and Short Circuits, less than 255K {75K} ohms.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Reviews

Reviewed by 2 customers
(2 are Verified Buyers.)

Write a Review

There are no reviews to display with the selected filters.

robert l on 12/28/2021 Verified - This reviewer has purchased this product

This is the second one we have purchased because in pairs they are even more useful. See the other review about the quality and longevity of the painted indicators and remember to seal/laminate/clear coat before much use to keep it prettier and easier to use but as far as function this is an outstanding device.

This cannot be empty.
This cannot be empty.
This cannot be empty.
Please Enter your First Name Please Enter your Last Initial
This cannot be empty.
500 characters remaining
Please Enter your Feedback

Thank you for submitting your comment. It is in a queue to be moderated.

robert l on 12/15/2021 Verified - This reviewer has purchased this product

amazing features especially the memory (once you get the hand of how to use it), however in a commercial environment (production equipment rental) the painted-on face damaged (scratched-off) very easily and very quickly when the speed at which cables needed testing created inevitable hits to the surface as they were inserted and removed. By all means get this but immediately cover the painted surface with some laminate or clear-coat. Suggest the manufacturer consider this.
