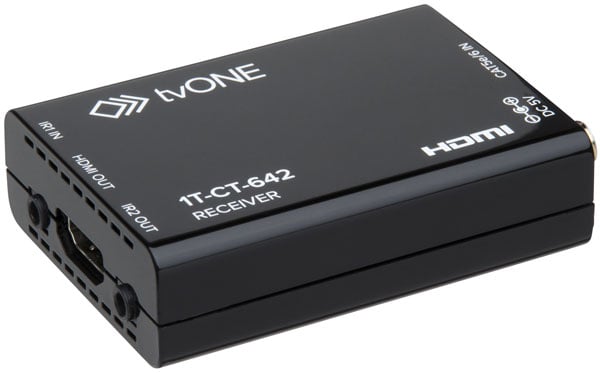

TV One 1T-CT-642
HDMI over Single CAT.5e/CAT.6 Receiver

OUR PART #:  1T-CT-642

Our Price: $180.00
Write the first review.
TV One 1T-CT-642
In Stock

Related Products

HDMI over Single Cat.5e/Cat.6 system consists of a 1T-CT-642 Receiver coupled with a 1T-CT-641 Transmitter (each purchased separately) which employs HDMI v1.4 capability and the HDBaseT-Lite technology to allow transmission of uncompressed, 1080p high definition television signals over a single Cat.5e or Cat.6 cable. (This is the type cable typically employed for Ethernet computer networks). HDMI v1.4 signals - including 3D and 4k UHD formats - are supported and the system will also allow DVI signal transmission with appropriate DVI to HDMI Cable adapters. In addition, embedded LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio capability is standard. The 1T-CT-641/1T-CT-642 system can achieve signal distribution distances of up to 60 meters (197 feet) for uncompressed HDMI signals without signal degradation. A screw on power adapter cable prevents inadvertent disconnection of power.

TV One 1T-CT-642 Includes:

  • 1x Receiver (1T-CT-642) unit
  • 1x IR Receiver (with 1T-CT-642)
  • 1x Operations Manual
  • 1x Power Adapter: US, UK or Euro
  • 1x User Manual
  • 1x IR Transmitter or Receiver Extender

TV One 1T-CT-642 Features:

  • HDMI w/3D, 4k (24hz/30Hz), HDCP 1.1 & DVI 1.0
  • Uncompressed HDMI signal distribution to 60m/197ft
  • Class B (HDBaseT-Lite) technology
  • Supports Embedded HDMI Lossless Digital Audio
  • Full HD resolution support (1080p @ 60Hz/36bit)
  • UHD support (4k @ 30Hz)
  • HD 3D formats & PC resolutions up to WUXGA
  • Supports HDCP Repeater and CEC bypass
  • Single Cat.5e/Cat.6 Ethernet cable via RJ45
  • Bi-directional infrared remote control extensions
  • Supports DVI when using Optional HDMI to DVI Adaptors

TV One 1T-CT-642 Specifications:

  • Video I/O: 1T-CT-642 Rx-HDMI Output 1x via HDMI Connector
  • Cat.5e/Cat.6 Cable I/O: 1T-CT-642 Rx – Cat.5e/Cat.6Input: 1x via RJ45 Connector
  • Additional I/O: Connectors (per unit): 2x 3.5mmmini-jack (Infrared)
  • Supported Signals & Protocols: Industry Standards: HDMI v1.4 (3D, 4k), HDCP, DVI 1.0, Infrared
  • Video Performance: Maximum Resolution: HD up to 1080p@ 60Hz/36bit, UHD to 4k @ 30Hz, PC to WUXGA
  • Audio Support: Formats Supported: LPCM 7.1CH, DolbyTrueHD, Dolby Digital Plus & DTS-HD Master
  • HDBaseT-Lite Class B Support: Maximum Bandwidth: Uncompressed Video/Audioto 10.2Gbps/300MHz

Maximum Range

  • 1 x 1T-CT-641/642 Tx/Rx System:
    • 60m (197 ft.) at 1080p @ 60Hz
    • 40m (131ft.) at 4k @ 30Hz


  • Operating Temperature: +32° to +104° F (0° to +40° C)
  • Operating Humidity: 20% to 90%, Non-condensing
  • Storage Temperature: -4° to +140° F (-20° to +60° C)
  • Storage Humidity: 20% to 90%, Non-condensing
  • Warranty: Limited Warranty - 3 Years Parts and Labor
  • Regulatory Approvals:
      - Encoder/Decoder Unit: FCC, CE, RoHS
     -  Power Supply: UL, CUL, CE, PSE, GS, RoHS
  • Cable Requirements (T/R): Ethernet Cable: Highest Quality Single Cat.5e or Cat.6 cable (UTP or STP)
  • Mechanical (H-W-D): 1T-CT-641Tx, 1T-CT-642 Rx:22.5x55x76.5mm (0.87x2.17x3.01")
  • Weight: 1T-CT-642: Receiver 64g (0.14 lbs.)

Power Requirement:

  • External Power Supply: 5VDC @ 2.6A Locking Connector
