Product Overview

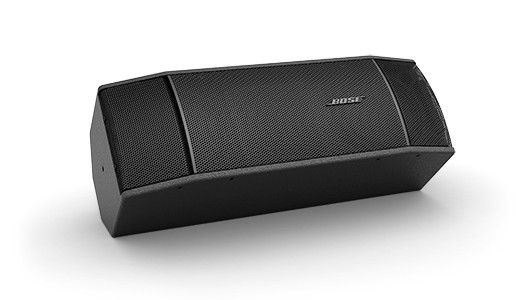

The Bose RoomMatch Utility RMU208 small-format sound reinforcement loudspeaker is intended for use in high-quality foreground music, under-balcony, zone fill and vocal-range floor monitor applications. The design features a single Bose EMB2 compression driver to provide mid/high frequency voicing similar to that of RoomMatch full-range array modules. Dual 8" woofers provide full-range output and a multi-angle enclosure increases mounting flexibility.
Bose RMU208 Features:
- Award-winning RoomMatch sound now in a smaller 2-way point-source design for high-level foreground music, under-balcony, zone-filland vocal range floor monitor applications
- Bose EMB2 compression driver for lower distortion and improved vocalclarity compared to conventional foreground/fill models; also provides consistent mid/high sonic character compared to that of RoomMatch full-range and other RoomMatch Utility models
- 90° x 60° constant-directivity high-frequency horn gives wide, even coverage and may be rotated in enclosure
- 2x Bose LF8 8" woofer with 2.0" extended-excursion voice coil extends response to 70 Hz for lowest vocal range
- Quasi-3-way passive crossover with separate filters for each transducer provides more consistent frequency and polar response compared to conventional crossover designs
- 70 Hz – 16 kHz frequency response and 126dB maximum peak SPL deliver the performance required for most demanding applications
- Flexible mounting with included U-bracket – rear enclosure panel also includes 4x M8 threaded inserts in 5.0" x 2.75" (127mm x 70mm) pattern to accept third-party accessory mounting brackets
Bose RMU208 Specifications:
- System Performance:
- Frequency Response (±3dB): 80 Hz - 16 kHz
- Frequency Range (-10dB): 70 Hz - 16 kHz
- Recommended high-pass protection filter: 70 Hz with minimum 12dB/octave filter
- Nominal Coverage Pattern (HxV): 90° x 60° (rotatable high frequency horn)
- Crossover Type: Passive; separate bandpass filters per transducer
- Power Handling, long-term continuous: 300 Watts
- Power Handling, peak: 1200 Watts
- Sensitivity (1 W @ 1m): 94dB SPL
- Calculated Maximum SPL @ 1m: 119dB
- Calculated Maximum SPL @ 1m, peak: 125dB
- Transducers:
- Low Frequency: 2x Bose LF8 high-excursion 8" woofers (2" voice coil)
- High Frequency: 1x Bose EMB2 extended-midband frequency compression driver (2" voice coil)
- Nominal Impedance: 8 Ohms
- Physical:
- Finish: Two-part spray polyurethane coating
- Grille: 18-gauge (1.2mm) perforated steel, powder-coated finish
- Environmental: Indoor use only
- Connectors: 2x Neutrik NL4 and 1x barrier strip, wired parallel
- Dimensions (HxWxD): 9.3" x 27.0" x 10.5" (236mm x 686mm x 267mm)
- Net Weight: 37 lbs (16.8 kg); 43 lbs (19.5 kg) withU-bracket
