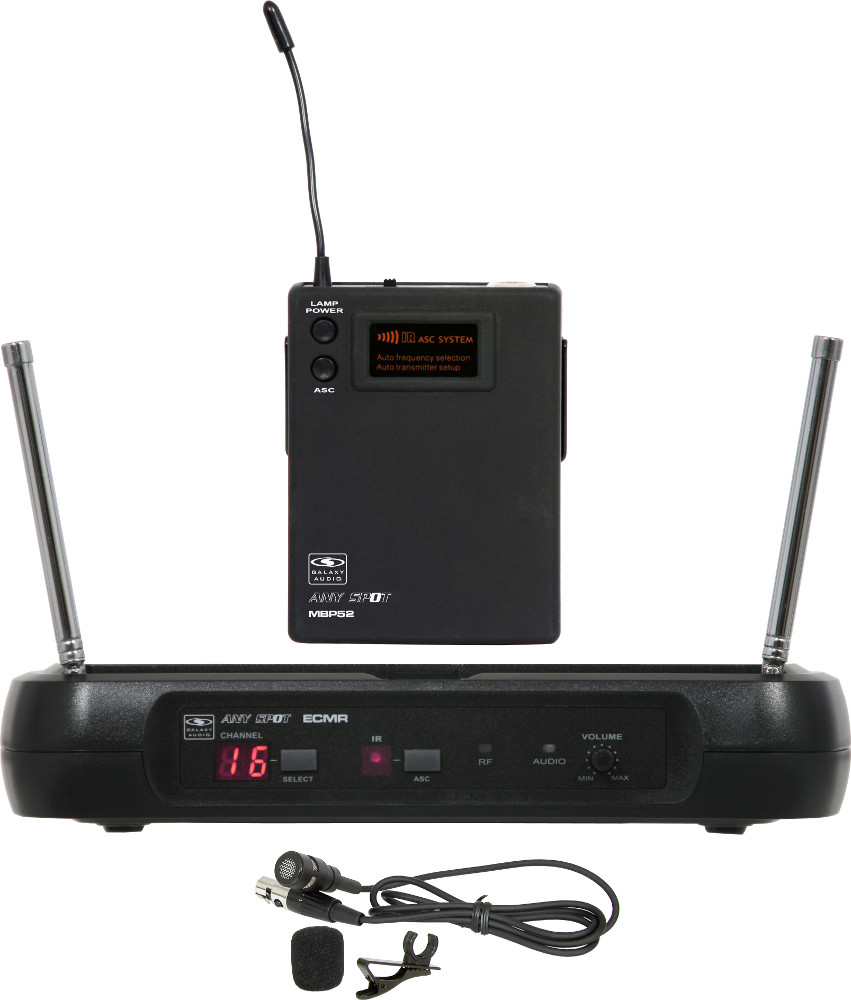

Galaxy Audio ECMR/52LV EDXR UHF Wireless Mic System with Body Pack Receiver and Lavalier Mic

The ECMR/52LV is a wireless lavalier microphone system.

The ECM Wireless Receiver is an economical solution to a great wireless microphone system. The ECM has 16 selectable channels, IR Sync, Diversity Antennas mounted to the front of the rugged plastic casing. The ECM is available with a handheld, body pack with headset or lav, instrument cable, our popular guitar bud or with our wireless headset the HS-UBKT.

The ECMR can be used and will sync with either the HH52 or MBP52 transmitters. The HH52 has a gain control and an on/off switch. Both transmitters are powered by 2AA batteries. The MBP52 body pack transmitter has a 0/-10/Mic selector switch.

Galaxy Audio ECMR/52LV Features:

• Receiver (ECMR)
• 16 Selectable Channels
• Volume Control
• AF Level Indicator
• IR Sync
• Squelch Adjustment
• XLR-1/4" Outputs
• Rugged Plastic Casing
• Body Pack (MBP52)
• IR Sync
• 2 AA Batteries
• Mic/0/-10 dB
• 3 Position Switch
• Low Battery Indicator
• 2.8 oz (80 g)
• Mic (LV-U3BK)
• Uni Element
• Lavalier
• Freq. Response: 50Hz - 19kHz

Galaxy Audio ECMR/52LV Specifications:

• Frequency Range and Transmitter Output Level
• Frequency Range: CODE D 584~607MHz
• CODE L 655~679MHz
• Transmitter Output Level: 10dBm
• Band: UHF
• Operating Range: Under Typical Conditions 150' (50m)
• Note: actual range depends on RF signal absorption, reflection, and interference
• Audio Frequency Response: +/-3dB 70Hz~16kHz
• Total Harmonic Distortion: +/-30kHz deviation 1kHz tone < 1%
• Dynamic Range: >90dB A-weighted
• Operating Temperature: Range 14ºF to 122ºF (-10 Cº to +50 Cº)
• Note: battery characteristics may limit this range
