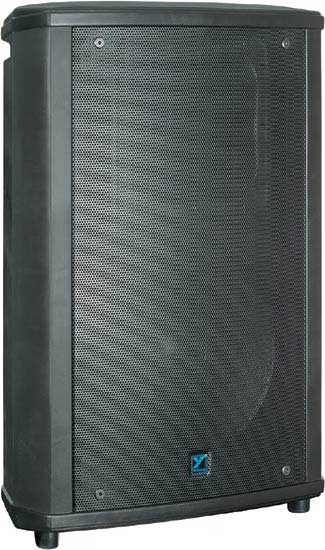

Yorkville NX300-2
300W 15" Loudspeaker

OUR PART #  NX300-2

Our Price: $349.00
List Price: $449.00
You save 22%! (Low Price Guarantee)
In Stock

Recommended Accessories

Yorkville's 300W NX300 is the most cost effective passive 15-inch and horn injection-molded loudspeaker available in the NX Series. Ideal for virtually any PA application, the unique trapezoidal shape employed on the NX300 allows the cabinet to be used as effectively as a monitor or front-of-house loudspeaker. The cabinet shape makes it ideal for mounting in tight arrays, or in multiple cabinet clusters.

The rotatable 80 x 50 degree custom ABS waveguide horn used in the NX300 allows this loudspeaker to be flown either horizontally or vertically, or close to walls and ceilings making an ideal fill cabinet for installations. Integrated flypoints in the NX300 ensure this injection-molded loudspeaker can be easily adapted for installation without modification to the cabinet. Rugged bar handles and integrated standmount adaptor ensure maximum mobility and easy set-up in any live PA application.

Yorkville NX300 Features:

  • 600 Watt Full Range Loudspeaker (300 Watts Program)
  • Max SPL 122dB Peak (125dB Continuous)
  • Ultra-light injection molded Polypropyleneconstruction
  • Dual purpose full range and wedge monitor formatenclosure
  • Ultra-clear reproduction throughout bandwidth
  • Ultra-high efficiency performance requires less powerfor more output
  • High quality 1.5-inch (1-inch throat) High Frequencydriver
  • Rotatable 80 x 50 degree horn
  • Integrated flypoints for flyware
  • Tough, full length metal grille
  • Recessed Input panels
  • Dual bulb CTL High Frequency Protection
  • Made in Canada

Yorkville NX300 Specifications:

  • System Type 2-Way
  • Active or Passive Passive
  • Program Power (Watts) 300 Watts (600 Watts Peak)
  • Biampable No
  • Nominal Impedance (Ohms) 8
  • Sensitivity (dB @1Watt/1m) 97
  • Max SPL (dB) 125dB Peak (122dB Continuous)
  • Frequency Response (Hz +/- 3db) 60 - 18k
  • Crossover Frequency (Hz) 1500
  • Driver Configuration 15 inch / 1.5 inch
  • HF Driver(s) 1 inch Throat, Neo Magnet, 1.5 inchAluminum Diaphragm
  • HF Program Power (Watts) 25
  • HF Impedance (Ohms) 8
  • HF Dispersion (?H x ?V) 80 x 50 Rotatable
  • HF Protection Dual Bulb CTL™
  • LF Driver(s) 15 inch Ceramic Magnet, 2 inchvoicecoil
  • LF Impedance(Ohms) 8
  • Inputs - 1/4" Jacks 2
  • Inputs - Speakon 4-pin 2
  • Feet Yes
  • Flying Hardware 1/4-20 x 5 - 2 (Top), 2(Bottom), 1 (Pullback)
  • Optional Flying Hardware NX Flyware / Eyebolts
  • Bar Handles 1 (Side)
  • Pole Mount Adapter (1 3/8"-3.5cm) Yes
  • Enclosure Materials Injection moldedPolypropylene
  • Grille Perforated Metal
  • Other Details Side recesses for ease of lifting
  • Dimensions (DWH xbackW, inches) 15 x 22 x 32 x9.5
  • Dimensions (DWH xbackW, cm) 38 x 56 x 84 x 24
  • Weight (lbs/kg) 49.8 / 22.6

* Specifications subject to change without notice
