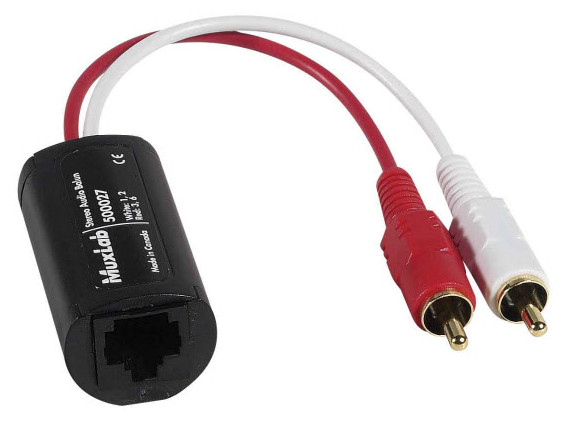

MuxLab 500027
Stereo Audio Balun

OUR PART #:  MUX-500027

The Stereo Audio Balun allows unbalanced line level stereo analogue audio to be transmitted via Category 5 unshielded copper twisted pair (UTP) in a point-to-point connection.
Learn More
Our Price: $34.00
List Price: $50.00
You save 32%!
Be the first to review.
MuxLab 500027
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Similar Products

The Stereo Audio Balun allows unbalanced line level stereo analogue audio to be transmitted via Category 5 unshielded copper twisted pair (UTP) in a point-to-point connection. The product is designed for audio applications where primarily midrange audio frequency response is required. Used in pairs, the Stereo Audio Balun eliminates costly and bulky coaxial cable, allowing audio equipment to be connected or moved within a structured cabling environment. The Stereo Audio Balun also works in conjunction with other MuxLab products such as the 500019, 500001, 500012, 500017 and 500200 for a more complete cabling solution.

MuxLab 500027 Features:

  • Cost-efficient cabling
  • Up to 5,000 ft (1.5km) via Cat 5 UTP
  • Color-coded RCA cable leads
  • Quicker moves, adds and changes
  • Compact design

MuxLab 500027 Specifications:

  • Environment Line level unbalanced analogue audio
  • Devices: DVD, VCR, camcorders, audio mixers, audiomatrix switchers, audio splitters, audio distribution amplifiers, boosters,satellite receivers, MPEG players, laptops, stereo audio amplifiers, audioswitchers, integrated TV monitors and other line level audio equipment
  • Transmission: Transparent to the user.
  • Bandwidth (3dB roll-off point) (400 O source & 50kO receiver): Up to 1,000 ft (305m): 60Hz - 20 kHz | 1,000 ft (305m) to 5,000ft (1.5 km): 100Hz - 20 kHz
  • Maximum Input Level: 1.1Vp-p
  • Insertion Loss per Balun Pair: Less than 1 dB perpair over the frequency range
  • Common Mode Rejection (CMMR) Greater than 60 dB @ 1kHz
  • Audio Source Impedance: Less than 600 ohms
  • Audio Receiver Impedance: 10 k ohms or greater
  • Impedance Transformation Ratio: Single unit: 4:1(source: line)
  • Cable – UTP: 24 gauge or lower solid copper twistedpair wire impedance: 100 ohms at 1
  • MHz. Maximum capacitance: 20 pf/foot.
  • Attenuation: 6.6 dB/1000 ft at 1 MHz
  • Max. Distance – Cat 5e/6 UTP 5,000 ft (1,525m)
  • Connectors
  • Two (2) RCA-M 6" cable leads
  • One (1) RJ45
  • Pin Configuration (RJ45) (EIA 568 A or B)
  • Audio 1 (White): pins 1[R] & 2 [T]
  • Audio 2 (Red): pins 3 [R] & 6 [T]
  • Temperature Operating: 0º to 55º C. Storage:-20º to85º C. Humidity: up to 95%
  • Enclosure ABS. Fire retardant plastic
  • Dimensions 1.875" x 1.0" diameter plus 6" audio lead
  • Weight 1.0 oz (28 gms)
