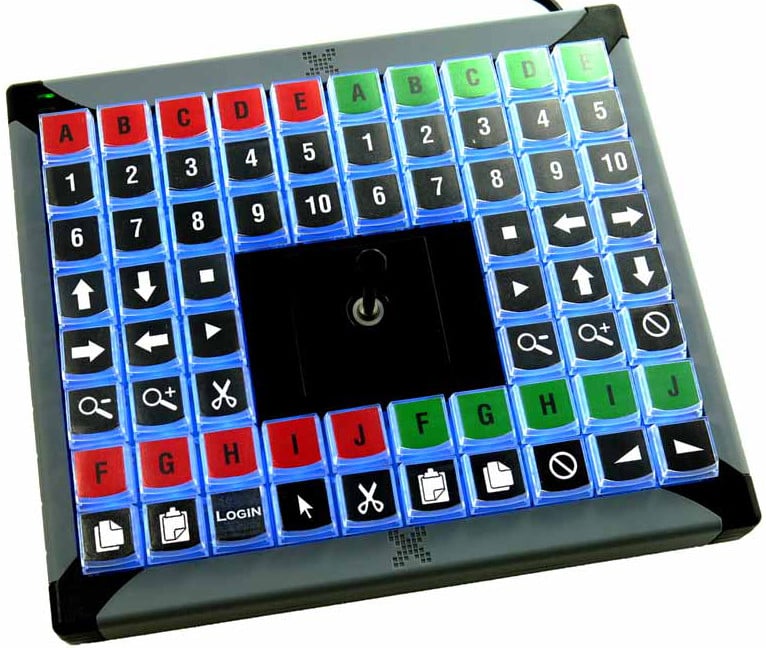

PI Engineering, Inc. X-Keys XK-68 Joystick
68-Key Programmable USB Keyboard with Joystick

OUR PART #:  XK-0989-UBJ68-R

PI Engineering's X-Keys XK-68+Joystick offers sixty-eight programmable keys to trigger macros, shortcuts, and applications, select tools or open files or directories.
Learn More
PI Engineering, Inc. XK-0989-UBJ68-R 1
PI Engineering, Inc. XK-0989-UBJ68-R 2
PI Engineering, Inc. XK-0989-UBJ68-R 3
PI Engineering, Inc. XK-0989-UBJ68-R 4

Click a thumbnail to see more images. (7 total)

Our Price: $244.94
List Price: $249.95
Write the first review.
PI Engineering, Inc. X-Keys XK-68 Joystick
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

PI Engineering's X-Keys XK-68+Joystick offers sixty-eight programmable keys to trigger macros, shortcuts, and applications, select tools or open files or directories.  The low profile, slim footprint fits nicely under display monitors or above keyboards.  The XK-68+Joystick provides a versatile control strip for any computer driven application.

PI Engineering X-Keys XK-0989-UBJ68-R Features:

  • 68 relegendable keys
  • Addressable blue backlighting for each key
  • Optional rtack mount kit (sold separately)
  • Compatible with Windows, Mac, Linux, and Android

PI Engineering X-Keys XK-0989-UBJ68-R Specifications:

  • Operating System: Windows XP, Vista, 7 (32 or 64bit), Mac OS X, Others Supporting USB HID
  • Included Software:
    • Windows: MacroWorks 3.1
    • Mac: ControllerMate
    • Other: SDK
  • Emulation Modes: HID Keyboard, HID Mouse, HIDGame Controller
  • Joystick: MDM™ precision 3 axis (twist for Z)
  • Switch Type: Full travel rubber dome, carbon ongold contacts, guaranteed for more than 1 million operations
  • Number of Keys: 68 single keys + programmingbutton
  • Actuation Force: Approx. 2.5 oz (72g)break-over, approx. 1.5 oz (42g) hold
  • Key Cap Type: Relegendable with Cherry MXcompatible stem
  • Keycap Size: 0.625” (16mm) sq.
  • Key Spacing: 0.75" O.C.
  • Optional Keys: 2x1, 1x2, 2x2
  • Backlighting: 68 blue and 68 red LEDs,individually addressable
  • Connector: Wired USB 2.0 standard "A" plug
  • Cord Length: 56" (1.42 m)
  • Dimensions: 8.25" x 7.25" x 0.94" (210 x 184 x24 mm)
  • Weight: 26 oz. (737 g)
  • USB type: Compatible with USB 1.1 through 2.0
  • Power Source: USB port, nominal voltage = 5 vdc
  • Current Draw: NO backlight: 18 mA , Bluebacklight full: 38 mA, Red backlight full: 57 mA, All backlights: 75 mA
  • Temperature Range: -20 to 60 C
  • Humidity: 80% Rh non-condensing
  • Environmental Rating: IP 40, typical indooroffice environment
  • Certifications: FCC Class B | CE | RoHS | WEEE compliant
