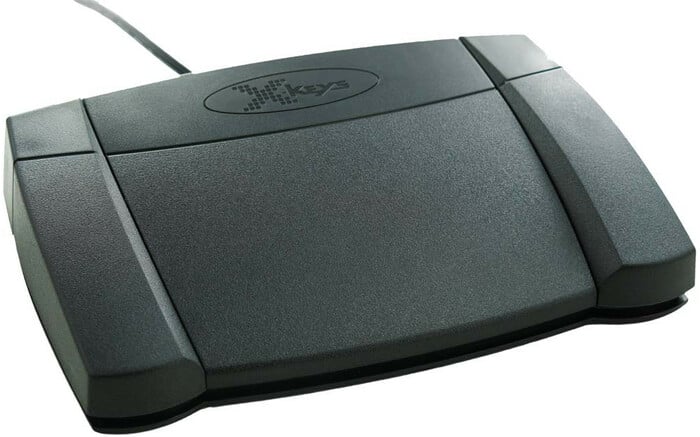

PI Engineering, Inc. X-Keys XK-3 Foot Pedal
Programmable Rear Hinged USB Foot Pedal

OUR PART #  XK-0986-UEP3-R

Our Price: $127.34
List Price: $129.95
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

PI Engineering's X-keys XK-3 Rear Hinged Foot Pedal allows the user to rest a foot on the main pedal and keep it active for longer periods. Perfect for playback of audio or video clips or voice recognition programs.  The outside pedals hinged in the rear provide additional functions easily reached to the left or right of the main pedal.

PI Engineering XK-0986-UEP3-R Features:

  • Great for transcript playback control
  • Alleviates RSI issues
  • USB connection
  • Compatible with Windows, Mac, Linux, and Android

PI Engineering XK-0986-UEP3-R Specifications:

  • Operating System:
    • Use: Any OS via USB HID
    • Programming: Windows XP through 8, Mac OS X 10.4 through 10.8
  • Free Programming Software:
    • Windows: MacroWorks 3.1
    • Android: X-keys Android
  • Free Software Development Kits:
    • Windows (C++, C#, VB.NET)
    • Linux (C++)
    • Android (Java)
    • Raw HID (any language/OS)
  • Emulation Modes: HID keyboard, HID mouse, HID game controller
  • Switch Type: Microswitch with audible click, guaranteed for over 1 million operations
  • Number of Pedals: 3 programmable pedals
  • Actuation Force: Approx. 34 – 90 oz (1 - 2.5kg) depending on distance from hinge
  • Connector: Wired USB 2.0 standard "A" plug
  • Cord Length: 92" (2.3 m)
  • Dimensions: Approx. 8.1" x 5.5" x 1.6" (21 x 14x 4 cm)
  • Weight: 2.5 lbs (1.1 kg)
  • USB type: USB 1.1 compatible through 3.0)
  • Power Source: USB port, nominal voltage = 5 VDC
  • Power Consumption: 18 mA @ 5 VDC
  • Temperature Range: -20 to 60 C
  • Memory Capacity: Approximately 1000 keystrokes or commands
  • Memory Type: EEPROM, non volatile memory (X-keys retains memory for over 200 years)
  • Environmental Rating: IP 40, typical indoor office environment
  • Certifications: FCC class B, CE, RoHS, WEEE compliant

PI Engineering, Inc. X-Keys XK-3 Foot Pedal
Programmable Rear Hinged USB Foot Pedal

OUR PART #  XK-0986-UEP3-R

Product Videos:

Product Information:

PI Engineering's X-keys XK-3 Rear Hinged Foot Pedal allows the user to rest a foot on the main pedal and keep it active for longer periods. Perfect for playback of audio or video clips or voice recognition programs.  The outside pedals hinged in the rear provide additional functions easily reached to the left or right of the main pedal.

PI Engineering XK-0986-UEP3-R Features:

  • Great for transcript playback control
  • Alleviates RSI issues
  • USB connection
  • Compatible with Windows, Mac, Linux, and Android

PI Engineering XK-0986-UEP3-R Specifications:

  • Operating System:
    • Use: Any OS via USB HID
    • Programming: Windows XP through 8, Mac OS X 10.4 through 10.8
  • Free Programming Software:
    • Windows: MacroWorks 3.1
    • Android: X-keys Android
  • Free Software Development Kits:
    • Windows (C++, C#, VB.NET)
    • Linux (C++)
    • Android (Java)
    • Raw HID (any language/OS)
  • Emulation Modes: HID keyboard, HID mouse, HID game controller
  • Switch Type: Microswitch with audible click, guaranteed for over 1 million operations
  • Number of Pedals: 3 programmable pedals
  • Actuation Force: Approx. 34 – 90 oz (1 - 2.5kg) depending on distance from hinge
  • Connector: Wired USB 2.0 standard "A" plug
  • Cord Length: 92" (2.3 m)
  • Dimensions: Approx. 8.1" x 5.5" x 1.6" (21 x 14x 4 cm)
  • Weight: 2.5 lbs (1.1 kg)
  • USB type: USB 1.1 compatible through 3.0)
  • Power Source: USB port, nominal voltage = 5 VDC
  • Power Consumption: 18 mA @ 5 VDC
  • Temperature Range: -20 to 60 C
  • Memory Capacity: Approximately 1000 keystrokes or commands
  • Memory Type: EEPROM, non volatile memory (X-keys retains memory for over 200 years)
  • Environmental Rating: IP 40, typical indoor office environment
  • Certifications: FCC class B, CE, RoHS, WEEE compliant
