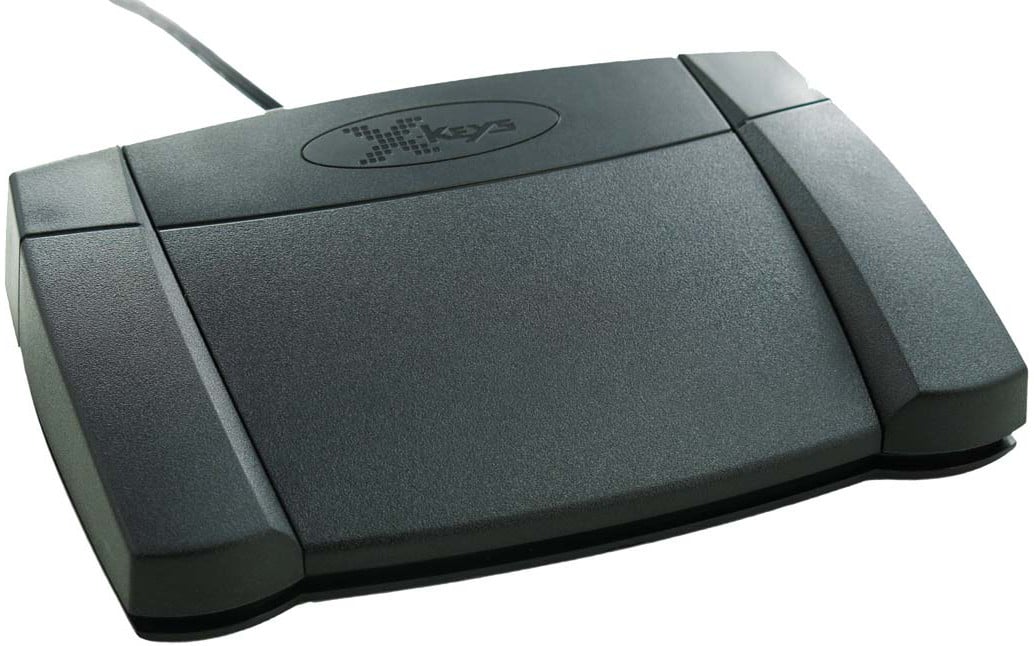

PI Engineering, Inc. X-Keys XK-3 Foot Pedal
Programmable Front Hinged USB Foot Pedal

OUR PART #:  XK-0985-UDP3-R

PI Engineering's X-keys XK-3 Front Hinged Foot Pedal allows the user to rest a foot on the main pedal without activating it.
Learn More
PI Engineering, Inc. XK-0985-UDP3-R 1
PI Engineering, Inc. XK-0985-UDP3-R 2
PI Engineering, Inc. XK-0985-UDP3-R 3
PI Engineering, Inc. XK-0985-UDP3-R 4

Click a thumbnail to see more images. (6 total)

Our Price: $127.34
List Price: $129.95
Write the first review.
PI Engineering, Inc. X-Keys XK-3 Foot Pedal
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

PI Engineering's X-keys XK-3 Front Hinged Foot Pedal allows the user to rest a foot on the main pedal without activating it. Activation requires just slight additional pressure from the toe or ankle. Perfect for mouse clicking or modifier keys with the main pedal. The outside pedals hinged in the rear provide additional functions easily reached to the left or right of the main pedal.

PI Engineering XK-0985-UDP3-R Features:

  • Great for mouse click, and drag and drop operations
  • Alleviates RSI issues
  • USB connection
  • Compatible with Windows, Mac, Linux, and Android

PI Engineering XK-0985-UDP3-R Specifications:

  • Operating System:
    • Use: Any OS via USB HID
    • Programming: Windows XP through 8, Mac OS X 10.4 through 10.8
  • Free Programming Software:
    • Windows: MacroWorks 3.1
    • Android: X-keys Android
  • Free Software Development Kits:
    • Windows (C++, C#, VB.NET)
    • Linux (C++)
    • Android (Java)
    • Raw HID (any language/OS)
  • Emulation Modes: HID keyboard, HID mouse, HIDgame controller
  • Switch Type: Microswitch with audible click,guaranteed for over 1 million operations
  • Number of Pedals: 3 programmable pedals
  • Actuation Force: Approx. 34 – 90 oz (1 - 2.5kg)depending on distance from hinge
  • Connector: Wired USB 2.0 standard "A" plug
  • Cord Length: 92" (2.3 m)
  • Dimensions: Approx. 8.1" x 5.5" x 1.6" (21 x 14x 4 cm)
  • Weight: 2.5 lbs (1.1 kg)
  • USB type: USB 1.1 compatible through 3.0)
  • Power Source: USB port, nominal voltage = 5 VDC
  • Power Consumption: 18 mA @ 5 VDC
  • Temperature Range: -20 to 60 C
  • Memory Capacity: Approximately 1000 keystrokesor commands
  • Memory Type: EEPROM, non volatile memory (X-keysretains memory for over 200 years)
  • Environmental Rating: IP 40, typical indooroffice environment
  • Certifications: FCC class B, CE, RoHS, WEEE compliant
