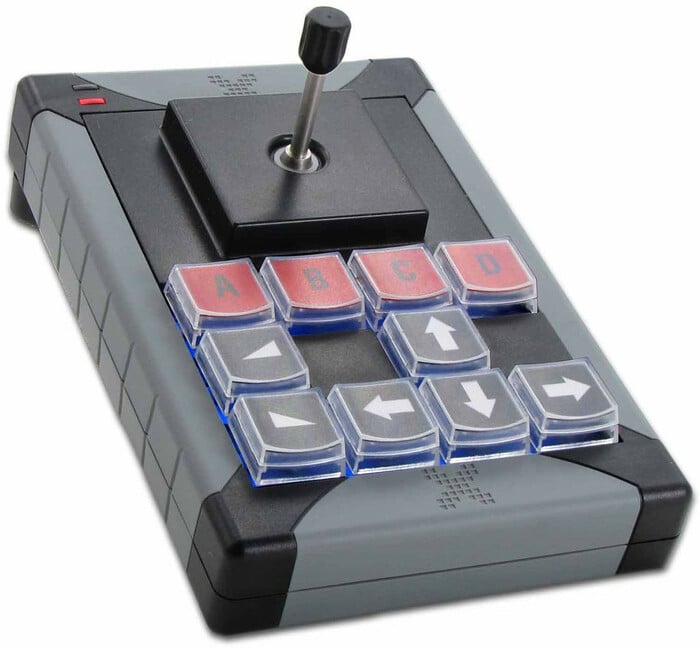

PI Engineering, Inc. X-Keys XK-12 + Joystick
12-Key Programmable USB Keypad with Joystick

OUR PART #:  XK-0983-UAJ12-R

PI Engineering's X-Keys XK-12+Joystick offers twelve user-definable keys with an integrated joystick fit in a small footprint equally suitable for desktop or hand-held operation.
Learn More
X-Keys XK-0983-UAJ12-R with Included Accessories
X-Keys XK-0983-UAJ12-R - Rear View
X-Keys XK-0983-UAJ12-R - Side View

Click a thumbnail to see more images. (7 total)

Our Price: $195.94
List Price: $199.95
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


PI Engineering, Inc. X-Keys XK-12 + Joystick
In Stock

Similar Products

PI Engineering's X-Keys XK-12+Joystick offers twelve user-definable keys with an integrated joystick fit in a small footprint equally suitable for desktop or hand-held operation.  The full travel keys have the same feel as a standard keyboard and angled feet give the unit a slight tilt for better viewing of the key legends.  Blue and red addressable backlighting enhances key identification in low light environments.

PI Engineering X-Keys XK-0983-UAJ12-R Features:

  • 12 relegendable keys
  • Addressable blue backlighting for each key
  • Optional rack mount kit (sold separately)
  • Compatible with Windows, Mac, Linux, and Android

PI Engineering X-Keys XK-0983-UAJ12-R Specifications:

  • Operating System:
    • Use: Any OS via USB HID
    • Programming: Windows XP through 8, Mac OS X 10.4 through 10.8
  • Free Programming Software:
    • Windows: MacroWorks 3.1
    • Mac: ControllerMate for X-keys
  • Free Software Development Kits:
    • Windows (C++, C#, VB.NET)
    • Linux (C++)
    • Android (Java)
    • Raw HID (any language/OS)
  • Emulation Modes: HID keyboard, HID mouse, HID game controller
  • Joystick: MDM™ precision 3 axis (twist for Z)
  • Switch Types: Full-travel rubber dome, carbon on gold contacts, guaranteed for over 1 million operations
  • Number of Keys: 12 single keys + 1 programming button
  • Actuation Force: Approx. 2.5 oz (72g) break-over, approx. 1.5 oz (42g) hold
  • Keycaps: 0.625” (16mm) sq.; relegendable with Cherry MX compatible stem
  • Key Spacing: 0.75" O.C.
  • Optional Keys: 2X1, 1X2, 2X2, abd 1X1 blocker
  • Backlighting: 1 blue and 1 red addressable LED under each key
  • Connector: Wired USB 2.0 standard "A" plug
  • Cord Length: 56" (1.42 m)
  • Dimensions: 5.8" x 3.8" x 0.94" (147 x 97 x 24mm)
  • Weight: 10 oz. (285 g)
  • USB type: USB 1.1 compatible through 3.0
  • Power Source: USB port, nominal voltage = 5 VDC
  • Current Draw:
    • NO backlight: 18 mA
    • Blue backlight full: 38 mA
    • Red backlight full: 57 mA
    • All backlights: 75 mA
  • Temperature Range: -20° to 60°C
  • Memory Capacity: Approximately 1,000 keystrokes or commands in onboard memory
  • Memory Type: EEPROM, non volatile memory (X-keys retains memory for over 200 years)
  • Environmental Rating: IP 40, typical indoor office environment
  • Certifications: FCC class B, CE, RoHS, WEEE compliant
