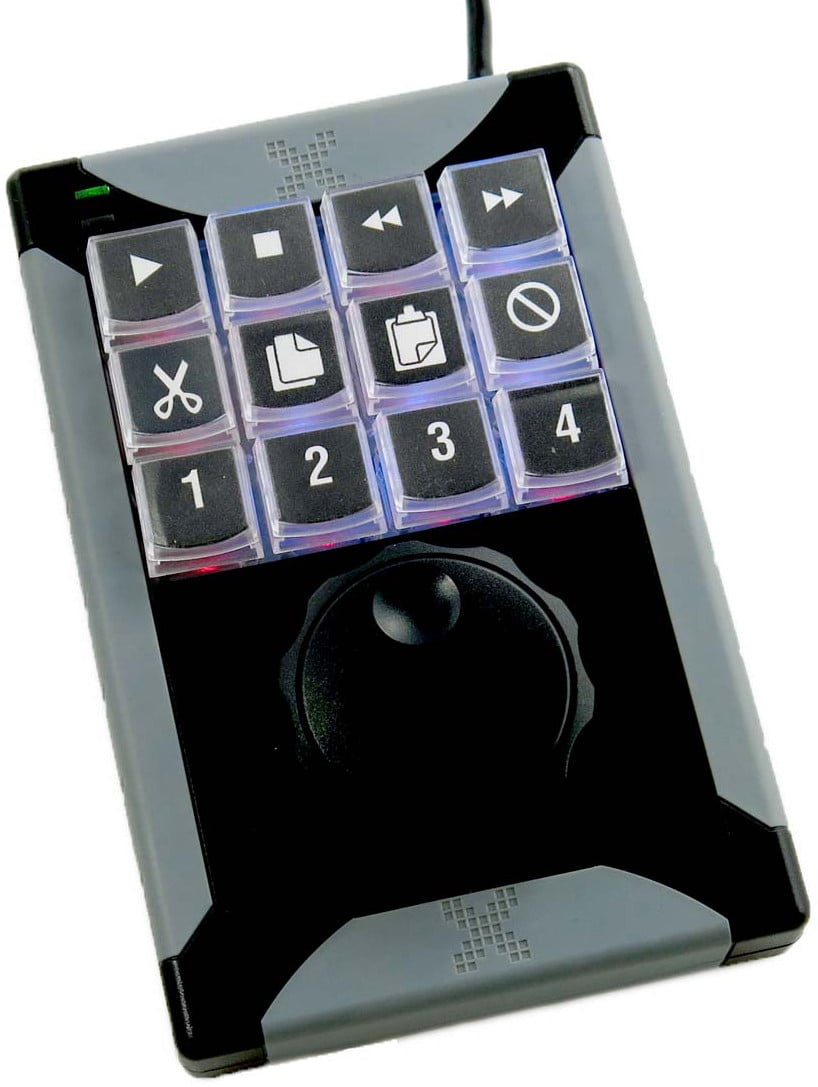

PI Engineering, Inc. X-Keys XK-12 + Jog & Shuttle
12-Key Programmable USB Keypad with Jog/Shuttle Control Wheel

OUR PART #:  XK-0982-UAG12-R

PI Engineering, Inc. XK-0982-UAG12-R 1
PI Engineering, Inc. XK-0982-UAG12-R 2
PI Engineering, Inc. XK-0982-UAG12-R 3
PI Engineering, Inc. XK-0982-UAG12-R 4

Click a thumbnail to see more images. (6 total)

Our Price: $195.94
List Price: $199.95
Write the first review.
PI Engineering, Inc. X-Keys XK-12 + Jog & Shuttle
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

PI Engineering's X-Keys XK-12+Jog & Shuttle offers twelve user definable keys with an integrated jog and shuttle ring fit in a small footprint equally suitable for desktop or hand-held operation.  The design of the XK-12+Jog & Shuttle allows for both portrait and landscape orientation to fit your requirements.  The full travel keys have the same feel as a standard keyboard and angled feet give the unit a slight tilt for better viewing of the key legends.  Blue and red addressable backlighting enhances key identification in low light environments.

PI Engineering X-Keys XK-0982-UAG12-R Features:

  • 12 relegendable keys
  • Addressable blue backlighting for each key
  • Optional rack mount kit (sold separately)
  • Compatible with Windows, Mac, Linux, and Android
PI Engineering X-Keys XK-0982-UAG12-R Specifications:
  • Operating System:
    • Use: Any OS via USB HID
    • Programming: Windows XP through 8, Mac OS X 10.4 through 10.8
  • Free Programming Software:
    • Windows: MacroWorks 3.1
    • Mac: ControllerMate for X-keys
  • Free Software Development Kits:
    • Windows (C++, C#, VB.NET)
    • Linux (C++)
    • Android (Java)
    • Raw HID (any language/OS)
  • Emulation Modes: HID keyboard, HID mouse, HIDgame controller
  • Jog Control: 10 detent, independent clockwiseand counter clockwise commands
  • Shuttle Control: Independent macros for left andright with increasing repeat rate moving away from center (spring return torest). Other commands available through scripting.
  • Switch Types: Full-travel rubber dome, carbon ongold contacts, guaranteed for over 1 million operations
  • Number of Keys: 12 single keys + 1 programmingbutton
  • Actuation Force: Approx. 2.5 oz (72g)break-over, approx. 1.5 oz (42g) hold
  • Keycaps: 0.625” (16mm) sq.; relegendable withCherry MX compatible stem
  • Key Spacing: 0.75" O.C.
  • Optional Keys: 2X1, 1X2, 2X2, abd 1X1 blocker
  • Backlighting: 1 blue and 1 red addressable LEDunder each key
  • Connector: Wired USB 2.0 standard "A" plug
  • Cord Length: 56" (1.42 m)
  • Dimensions: 5.8" x 3.8" x 0.94" (147 x 97 x 24mm)
  • Weight: 10 oz. (285 g)
  • USB type: USB 1.1 compatible through 3.0
  • Power Source: USB port, nominal voltage = 5 VDC
  • Current Draw: NO backlight: 18 mA , Bluebacklight full: 38 mA, Red backlight full: 57 mA, All backlights: 75 mA
  • Temperature Range: -20 to 60 C
  • Memory Capacity: Approximately 1,000 keystrokesor commands in onboard memory
  • Memory Type: EEPROM, non volatile memory (X-keysretains memory for over 200 years)
  • Environmental Rating: IP 40, typical indooroffice environment
  • Certifications: FCC class B, CE, RoHS, WEEE compliant
