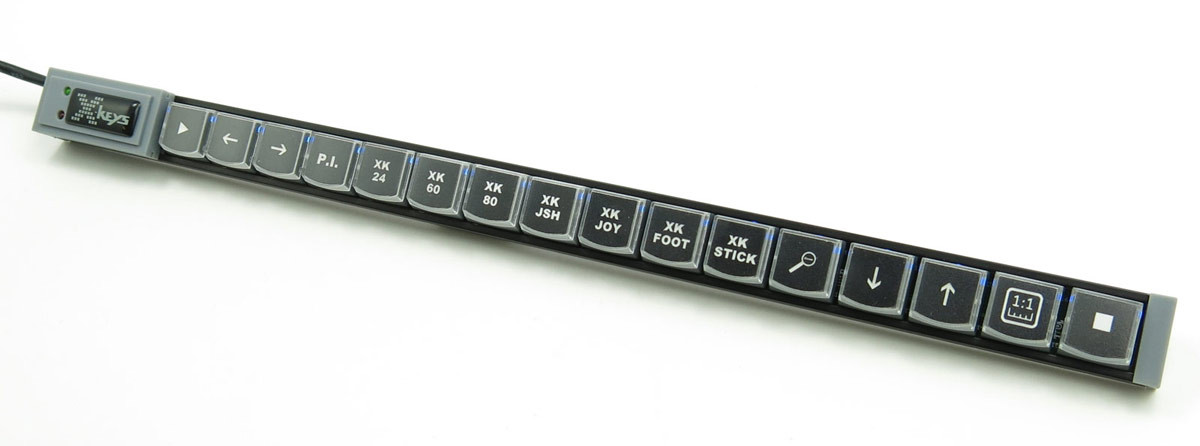

PI Engineering, Inc. X-Keys XK-16 Stick
16-Key Programmable USB Key Stick

OUR PART #:  XK-0981-UCK16-R

16 dedicated keys with addressable backlighting in a compact, low profile footprint. Also available in 4 key and 8 key versions. One of the most popular X-keys.
Learn More
Our Price: $97.94
List Price: $99.95
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


PI Engineering, Inc. X-Keys XK-16 Stick
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

16 dedicated keys with addressable backlighting in a compact, low profile footprint. Also available in 4 key and 8 key versions.

One of the most popular X-keys. The XK-16 offers sixteen programmable keys to trigger macros, shortcuts, and applications, select tools or open files or directories. The low profile, slim footprint fits nicely under display monitors or above keyboards. The XK-16 provides a versatile control strip for any computer driven application.

P.I. Engineering XK-0981-UCK16-R Features:

  • 16 relegendable keys
  • Addressable blue backlighting for each key
  • Optional rack mount kit
  • Compatible with Windows, Mac, Linux, and Android
  • 30 day full refund return policy
  • Free live technical support

P.I. Engineering XK-0981-UCK16-R Specifications:

  • Operating System:  Use: Any OS via USB HID| Programming: Windows XP through 8, Mac OS X 10.4 through 10.8
  • Free Programming Software:
    • Windows: MacroWorks 3.1
    • Mac: ControllerMate for X-keys
  • Free Software Development Kits:
    • Windows (C++, C#, VB.NET)
    • Linux (C++)
    • Android (Java)
    • Raw HID (any language/OS)
  • Emulation Modes: HID keyboard, HID mouse, HID gamecontroller
  • Switch Types:  Low profile tactile,guaranteed for over 1 million operations
  • Number of Keys:  16, 8, or 4 single keys, 1programming slide switch
  • Actuation Force:  Approx. 6 oz (170g)break-over, approx. 2 oz (57g) hold, audible click
  • Keycaps:  0.625” (16mm) sq.; relegendablewith window for backlight and square stem
  • Key Spacing:  0.75" O.C.
  • Backlighting:  1 blue addressable LED undereach key
  • Connector:  Wired USB 2.0 standard “A” plug
  • Cord Length:  54” (1.3 m)
  • Dimensions and Weight: 14.25” x 0.9”” x 0.65",(362 mm x 23 mm x 17 mm), 7 oz. (200 g)
  • USB type:  USB 1.1 compatible through 3.0
  • Power Source:  USB port, nominal voltage = 5 VDC
  • Power Consumption: no backlighting: 21mA,backlighting at full intensity: 32mA
  • Temperature Range:  -20 to 60 C
  • Memory Capacity:  Approximately 1,000keystrokes or commands in onboard memory
  • Memory Type:  EEPROM, non volatile memory(X-keys retains memory for over 200 years)
  • Environmental Rating:  IP 40, typicalindoor office environment
  • Certifications:  FCC class B, CE, RoHS, WEEE compliant
