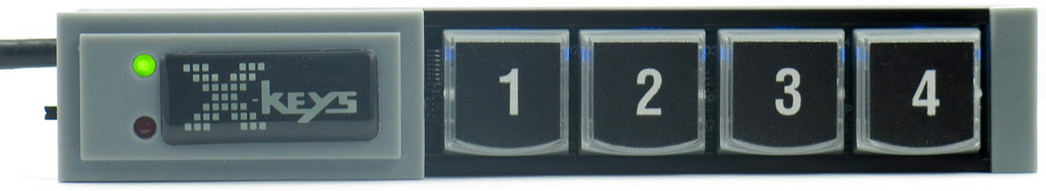

PI Engineering, Inc. X-Keys XK-4 Stick
4-Key Programmable USB Key Stick


Our Price: $97.94
List Price: $99.95
(Low Price Guarantee)
In Stock

PI Engineering's X-Keys XKS-04-USB-R has 4 dedicated keys with addressable backlighting in a compact, low profile footprint.

PI Engineering X-Keys XKS-04-USB-R Features:

  • Four relegendable keys
  • Addressable blue backlighting for each key
  • USB connection to computer or tablet
  • Compatible with Windows, Mac, Linux, and Android

Perfect for adding a few control keys to a tight space.  The XK-4 offers four programmable keys to trigger macros, shortcuts, and applications, select tools or open files or directories.  The low profile, slim footprint fits nicely on a podium or under a monitor.  The XK-4 provides a versatile control strip for any computer driven application.

PI Engineering X-Keys XKS-04-USB-R Specifications:

  • Operating System:
    • Use: Any OS via USB HID
    • Programming: Windows XP through 8, Mac OS X 10.4 through 10.8
  • Free Programming Software:
    • Windows: MacroWorks 3.1
    • Mac: ControllerMate for X-keys
  • Free Software Development Kits:
    • Windows (C++, C#, VB.NET)
    • Linux (C++)
    • Android (Java)
    • Raw HID (any language/OS)
  • Emulation Modes: HID keyboard, HID mouse, HIDgame controller
  • Switch Types: Low profile tactile, guaranteed forover 1 million operations
  • Number of Keys: 4 single keys
  • Actuation Force: Approx. 6 oz (170g) break-over,approx. 2 oz (57g) hold, audible click
  • Keycaps: 0.625” (16mm) sq.; relegendable withwindow for backlight and square stem
  • Key Spacing: 0.75" O.C.
  • Backlighting: 1 blue addressable LED under eachkey
  • Connector; Wired USB 2.0 standard “A” plug
  • Cord Length: 54” (1.3 m)
  • Dimensions: 5.35" x 0.9" x 0.65" (136 x 23 x 17 mm)
  • Weight: 3 oz (85 g)
  • USB type: USB 1.1 compatible through 3.0
  • Power Source: USB port, nominal voltage = 5 VDC
  • Power Consumption:
    • No backlighting: 19mA
    • Backlighting at full intensity: 26mA
  • Temperature Range: -20 to 60 C
  • Memory Capacity: Approximately 1,000 keystrokesor commands in onboard memory
  • Memory Type: EEPROM, non volatile memory (X-keysretains memory for over 200 years)
  • Environmental Rating: IP 40, typical indooroffice environment
  • Certifications: FCC class B, CE, RoHS, WEEE compliant
