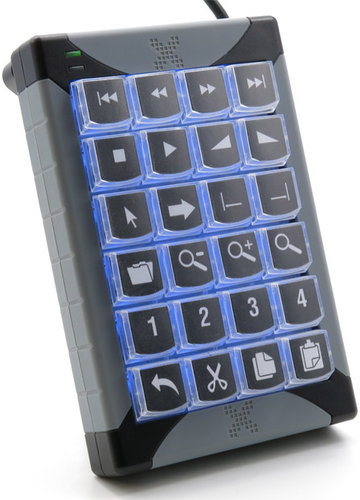

PI Engineering, Inc. X-Keys XK-24
24-Key Programmable USB Keypad


PI Engineering's X-Keys XK-24-USB-R has 24 dedicated keys with addressable backlighting in a compact footprint.  A versatile control solution for any computer application.
Learn More
X-Keys XK-24 with Included Accessories
X-Keys XK-24 - Bottom View
X-Keys XK-24 - Top View

Click a thumbnail to see more images. (8 total)

Our Price: $132.26
List Price: $139.95
You save 5%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


PI Engineering, Inc. X-Keys XK-24
In Stock

Similar Products

PI Engineering's X-Keys XK-24-USB-R has 24 dedicated keys with addressable backlighting in a compact footprint.  A versatile control solution for any computer application.

With a co-injected case equally suitable for handheld or desktop applications, the XK-24 provides a versatile control box for any computer driven application. Use key blockers and tall or wide keycaps to instantly customize the XK-24 for your specific requirements. Detachable feet give the XK-24 a slight angle to make the key legends easier to read. Repositioning keys and feet allow the XK-24 to assume a "landscape" orientation with four rows and six columns. The XK-24 offers 24 programmable keys to trigger macros, shortcuts, and applications, select tools or open files or directories.

PI Engineering X-Keys XK-24-USB-R Features:

  • 24 relegendable keys
  • Suitable for handheld, desktop, or mounted use
  • Compatible with Windows, Mac, Linux, and Android
  • Addressable blue and red backlighting for each key
  • USB connection (other options available)

PI Engineering X-Keys XK-24-USB-R Specifications:

  • Operating System:
    • Use: Any OS via USB HID
    • Programming: Windows XP through 8, Mac OS X 10.4 through 10.8
  • Free Programming Software:
    • Windows: MacroWorks 3.1
    • Mac: ControllerMate for X-keys
  • Free Software Development Kits:
    • Windows (C++, C#, VB.NET)
    • Linux (C++)
    • Android (Java)
    • Raw HID (any language/OS)
  • Emulation Modes: HID keyboard, HID mouse, HID game controller
  • Switch Types: Full-travel rubber dome, carbon ongold contacts, guaranteed for over 1 million operations
  • Number of Keys: 24 single keys + programming button
  • Actuation Force: Approx. 2.5 oz (72g) break-over, approx. 1.5 oz (42g) hold
  • Keycaps; 0.625" (16mm) sq.; relegendable with Cherry MX compatible stem
  • Key Spacing: 0.75" O.C.
  • Optional Keys: 2X1, 1X2, 2X2
  • Backlighting; 24 blue and 24 red LEDs, individually addressable
  • Connector: Wired USB 2.0 standard “A” plug
  • Cord Length: 56" (1.42 m)
  • Dimensions: 5.8" x 3.8" x 0.94" (147 x 97 x 24mm)
  • Weight: 10 oz. (285 g)
  • USB type: USB 1.1 compatible through 3.0
  • Power Source; USB port, nominal voltage = 5 VDC
  • Current Draw:
    • NO backlight: 18 mA
    • Bluebacklight full: 38 mA
    • Red backlight full: 57 mA
    • All backlights: 75 mA
  • Temperature Range: -20 to 60 C°
  • Memory Capacity: Approximately 1,000 keystrokes or commands in onboard memory
  • Memory Type: EEPROM, non volatile memory (X-keys retains memory for over 200 years)
  • Environmental Rating: IP 40, typical indoor office environment
  • Certifications: FCC class B, CE, RoHS, WEEE compliant
