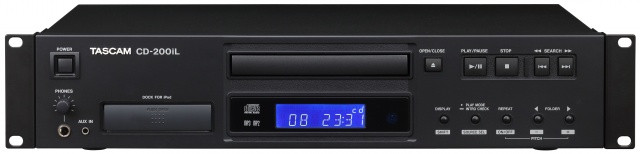

Tascam CD-200iL
CD Player with 30-Pin & Lightning iPod Dock


The Tascam CD-200iL offers built-in 30-pin and Lightning Docking Station for Audio Output, Transport Control, and Charging from all iPhones and iPods.
Learn More
Our Price: $369.99
List Price: $479.99
You save 23%!
Write the first review.
Tascam CD-200iL
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Tascam CD-200iL offers built-in 30-pin and Lightning Docking Station for Audio Output, Transport Control, and Charging from all iPhones and iPods.

The CD-200iL is built with a retractable iPod dock on the front of the player. You can attach iPods or iPhones with the 30-pin dock or Lightning connector. With this new dual connector dock, the CD-200iL is compatible with any iPod or iPhone device making it ideal for users with varying iOS Devices.

NOTE: Built-in 30-pin and Lightning Dock cannot be used at the same time.

To help improve audio quality, the lower-grade digital to analog converters of the iOS device in-use are bypassed by the digital connection of the CD-200iL. It is also possible to vary playback speeds when in use with a compatible iOS app.

NOTE: TEAC does not provide a playback application. Please acquire an application for playback from the App Store. Regarding application specifications, contact the application developer.

The CD-200iL is designed with a stereo mini AUX IN connector on the front panel to allow compatibility with other non-Apple audio devices. All models in the CD-200 series have CD drives designed for audio by TEAC. By undertaking development ourselves and including our drives in the player, we have achieved even higher reliability.

The CD-200iL is capable of playing a variety of audio files, not just audio CDs. TASCAM is constantly devoted to making products of quality, versatility and innovation and guaranteeing use in varying situations. The 10-seconds shockproof memory prevents skipping from vibration and other disruptions. If a vibration lasts less than 10 seconds, data stored in the player's memory can be played back without skipping, preventing undesired interference.

Tascam CD-200iL Includes:

  • Wireless remote control (RC-CD 200iL) with 10-key
  • AA battery x2
  • Rack mounting screw
  • Warranty card
  • Owner's manual

Tascam CD-200iL Features:

  • Built-in 30-pin and Lightning dock connector for audio output, transport control, and charging
  • iPod control is capable through the transport; album skip, repeat switch, and playback mode switch
  • High Quality CD drive designed for audio by TEAC
  • 10-second shockproof memory prevents skipping from vibrations and other causes
  • CD drive supports playback of CD-DA and data CD (WAV/MP3/MP2)
  • Supports CD text and ID3 tags allowing text information such as artist name and album names
  • Three playback modes (continuous, shuffle and program)
  • Repeat playback (single, all)
  • Folder playback function that allows limiting to only specified folders (data CDs)
  • Possible to skip playback folders (data CDs)
  • Folder repeat playback (data CD)
  • Switch between display of track elapsed time, track and disc remaining time (audio CDs)
  • +/-14% pitch control function (audio CDs and data CDs) *When pitch control playback is used for data CDs (WAV/MP3), the sound may be cut.
  • Intro check function can be used to play the first 10 seconds of songs in order
  • RCA analog outputs and COAXIAL/OPTICAL digital outputs (S/PDIF)
  • Stereo mini jack input on the front panel for connecting other portable audio devices
  • 2U EIA rack-mount size
  • Headphone output
  • RoHS certified

Tascam CD-200iL Specifications:

  • Playback media:  CD, CD-ROM, CD-R,CD-RW(12cm/8cm)
  • Playback format:
    • CD-DA: Stereo, 44.1kHz, 16bit
    • WAV: Stereo, 8k / 16k / 32k / 11.025k / 22.05k / 44.1k / 12k / 24k / 48kHz, 8/16bit
    • MP2: Stereo, 32k / 44.1k / 48kHz, 32kbps - 384kbps
    • MP3: Stereo, 32k / 44.1k / 48kHz, 32kbps - 320kbps, VBR
  • Analog audio input:
    • Connector: 3.5mm (1/8") stereo mini jack
    • Input impedance: 22k ohms
    • Nominal input level: -20dBV
    • Maximum input level: -4dBV
  • Analog audio output(unbalanced) :
      • Connector: RCA pin-jack
      • Output impedance: 200ohms
      • Nominal output level: -10dBV(0.32Vms)
      • Maximum output level: +6dBV(2.0Vms)
  • Digital audio output:
    • COAXIAL
      • Connector: RCA pin-jack
      • Output impedance: 75ohm
      • Format: IEC60958-3(S/PDIF)
    • OPTICAL
      • Connector: TOS (JEITA RC-5720C)
      • Format: IEC60958-3(S/PDIF)
  • Phones:
    • Connector: 6.3mm(1/4") stereo phone jack
    • Maximum output level: 20mW + 20mW or more (THD+N 0.1% or less, into 32ohms loaded)
  • Power:
    • AC120V, 60Hz (U.S.A./Canada)
    • AC230V, 50Hz (U.K./Europe)
    • AC240V, 50Hz (Australia)
  • Power consumption: 15W
  • Dimensions (WxHxD): 481 x 94.5 x 298 mm
  • Weight: 5.2kg (11.5 lbs.)
  • Operating temperature: 5°C - 35°C
  • Inclination of installation: 5° or less
  • Backup Memory Items: Elapse time / Titledisplay setting (CD), Playback mode (CD), Program (when loaded), Currentfolder (when CD loaded), Current source, Repeat playback function setting (ON/OFF), Pitch control (ON/OFF, CD) Pitch control value (CD)
  • Audio performance:
    • Frequency response: 20Hz-20kHz, +/-1dB (playback, JEITA)
    • Distortion: 0.01% or less (during playback, JEITA)
    • S/N ratio: 90dB or more (playback, JEITA)
    • Dynamic range: 90dB or more (playback, JEITA)
    • Channel separation: 90dB or more (playback, JEITA)
