Vaddio 999-8800-000
TRIO Audio Bundle System A - Breakout Interface with TRIO Acoustic Echo Canceling Microphones

OUR PART #  999-8800-000

Our Price: $1,696.00
List Price: $1,885.00
You save 10%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

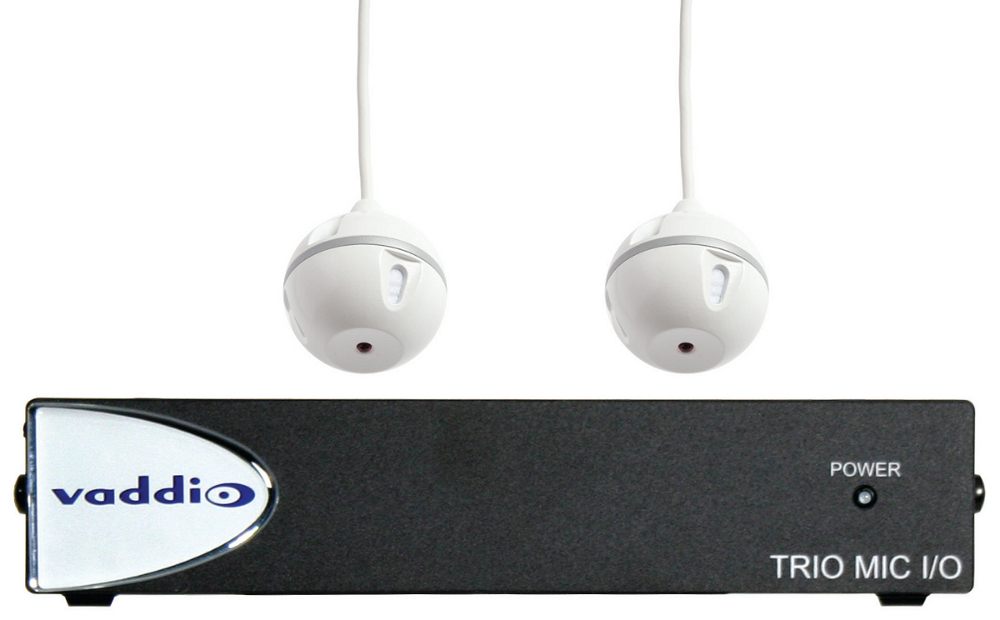

Vaddio's 999-8800-000 is a TRIO Audio Bundle System A that includes the TRIO I/O Interface and two Ceiling Mic Arrays - the System A is a professional audio conferencing solution for medium size rooms. This version comes with a pair of white ceiling microphones.

The Vaddio™ TRIO Mic I/O interface enables the TRIO Acoustic Echo Canceling Microphones to be used with any professional audio mixer. By connecting the TRIO Ceiling or Table Mics to the TRIO Mic I/O interface and instantly you can make any mixer capable of Acoustic Echo Cancellation for use in conferencing applications.

By pairing the TRIO Mics with the TRIO Mic I/O interface to produce four (4) standard, balanced line level output channels and simply connect the signals to the room audio mixer. Connecting a single echo canceling reference channel from the room mixer to the TRIO Mic I/O completes the interface with any audio mixer.

What's in the 999-8800-000 Box:

  • One (1) TRIO MIC I/O Interface
  • Two (2) TRIO Ceiling Mic Arrays (White)

999-8800-000 Features:

TRIO Mic I/O Interface:

  • Interface Device between TRIO SmartMICs and ANY professional conferencing mixer
  • Compatible with TRIO Table and Ceiling Mic Arrays
  • Connect up to four SmartMICs
  • Allows for 12 microphones all with independent echo cancellation and internal DSP

The TRIO Ceiling Mic Array:

  • Small 2.5” (63.5mm) Mic Array blends into the room
  • 360º coverage pattern created with three (3) mic elements
  • Includes a plenum safe interface box, tile support brace and an adjustable 36” long cable to the microphone array head.
  • The TRIO Ceiling Mics (mic and cable) available in black and white.

999-8800-000 Specifications:

TRIO Mic I/O Interface:

  • Audio Specs Frequency Response: 20 HZ to 20KHZ, Dynamic Range: >90dB, THD + Noise: < 0.02%
  • Line Outputs Four (4) 3-Pin Balanced, Line Level Outputs
  • AEC Reference Input One (1) 3-Pin Balanced, Line Level Input
  • TRIO Mic Ports Connectors: Four (4) RJ 45-F, Proprietary Interface with audio, power & control, 100’ (30.48m) Cat-5 cable distance
  • Power Supply 18 VDC, 2.75 Amp, Positive Center
  • Power Consumed Maximum of 40 Watts
  • Operating Temp. 32° to 104° F (0° to 40° C) / 20% to 80% Relative Humidity
  • Dimensions / Weight 8.375” (212.7mm) W x 1.72”” (43.7) H x 6.0” (152.4mm) D / 1.45 lbs. (0.657708956434 kg)
  • Accessories Included: Power Supply, Five (5) 3-Pin 5.0mm Phoenix-type Connectors
  • Opt. Accessories Optional: Rack Mount Kit 1sp: 998-6000-004

The TRIO Ceiling Mic Array:

  • Audio Specs Frequency Response: 20 HZ to 20KHZ, Dynamic Range: >90dB, THD + Noise: < 0.02%
  • Microphones Three unidirectional cardioid elements per device, Frequency Response: 100-12kHz, Max Input Level: 115dB/SPL
  • Signal Processing Acoustic Echo Cancellation, Noise Reduction, Microphone Gating and Automatic Gain Control
  • TRIO Mic Ports Connectors: One(1) RJ 45-F, Proprietary Interface with audio, power and control up to 100’ (30.48m) Cat-5 cable distance
  • Dimensions TRIO Ceiling Mic: 2.5” (63.5mm) Diameter Sphere, Trio Table Mic: 7”(177.8mm) Diameter x 1” (25.4mm) Tall
  • Weight TRIO Ceiling Mic: 0.113 lbs., TRIO Table Mic: 0.472 Lbs. (0.214 kg)
  • Operating Temp. 32° to 104° F (0° to 40° C) / 20% to 80% Relative Humidity
  • Power Consumption Less than four (4) Watts per mic

Vaddio 999-8800-000
TRIO Audio Bundle System A - Breakout Interface with TRIO Acoustic Echo Canceling Microphones

OUR PART #  999-8800-000

Product Information:

Vaddio's 999-8800-000 is a TRIO Audio Bundle System A that includes the TRIO I/O Interface and two Ceiling Mic Arrays - the System A is a professional audio conferencing solution for medium size rooms. This version comes with a pair of white ceiling microphones.

The Vaddio™ TRIO Mic I/O interface enables the TRIO Acoustic Echo Canceling Microphones to be used with any professional audio mixer. By connecting the TRIO Ceiling or Table Mics to the TRIO Mic I/O interface and instantly you can make any mixer capable of Acoustic Echo Cancellation for use in conferencing applications.

By pairing the TRIO Mics with the TRIO Mic I/O interface to produce four (4) standard, balanced line level output channels and simply connect the signals to the room audio mixer. Connecting a single echo canceling reference channel from the room mixer to the TRIO Mic I/O completes the interface with any audio mixer.

What's in the 999-8800-000 Box:

  • One (1) TRIO MIC I/O Interface
  • Two (2) TRIO Ceiling Mic Arrays (White)

999-8800-000 Features:

TRIO Mic I/O Interface:

  • Interface Device between TRIO SmartMICs and ANY professional conferencing mixer
  • Compatible with TRIO Table and Ceiling Mic Arrays
  • Connect up to four SmartMICs
  • Allows for 12 microphones all with independent echo cancellation and internal DSP

The TRIO Ceiling Mic Array:

  • Small 2.5” (63.5mm) Mic Array blends into the room
  • 360º coverage pattern created with three (3) mic elements
  • Includes a plenum safe interface box, tile support brace and an adjustable 36” long cable to the microphone array head.
  • The TRIO Ceiling Mics (mic and cable) available in black and white.

999-8800-000 Specifications:

TRIO Mic I/O Interface:

  • Audio Specs Frequency Response: 20 HZ to 20KHZ, Dynamic Range: >90dB, THD + Noise: < 0.02%
  • Line Outputs Four (4) 3-Pin Balanced, Line Level Outputs
  • AEC Reference Input One (1) 3-Pin Balanced, Line Level Input
  • TRIO Mic Ports Connectors: Four (4) RJ 45-F, Proprietary Interface with audio, power & control, 100’ (30.48m) Cat-5 cable distance
  • Power Supply 18 VDC, 2.75 Amp, Positive Center
  • Power Consumed Maximum of 40 Watts
  • Operating Temp. 32° to 104° F (0° to 40° C) / 20% to 80% Relative Humidity
  • Dimensions / Weight 8.375” (212.7mm) W x 1.72”” (43.7) H x 6.0” (152.4mm) D / 1.45 lbs. (0.657708956434 kg)
  • Accessories Included: Power Supply, Five (5) 3-Pin 5.0mm Phoenix-type Connectors
  • Opt. Accessories Optional: Rack Mount Kit 1sp: 998-6000-004

The TRIO Ceiling Mic Array:

  • Audio Specs Frequency Response: 20 HZ to 20KHZ, Dynamic Range: >90dB, THD + Noise: < 0.02%
  • Microphones Three unidirectional cardioid elements per device, Frequency Response: 100-12kHz, Max Input Level: 115dB/SPL
  • Signal Processing Acoustic Echo Cancellation, Noise Reduction, Microphone Gating and Automatic Gain Control
  • TRIO Mic Ports Connectors: One(1) RJ 45-F, Proprietary Interface with audio, power and control up to 100’ (30.48m) Cat-5 cable distance
  • Dimensions TRIO Ceiling Mic: 2.5” (63.5mm) Diameter Sphere, Trio Table Mic: 7”(177.8mm) Diameter x 1” (25.4mm) Tall
  • Weight TRIO Ceiling Mic: 0.113 lbs., TRIO Table Mic: 0.472 Lbs. (0.214 kg)
  • Operating Temp. 32° to 104° F (0° to 40° C) / 20% to 80% Relative Humidity
  • Power Consumption Less than four (4) Watts per mic
