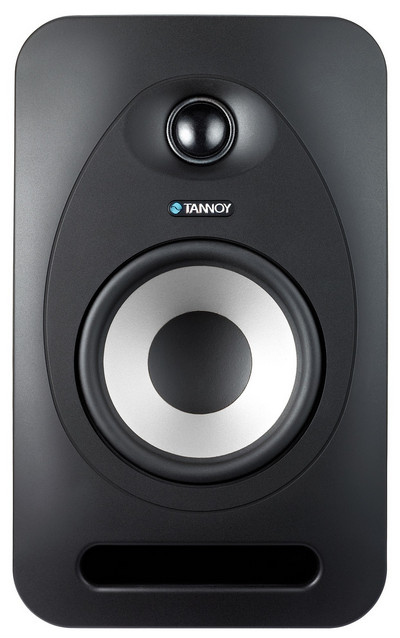

Tannoy REVEAL 802
8" Active Monitor


Mixing bass-heavy hiphop or electronic music?  Tannoy's Reveal 802 has you covered.
Learn More
Our Price: $249.99
List Price: $374.99
You save 33%!
Write the first review.
Tannoy REVEAL 802
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Mixing bass-heavy hiphop or electronic music?  Tannoy's Reveal 802 has you covered.  Make no mistake, this is the ultimate near-field monitor for Low-End lovers, resting on decades of experience in loudspeaker research.

The custom 8" woofer and 1" tweeter tell you exactly what is going on in your mix through the finely tuned active crossover filter.  Combine this with a 100 watt bi-amp module and you get rock-solid bass at any volume.

Custom tweaked by Tannoy's in-house speaker guru, Dr. Paul Mills, the active crossover filters of Reveal 802 have absolutely impeccable timing.

This produces the ultimate sweet spot so that you can move around in your workspace without losing the stereo imaging of your mix – as well as invite people to sit in with you during mixing sessions.

The Reveal 402 is great for use in working on your mixes and for listening to your favorite music.  With the Aux Link, setting up has never been easier.  Use the included mini jack cable to plug into your favorite music player and link your monitors for an instant stereo setup – no need for external interfaces.

Tannoy REVEAL Features (Front):

  • 1" soft done "Poke-Resistant" tweeter
  • 8" custom high-efficientcy LF woofer
  • Accurately tuned front-firing bass port that allows for near wallplacement and ensures optimal LF performance.

Tannoy REVEAL Features (Rear):

  • Balanced and unbalanced inputs for maximum flexibility
  • Plug in your phone/tablet for instant listening gratification
  • Adjust volume and EQ to match your listening environment
  • 100 Watt Bi-Amp module and active crossover filter ensures maximum powerand tonal clarity
  • Rubber padded base for acoustical isolation

Tannoy REVEAL Specifications:

  • Frequency Response: 42 Hz -43 kHz
  • Max SPL: 114 dB
  • HF: 1" Soft Dome (25 mm)
  • LF/Mid Range: 8" (200 mm)
  • Bi-amp Output Power, RMS:
    • Power Output: 100 Watts
    • LF/Mid Range: 75 Watts
    • HF: 25 Watts
    • THD: < 0.4 %
  • Input Types and Impedances:
    • Balanced: XLR, 20 kOhm
    • Unbalanced: 1/4" Jack, 10 kOhm
    • AUX Link: Mini Jack, 10 kOhm
    • AUX Link Output: Mini Jack
  • HF EQ Settings: -1.5 dB HF Cut / Neutral / +1.5 dB HF Boost
  • Crossover Frequency: 1.8 kHz
  • Low Frequency Alignment: Optimized Front Port
  • Cabinet Dimensions: 15.4" H x 10" W x 11.8" D (390 x 254 x 300 mm)
