Brainstorm Electronics DCD-12
Word Clock Distributor

OUR PART #:  DCD12

An excellent companion to the Brainstorm DCD-8 using the same exceptional jitter reduction technology...
Learn More
Our Price: $1,375.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Brainstorm Electronics DCD-12
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

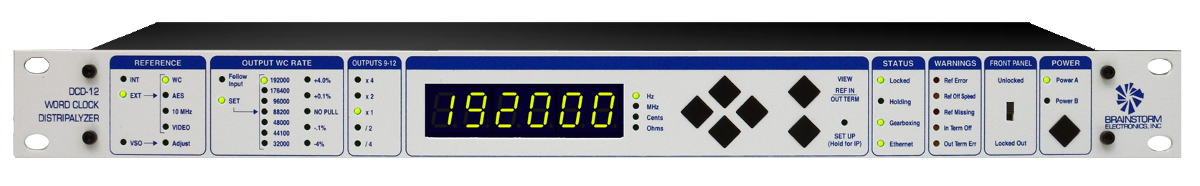

An excellent companion to the Brainstorm DCD-8 using the same exceptional jitter reduction technology, the DCD-12 from Brainstorm Electronics allows you to distribute Word Clock through its 12 BNC outputs.

It can provide word clock at frequencies up to 192KHz locked to its high precision internal crystal or locked to an external reference such as WC, Video Sync (all standard HD and SD rates), AES31, S/PDIF, 10 MHz from GPS or Rubidium clock. The rate of the reference (input) is automatically measured and "learned" while the output rate can be set to be identical or independently. Ethernet is included to remotely monitor and set parameters and update firmware.

Easy to configure yet versatile and powerful, the DCD-12 is a complete word clock distribution solution that can genlock to a number of different references.

DCD-12 Features:

  • WC Distributor:
      -  1 WC input / 12 WC outputs
      -  Distributed clock is internally regenerated
  • WC Generator:
      -  Extremely Low-Jitter Clock with all standard rates, up to 192K
      -  External references: WC, Video Sync (all standard HD and SD rates), AES31, S/PDIF, 10 MHz from GPS or rubidium clock.
      -  Outputs 9-12 feature a frequency multiplier/divider: x2, x4, /2, /4.
      -  Supports simultaneously .1% and 4% pull up/down rates
      -  VSO is available
  • Analyzer: Output termination status display
  • Redundancy: When locked to an external signal, in the event of a source failure, the DCD-12 switches automatically to its internal crystal to continue generating at the last known frequency until  the reference reappears.
  • Power: The DCD-12 has 2 power supply inputs for double redundancy. If one power supply fails, the olther one takes over without any interruption.
  • References: WC, AES, 10MHz (GPS, rubidium clock), Video (HD or SD)
  • Gearboxing: output rate can be different than the rate of the reference
  • Pull up and pull down rates available as well as VSO (+ or - 200 cents)
  • Ethernet: remotely set and monitor parameters + load firmware updates

DCD-12 Specifications:

Input:

  • 1x BNC connector
  • Accepts WC, AES, 10MHz (GPS or rubidium clock) and Video Sync (HD and SD)
  • Outputs: 12x Word Clock BNC
  • Jitter reduction: Jet PLL
  • WC Generator:
      -  Generates any rate from 32KHz to 192KHz
      -  Pull up/down: .1% and 4%
      -  VSO (+ or - 200 cents)
  • Analyzer:
      -  Input frequency counter
      -  Output termination (DC)
  • Connectors:
      -  Reference Input: BNC (x 1)
      -  Word Clock Outputs: BNC (x 12)
      -  Ethernet: RJ45 jack (x 1)
      -  Power: 4 pin circular (x 2)
  • Power:
      -  12VDC @ 5A
      -  Redundancy: two separate supplies can be connected to the 2 separate power inputs. If one supply fails, the other takes over and an error is reported. The faulty supply can be swapped without having to power down.
  • Dimensions: 19” x 8.125” x 1.75” (48.26 cm x 20.64 cm x 4.45cm)

Click to download

Add to Cart

We're sorry, only of this item available



Call a Sales Pro at 800-356-5844 for more information
