Symetrix ARC-SW4E Adaptive Remote Control Wallplate for Symnet, 4 Switches

OUR PART #: ARC-SW4E MFR #: 80-0079

Copied to clipboard

The Symetrix ARC-SW4e is a modular remote control wall panel with four switches that are programmable as momentary, latched or radio buttons. ...Read more

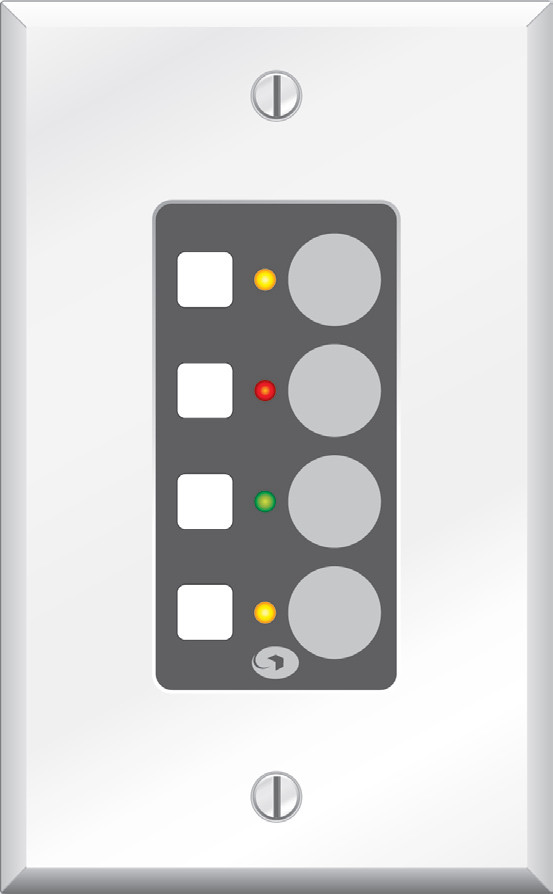

Symetrix ARC-SW4E Adaptive Remote Control Wallplate For Symnet, 4 Switches Image 1
Symetrix ARC-SW4E Adaptive Remote Control Wallplate For Symnet, 4 Switches
Our Price: $329.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
More on Order! Item usually available to ship in 5-9 Business days. Place your order now to reserve your place in line. Call our Sales Pros at 800-356-5844.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Symetrix ARC-SW4e is a modular remote control wall panel with four switches that are programmable as momentary, latched or radio buttons. ARC-SW4e provides simple control over mutes, source selection and preset triggering. Corresponding tri-color LEDs provide user feedback. LEDs may be linked to buttons, or, LEDs and buttons may be programmed independently. Symetrix DSP software performs all control assignments, including button and LED functionality, parameter limits and firmware version upgrades.

A single channel RJ45 connection provides power and data to the ARC-SW4e. ARC-SW4e has an “idle” mode option for light-sensitive environments like theaters. Hardware lockout pins accomodate an installer supplied key switch. Furnished with a standard white single gang Decora® faceplate and splash resistant overlay. The ARC-SW4e fits in standard US wall boxes (sold separately) for in-wall or surface mount applications.

One true test of a sound system is how easily end-users can operate it. With that in mind, Symetrix has developed the Adaptive Remote Control (ARC) series of wall panels for easy user interaction with Symetrix DSP systems. These modular controls handle source selection, level control, paging, room combining, and much more. Flexible, modular, and truly adaptive, they can be mixed and matched within a venue to provide each room with an appropriate command set, tailored specifically to that environment. An important consideration when evaluating external control options is their ease of integration with the DSP. With most projects, time and money are key factors. Third-party control systems add expense and can require extensive expertise to implement. The ARC series of control panels are all programmed by the system designer from within the same software applications used to configure the DSP hardware. All control parameters are stored in the DSP hardware as part of the “site” file so they can be easily accessed and modified should the user’s needs change. Their simple, straightforward appearance belies the sophisticated control the ARCs offer. They communicate over RS485, a fast and flexible long-distance communications protocol.

Symetrix ARC-SW4E Features:

  • Programmable switches. Momentary, latched or radio buttons with tri-color LEDs
  • Don’t mess with me. Hardware lockout pins accommodate an installer supplied key switch
  • Like a train station. Power and signal arrive and depart via CAT-5/6
  • You don’t need sunglasses. Supports “idle” mode for light-sensitive environments like theaters
  • What you see is what you get. Furnished with a standard, white,single gang Decora faceplate and splash resistant overlay

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Documents

Click to download
