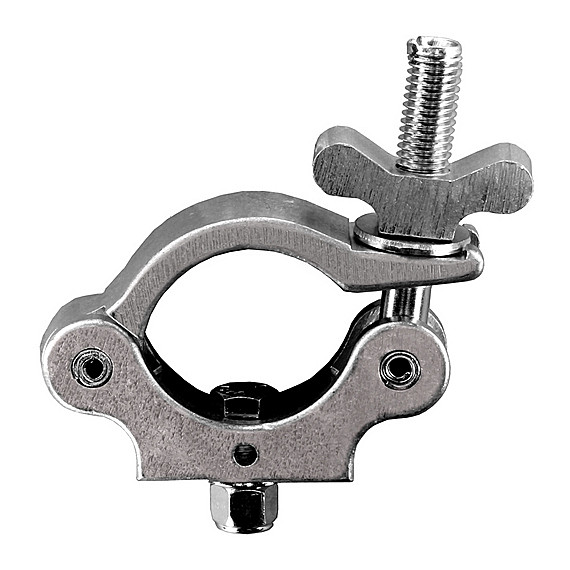

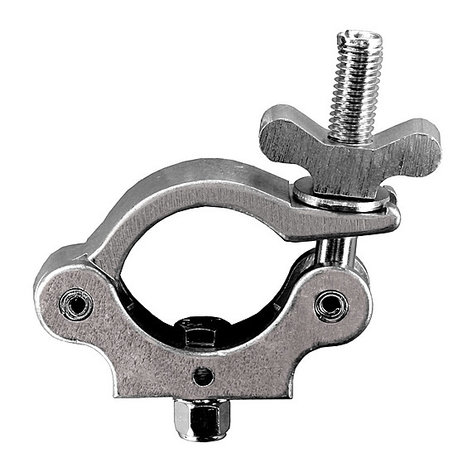

The Light Source MSCB
Mega Slim Coupler with 3/8" Hex Head in Black Anodized Finish


The Light Source's Mega Slim Coupler is a lower-profile option for smaller light fixtures.
Learn More
Our Price: $15.24
List Price: $20.50
You save 26%!
Write the first review.
The Light Source MSCB
Related Products

The Light Source's Mega Slim Coupler is a lower-profile option for smaller light fixtures.  It is half the size of their standard Mega-Coupler and weighs 30% less yet fits the same as the Mega-Coupler.

The Mega Slim will fasten from 1-1/4" pipe (1.66 OD) to 2.050 OD Truss Tube.  Has a wide wing nut for easy fastening of the coupler to the pipe or tube. Has hex pocket for 3/8" bolt.  Includes 3/8" x 1" zinc-plated bolt with nylock nut and spring washer.  The bolt does fit flush into the Coupler.

The Mega Slim Coupler is also available with a 3/8" Hex Flat Head or 1/2" Hex Flat Head countersunk Bolt.

The Light Source MSCB Mega-Slim Coupler Specifications:

  • Minimum Size: 1.25" pipe, 1.66 OD pipe
  • Maximum Siz e: 1.5" pipe, 1.90 OD pipe, 2.050"OD Truss Tube
  • Safe Vertical Working Load: 600 lbs
  • Hardware:
    • 3/8" x 1" Hex Cap Screw
    • Belleville Washer
    • Nylock Nut
  • Weight: 0.65 lbs.
