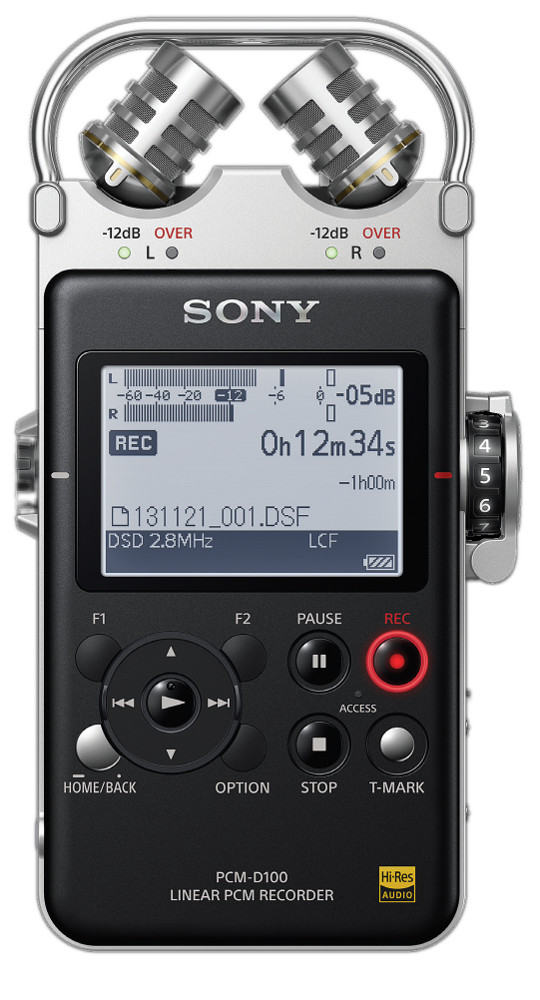

Sony PCM-D100
Portable High Resolution Audio Recorder


Our Price: $774.99
List Price: $999.99
You save 23%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The PCM-D100 is a high resolution recorder with two-position (X-Y or Wide) stereo microphones, 32 GB of internal flash memory and a SD-XC Card slot. Recording formats include linear PCM (at 192, 176.4, 96, 88.2, 48 and 44.1kHz); DSD (2.8224 MHz) and MP3 (320 and128 kbps). Additional playback support is provided for FLAC, WMA and AAC files. The D100 is constructed of lightweight metal (aluminum) and it's built rugged to withstand the demands of pro applications, plus it offers long battery life using conventional AA alkaline batteries. The recorder includes a USB high-speed port for simple uploading/downloading to/from Windows® PC or Macintosh® computers. Other PCM-D100 features include digital pitch control, dual path digital limiter, low-cut filter, Super Bit Mapping® and A-B repeat capability.


  • High Resolution Recording: Supported recording formats include DSD2.8, LPCM up to 192kHz/24 bit and MP3
  • Built-in Electret Condenser Microphones: The PCM-D100's electret condenser microphones have exceptional high sound quality. The X/Y or wide position stereo microphones are uni-directional with a flat and wide frequency response and natural sound characteristics.
  • Flexible Playback Features: The PCM-D100 includes both digital pitch control and key control for both LPCM and MP3 recordings. Digital pitch control maintains pitch while slowing down or speeding up playback speed. Key control allows changing the pitch while maintaining playback speed.
  • Simple Uploading to Computer: Conforms to the USB 2.0 Mass Storage Class Device standard.
  • Versatile Recording Functions: The PCM-D100 offers comprehensive signal processing features for location recording including a limiter and low cut filter. The PCM-D100 also includes a 5 second pre record buffer and cross-memory recording function.B repeat capability.


  • Audio Formats Supported:
    • Record: DSD, WAV and MP3
    • Playback: DSD, WAV, FLAC, MP3, WMA (Non DRM), AAC-LC (Non-DRM)
  • Built-in Mic: Electret condenser microphones. Max input level: 128 dB SPL. Frequency response 20 Hz to 20 kHz
  • Mic Input: (Stereo Mini Jack) Input impedance: 22 k ohm, Rated input level: 2.5 mV; Minimum input level: 0.7 mV
  • Line Input (Analog): (Stereo Mini Jack) Input impedance: 22k ohm; Minimum input level: 450mV; Rated input level: 2.0V
  • Line Input (Optical): Optical Digiital Input: Input level: -27 dBm to -14 dBm; Emission wavelength: 660 nm
  • Line Output (Analog): Output impedance: 220 ohms;Output level: 1.7V; Load impedance 22k ohms
  • Line Output (Optical): Output level: -21dBm to -15 dBm
  • Headphone Output: Stereo Mini Jack; Maximum output: 25 mW + 25 mW or more; Load impedance: 16 ohms
  • Frequency Response: 20Hz - 50kHz (Line In) @ DSD2.8 ; 20Hz - 45kHz (Line In) @ LPCM 192kHz/24bit
  • Sampling Frequency: DSD 2.8MHz; LPCM 192kHz/176.4kHz/96kHz/88.2kHz/48kHz/44.1kHz
  • Quantization: 16-bit LPCM, 24-bit PCM and 1-bit DSD
  • S/N Ratio: DSD 98dB or greater; LPCM 24 bit 96dB or greater
  • Total Harmonic Distortion (Line Input to Line Output):
    • DSD: 0.008% or below (1kHz, 22kHz LPF)
    • LPCM: 0.006% or below (1kHz, 22kHz LPF)
  • Wow and Flutter: Below measurable limit (less than +/-0.001%W.Peak)
  • USB: High-speed USB,mass storage class
  • Power Consumption: 0.75w
  • Power Requirements: Four AA size Alkaline batteries (supplied). Four AA NiMH Rechargable batteries (optional)
  • DC Input Jack: 6V
  • Battery Life: 25 hrs @44.1kHz/16 bit; 18 hrs @192kHz/24bit or 12 hrs @ DSD2.8
  • Memory Stick Slot: Accepts SD, SD-HC,SD-XC, Memory Stick Pro Duo and Memory Stick Pro-HG
  • Dimensions: 2 7/8"(W) x 6 1/8"(H) x 1 1/4"(D): (not including projecting parts and controls)
  • Weight: 13.9 oz (including batteries)
  • Inputs and Outputs Specifications: DC Input Jack  6V
